Starting System Diagram

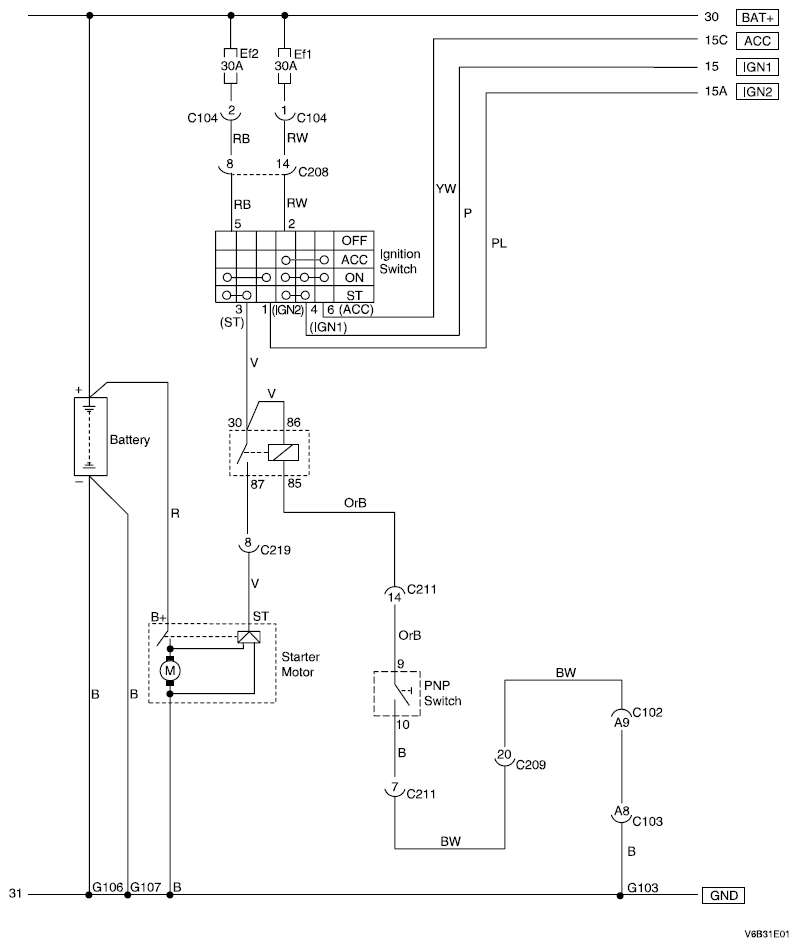

Fig 1: Starting System - Schematic And Routing Diagram

G04719141

Courtesy of SUZUKI OF AMERICA CORP.
