Power Window Circuit
Power Window Circuit:

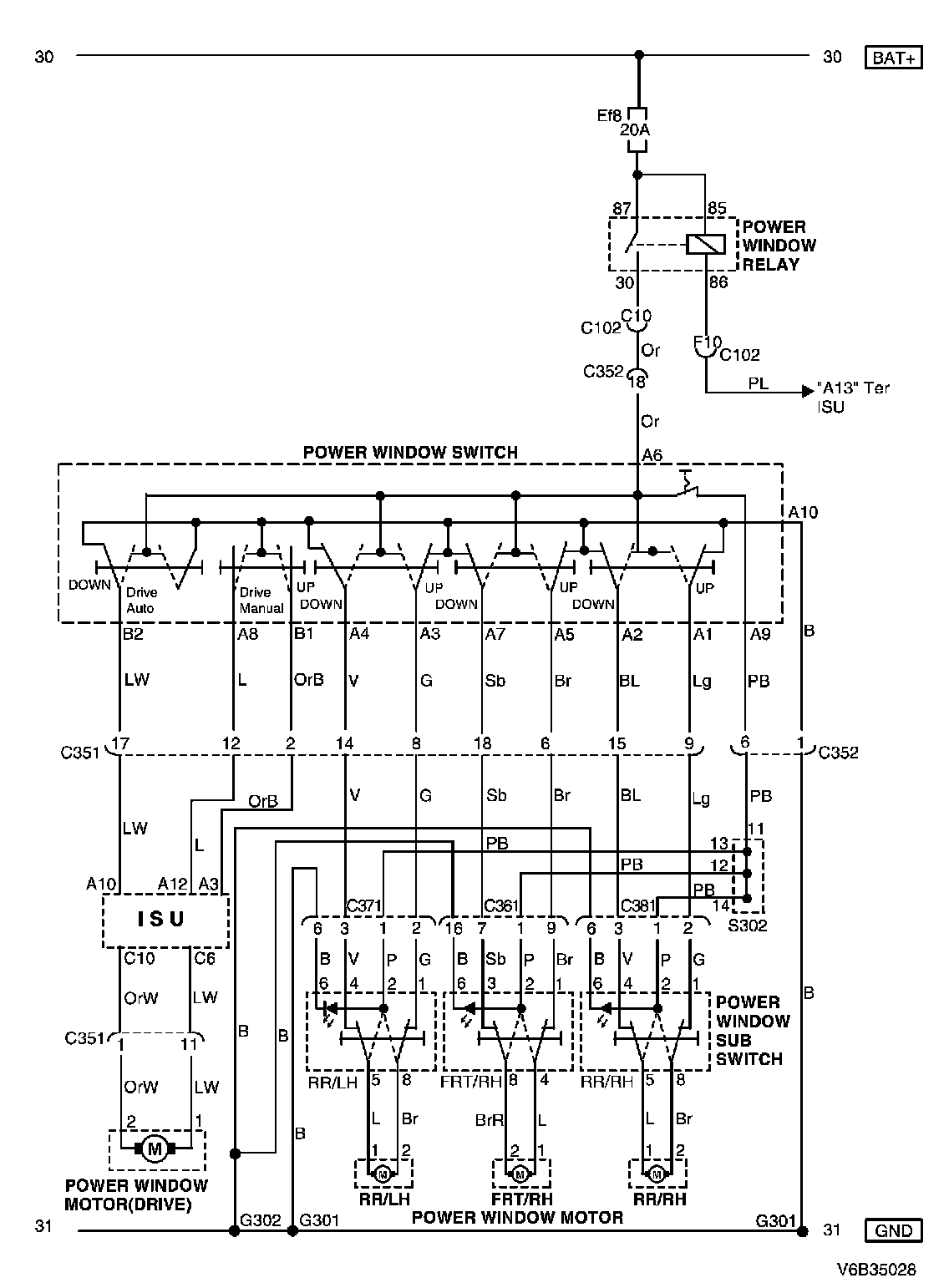

WIRING DIAGRAM
C102 - G302:
CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

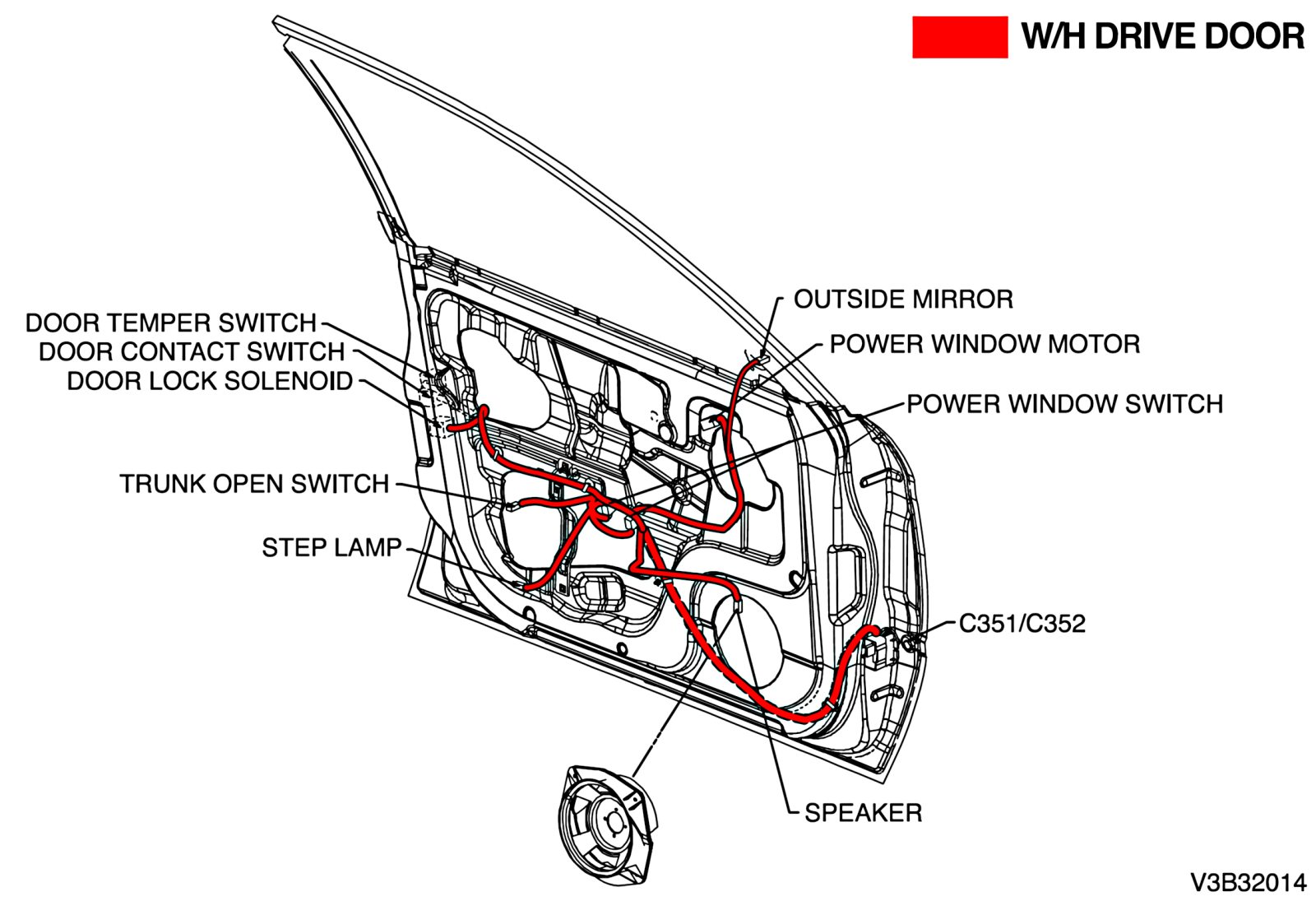

W/H DRIVER DOOR:

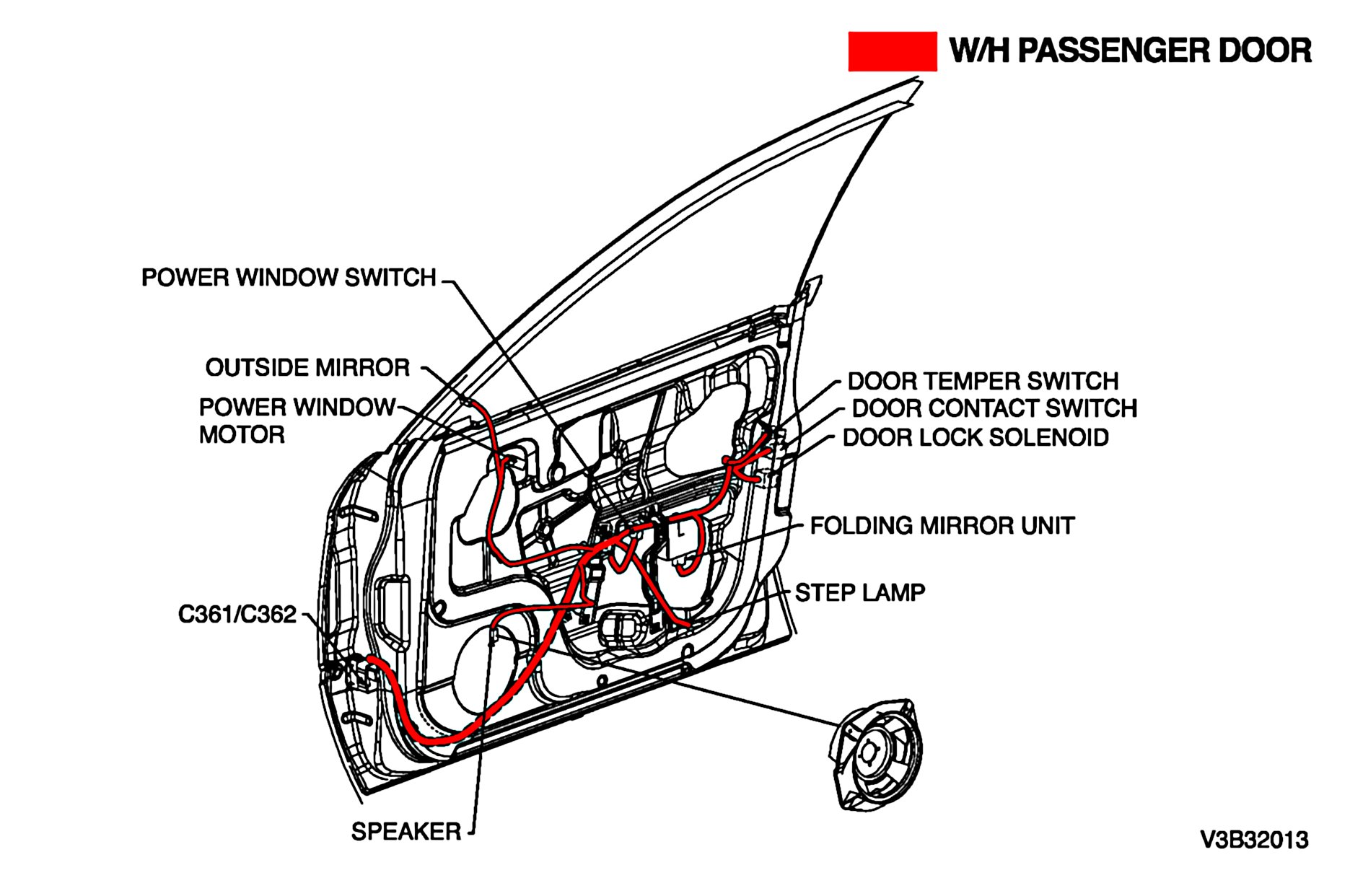

W/H PASSENGER DOOR:

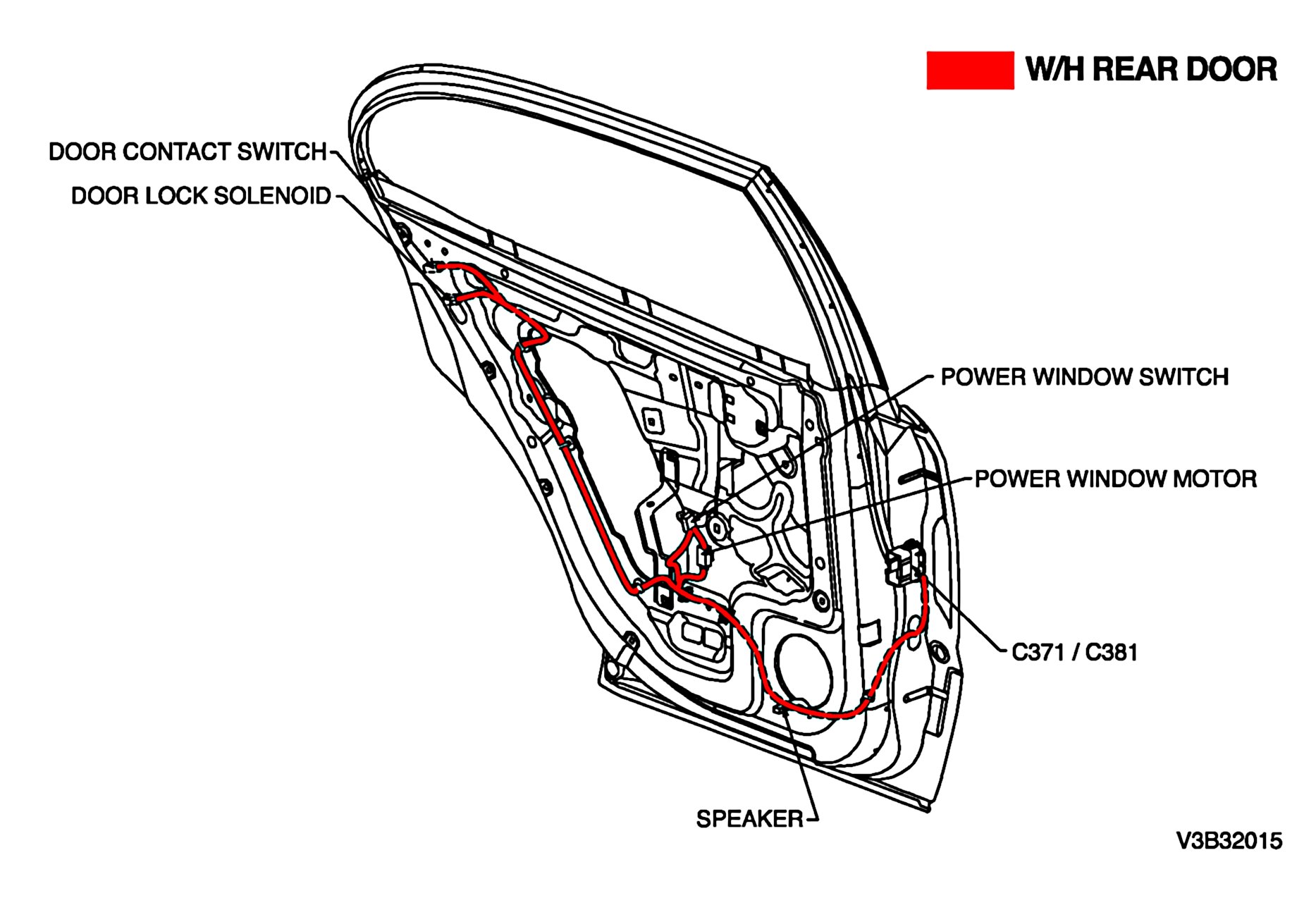

W/H REAR DOOR:
POSITION OF CONNECTORS AND GROUNDS
S302 (COLORLESS):
SPLICE PACK
