A/C Compressor Relay Control System Check

A/C Compressor Relay Control System Check

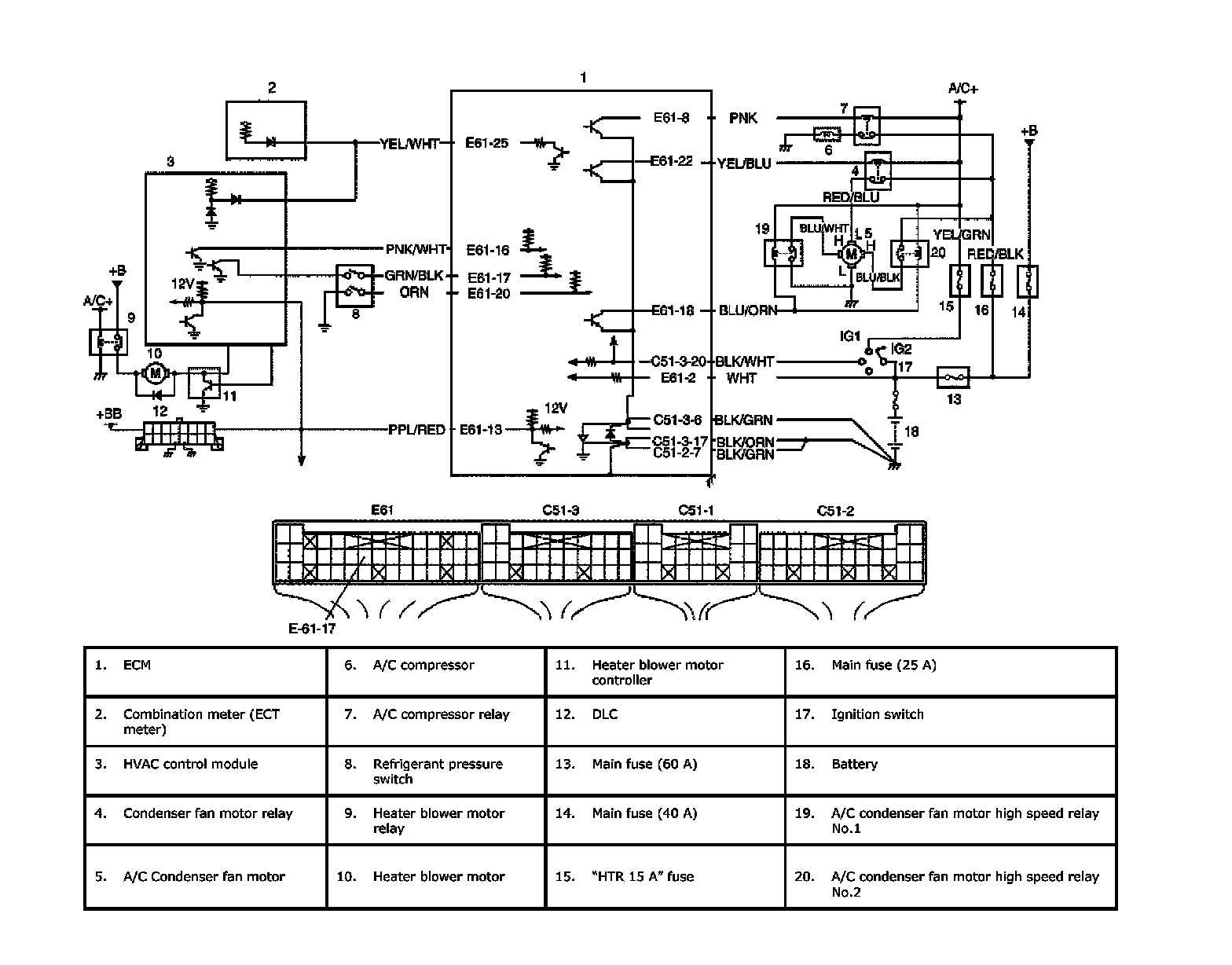

Wiring Diagram:




Wiring Diagram

Circuit Description
A/C Compressor relay is turned ON by ECM when A/C signal inputted to ECM and engine conditions are as specified.

Step 1 - 3:

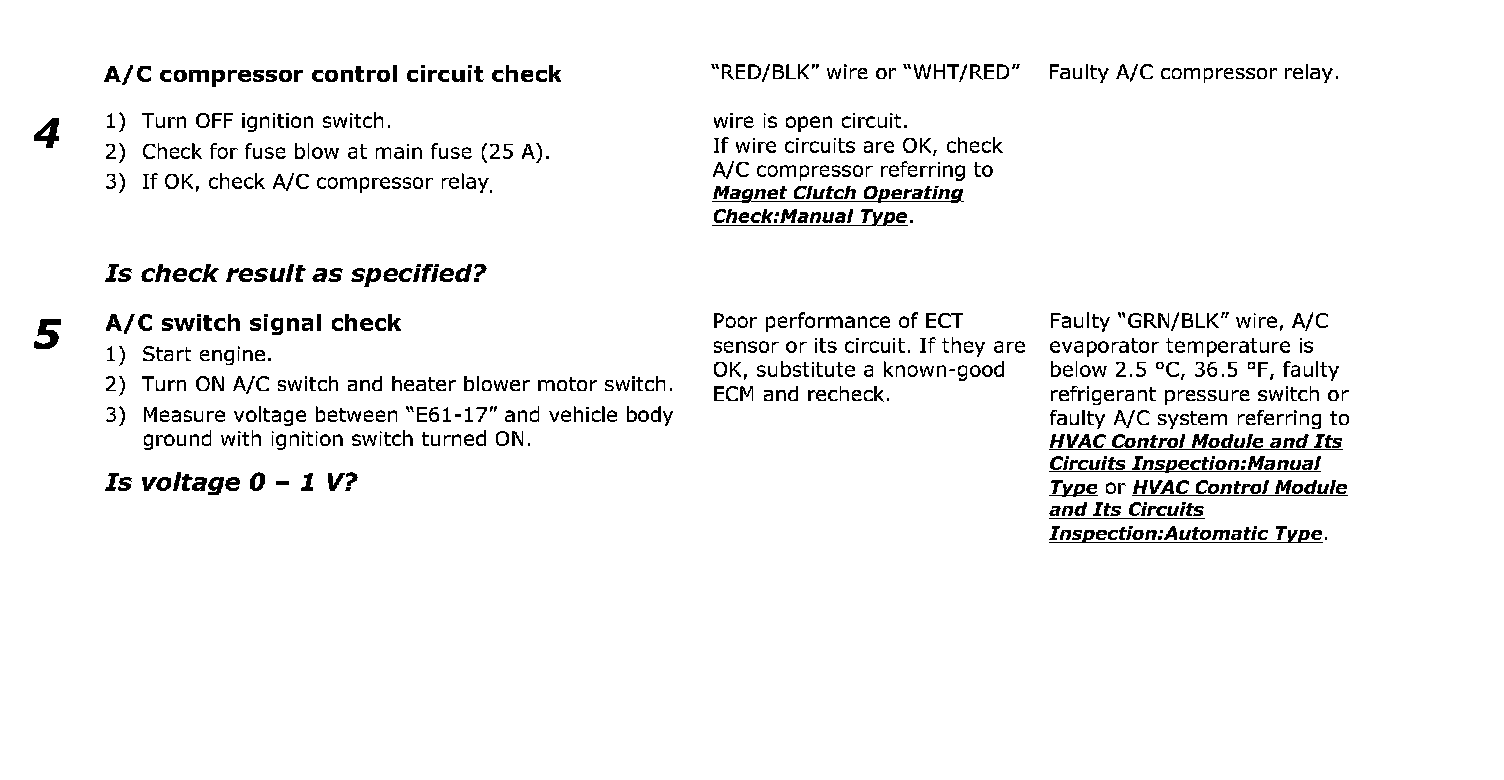

Step 4 - 5:




Troubleshooting
