Electronic Shift Control System Wiring Diagram

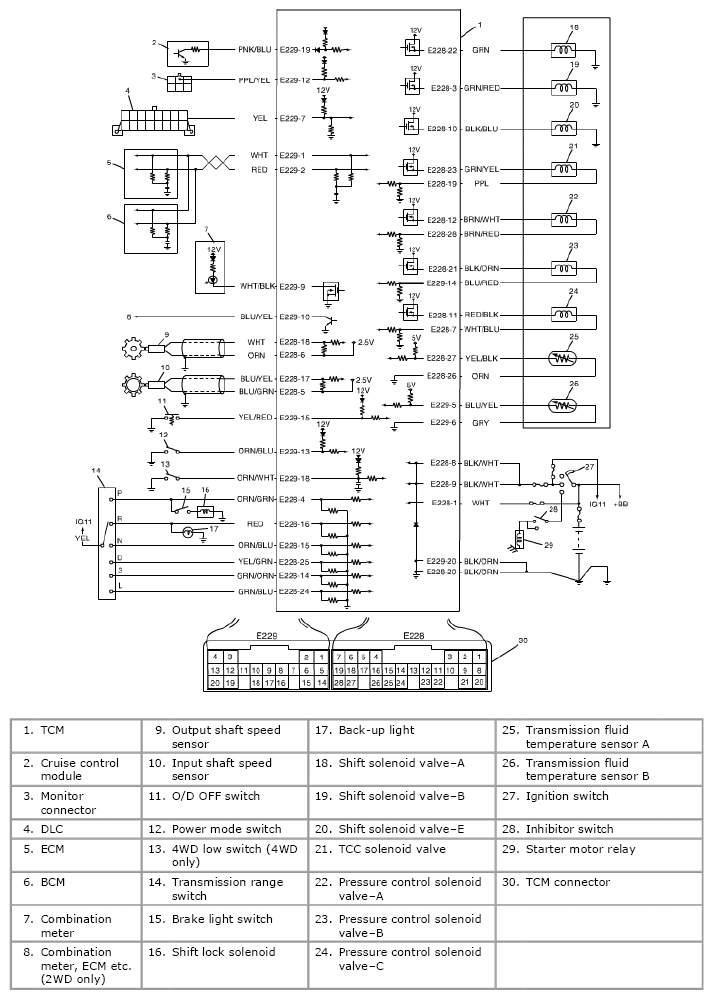

Fig 1: Electronic Shift Control System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
