System Diagram

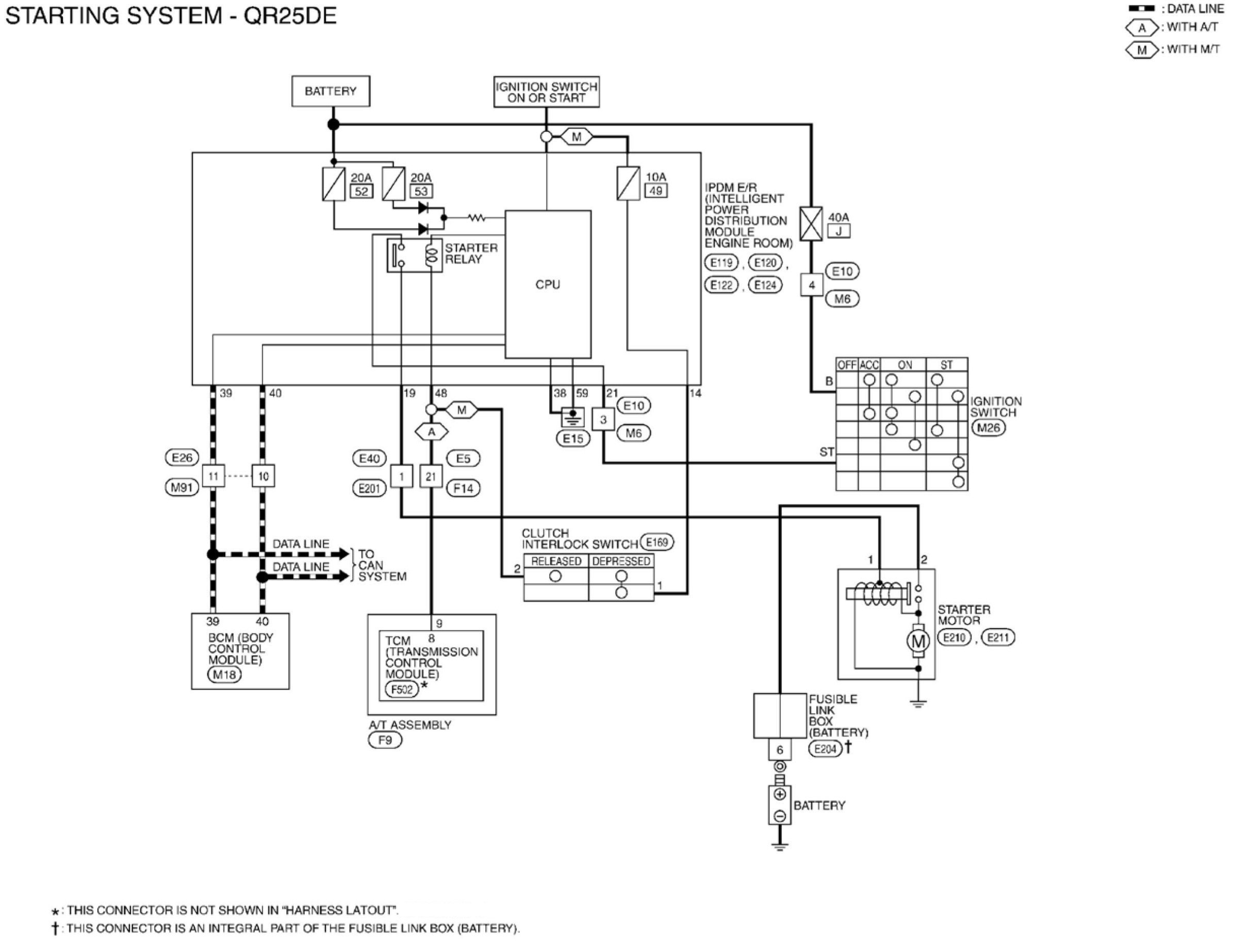

Starting System: Wiring Diagram [QR25DE]

Starting System:

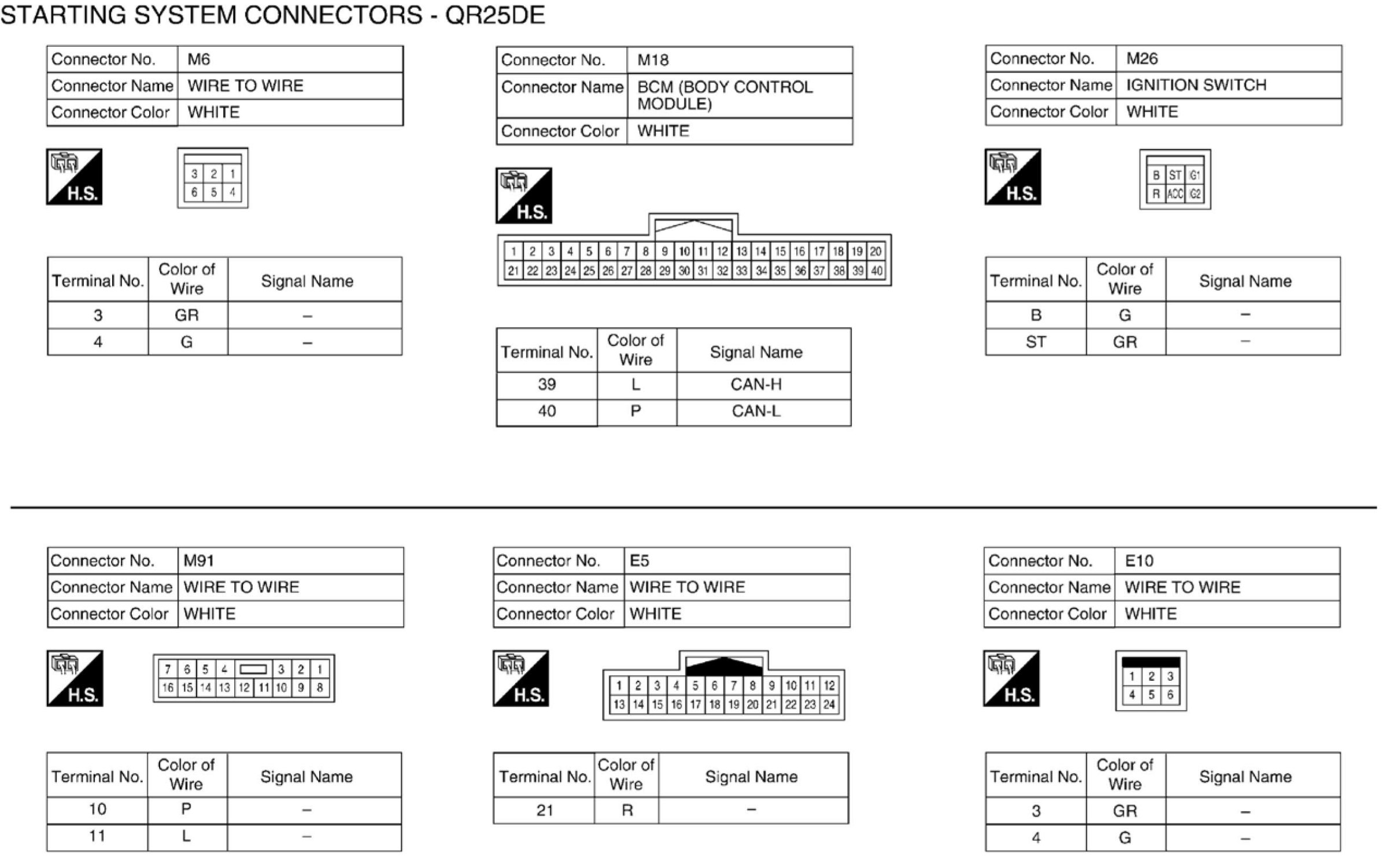

Starting System Connectors - QR25DE

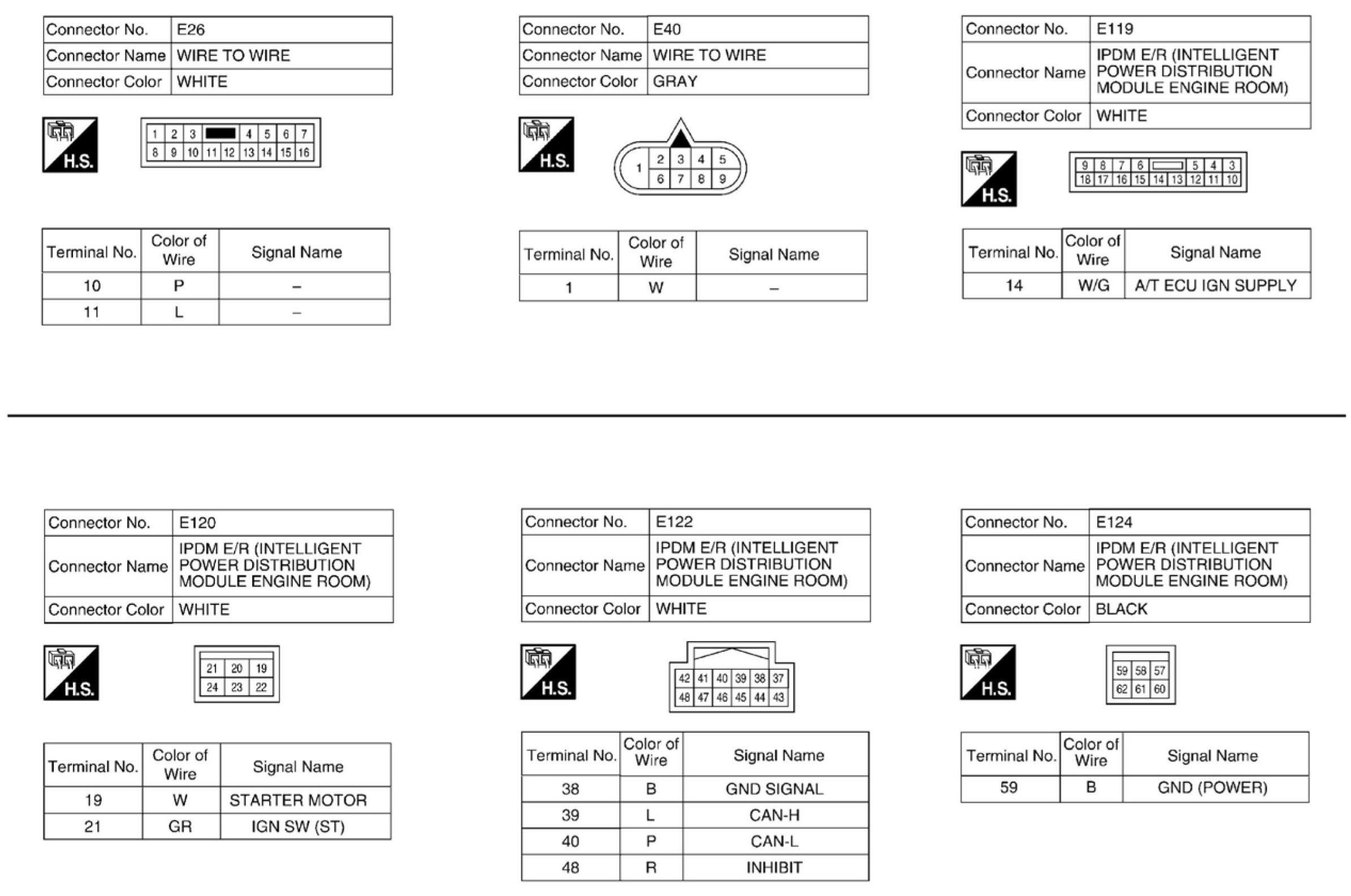

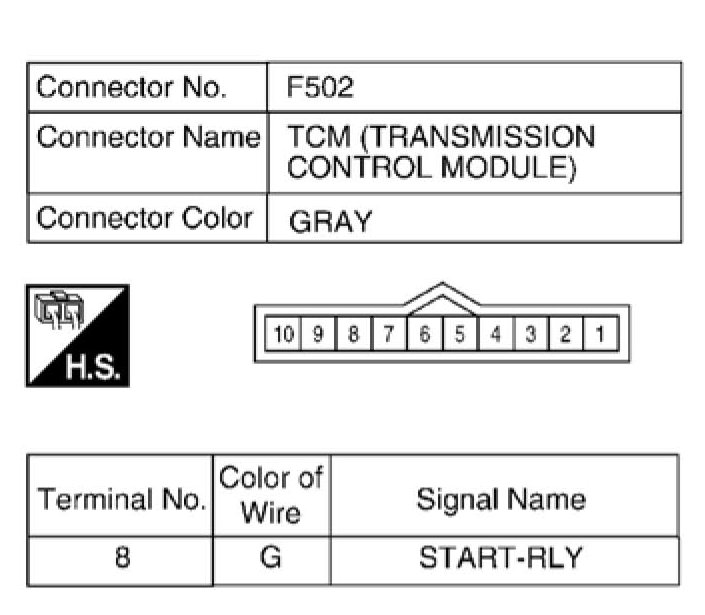

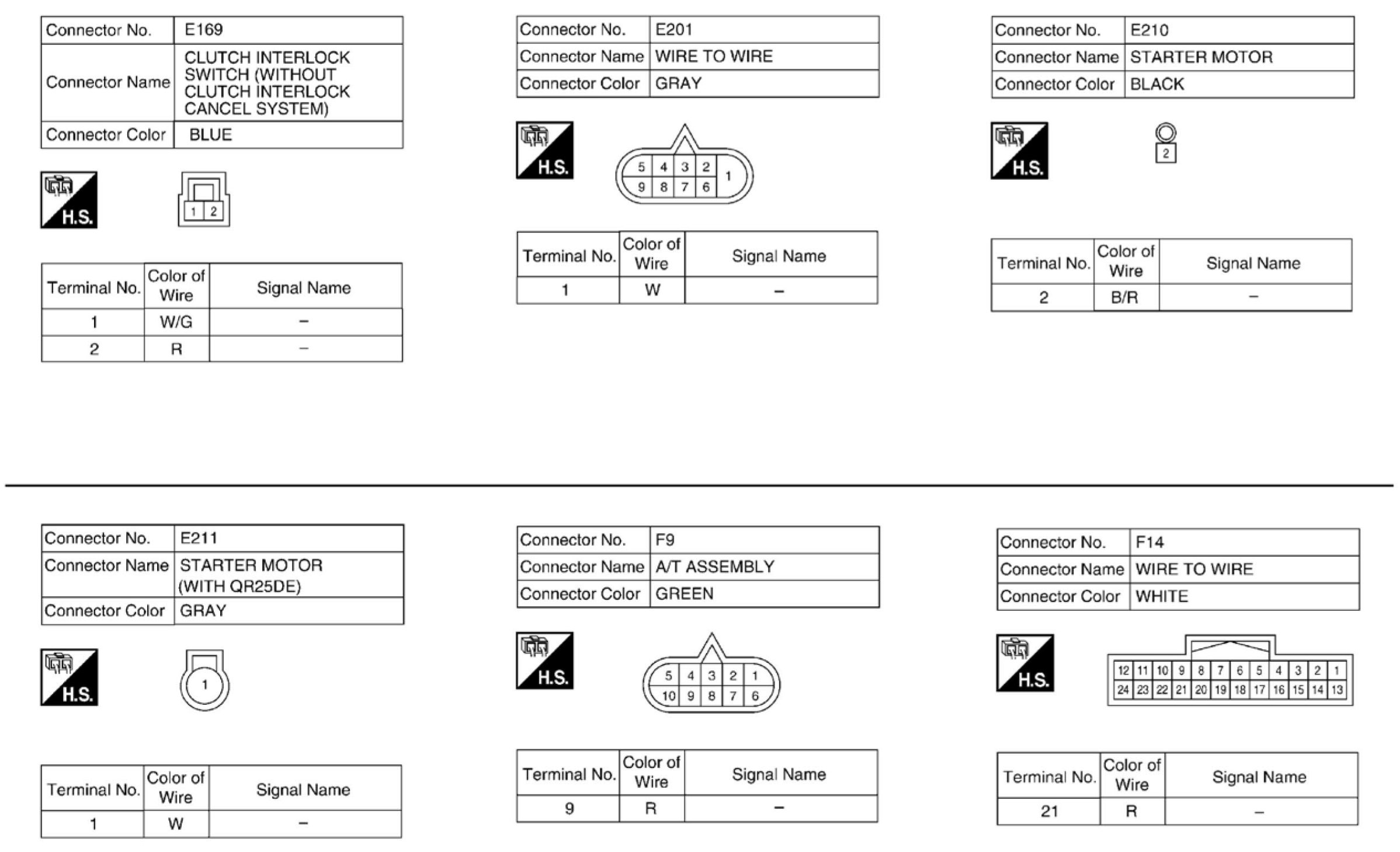

Starting System Connectors (Part 1):




Starting System Connectors (Part 2):




Starting System Connectors (Part 3):




Starting System Connectors (Part 4):
