Windows

Power Window System: System Diagram

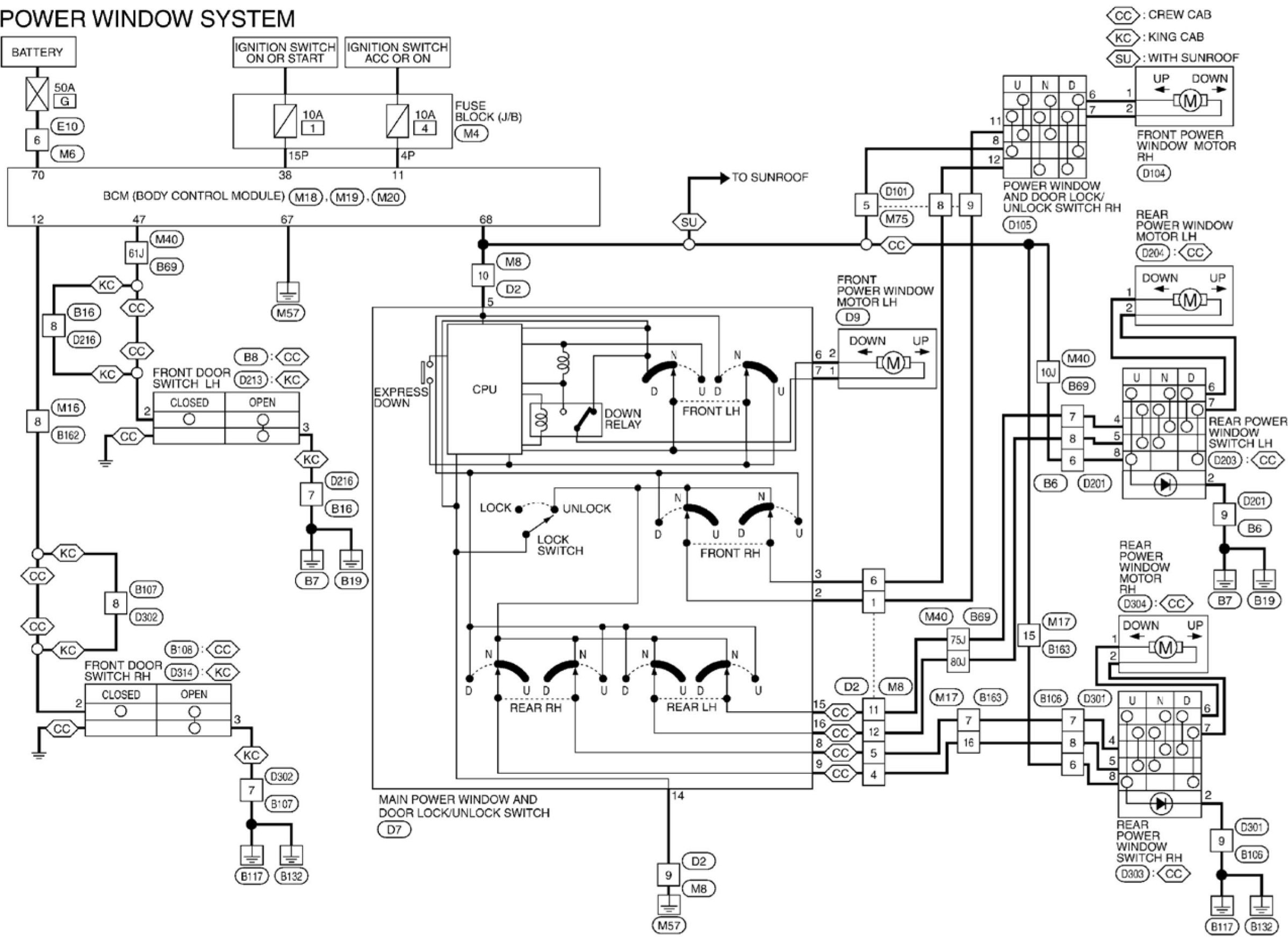

Power Window System: Wiring Diagram

Power Window System:

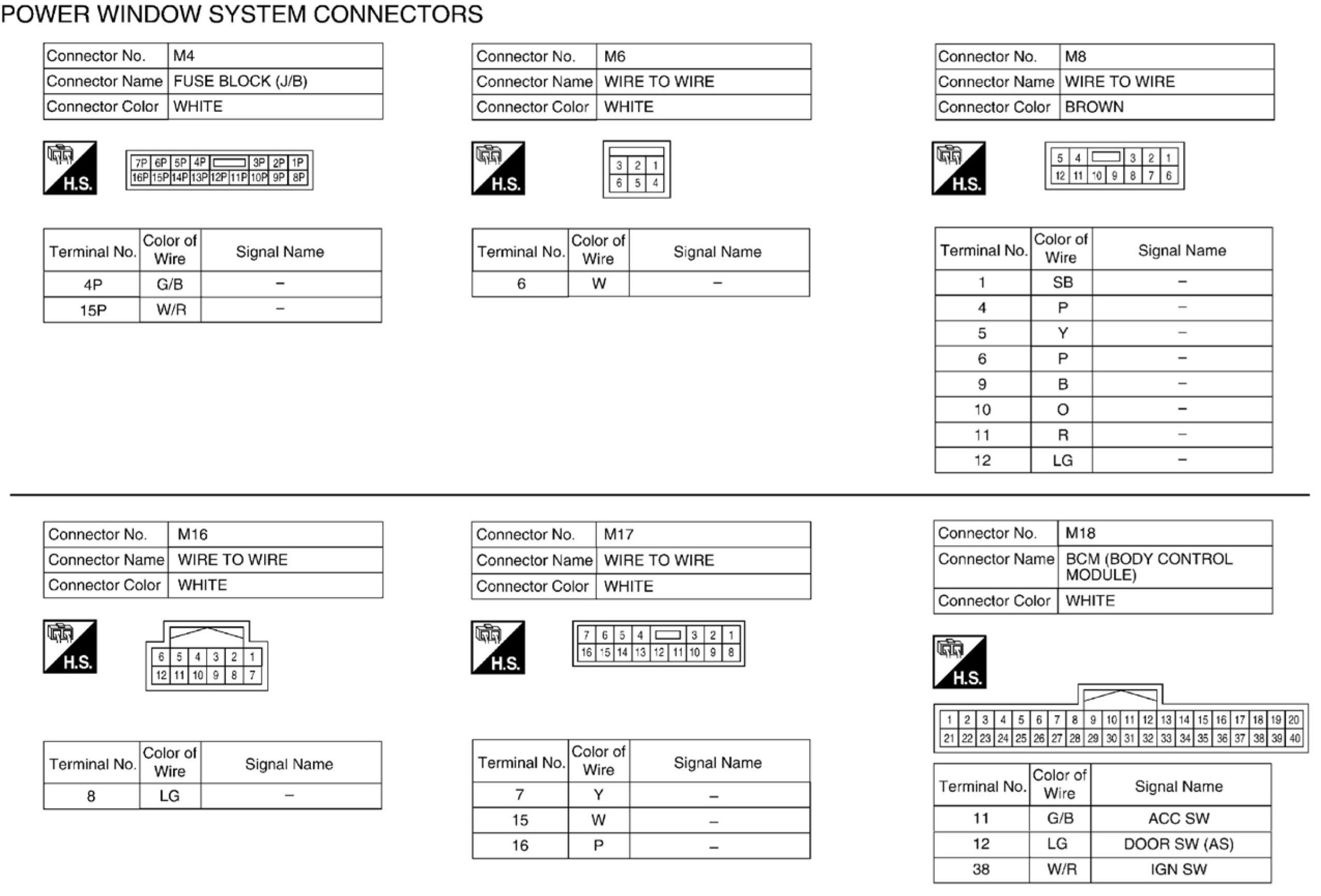

Power Window System Connectors

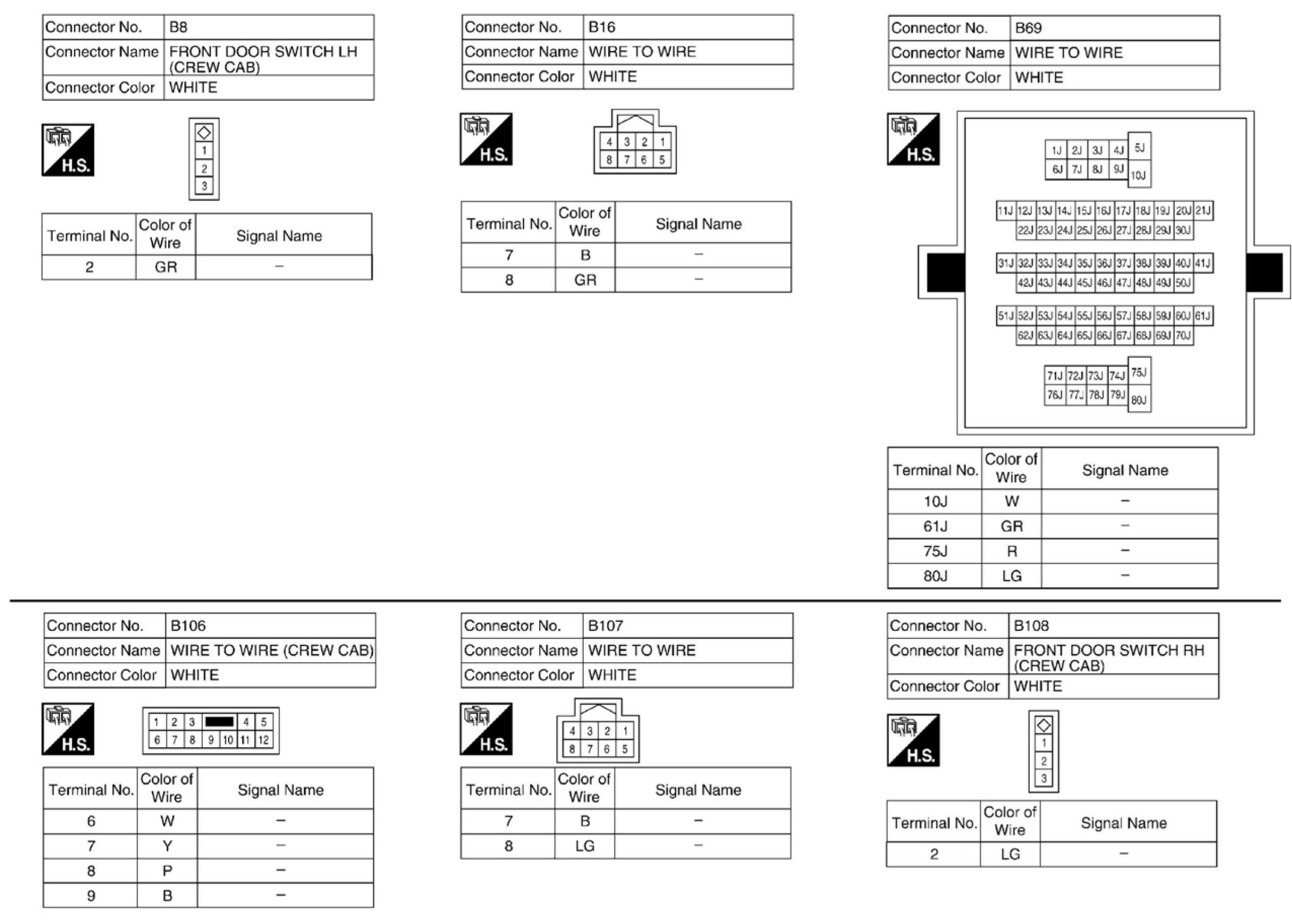

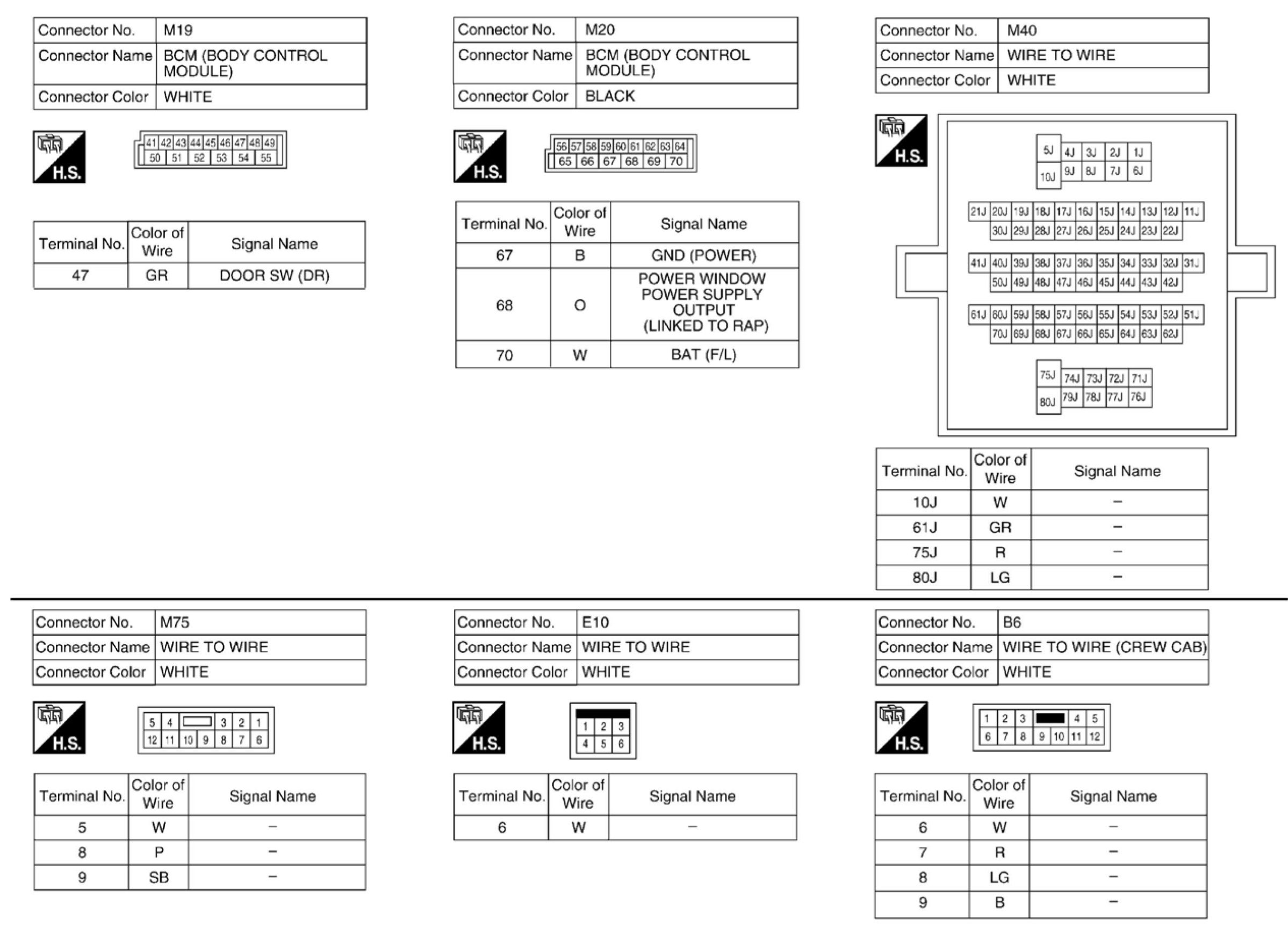

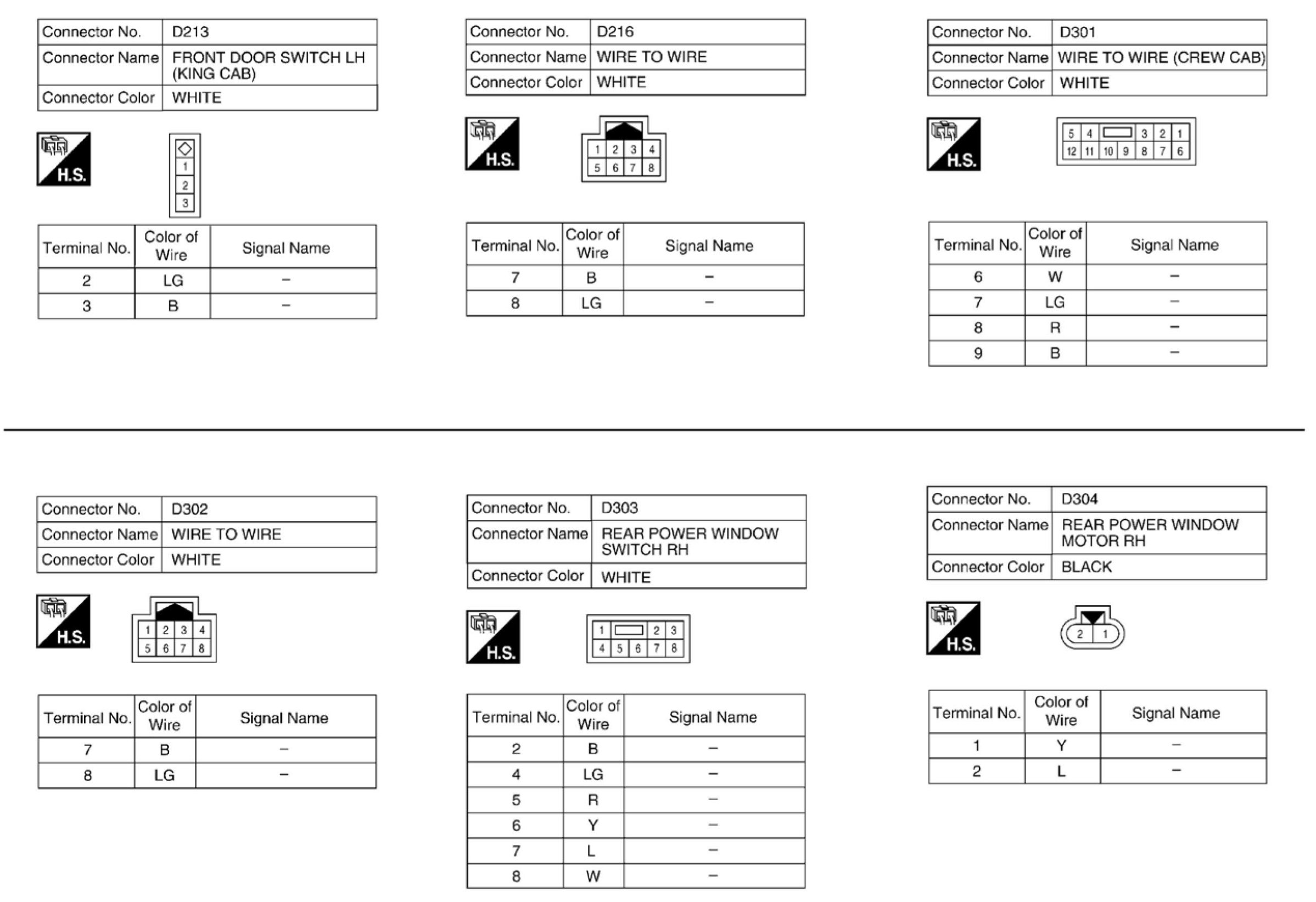

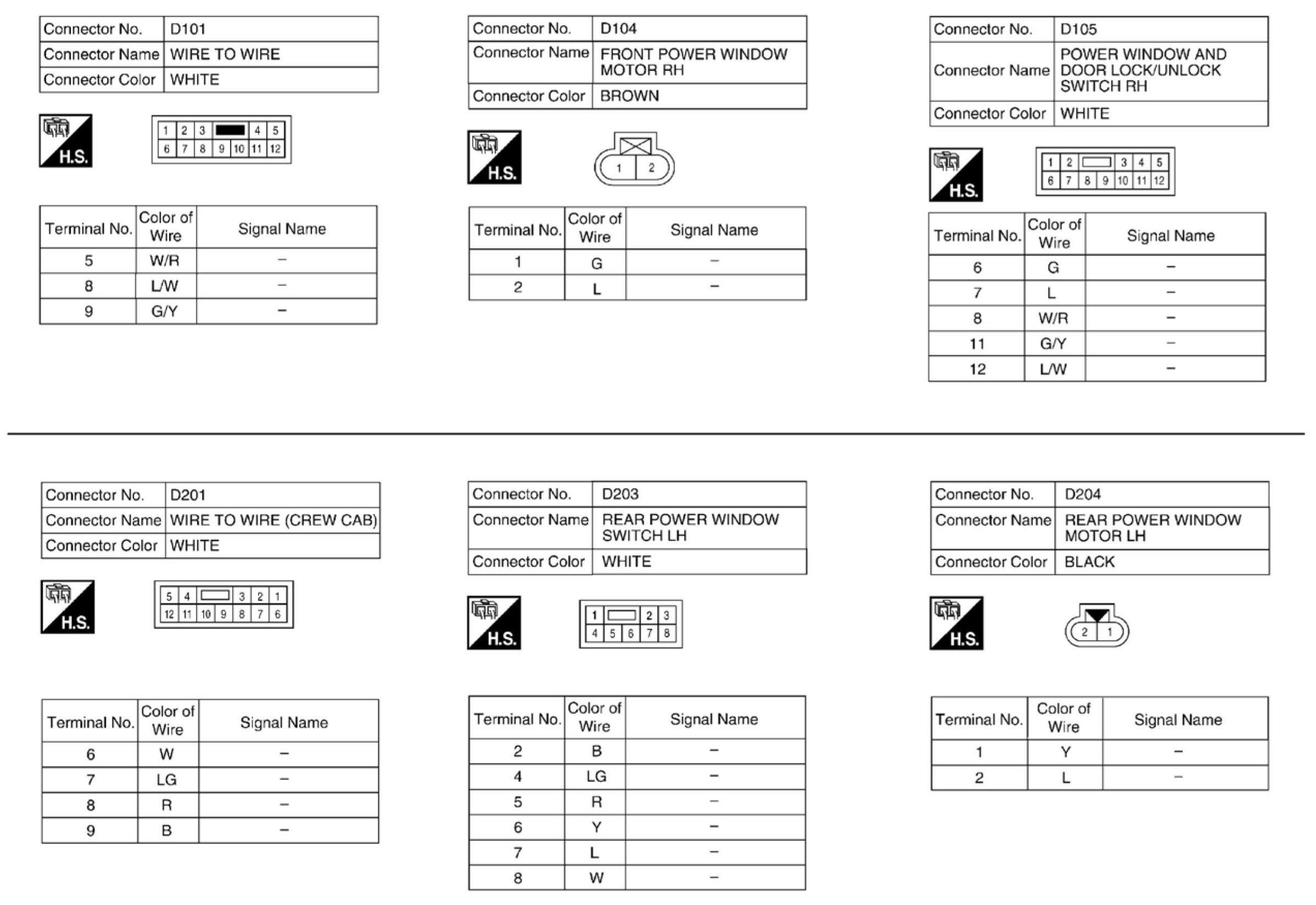

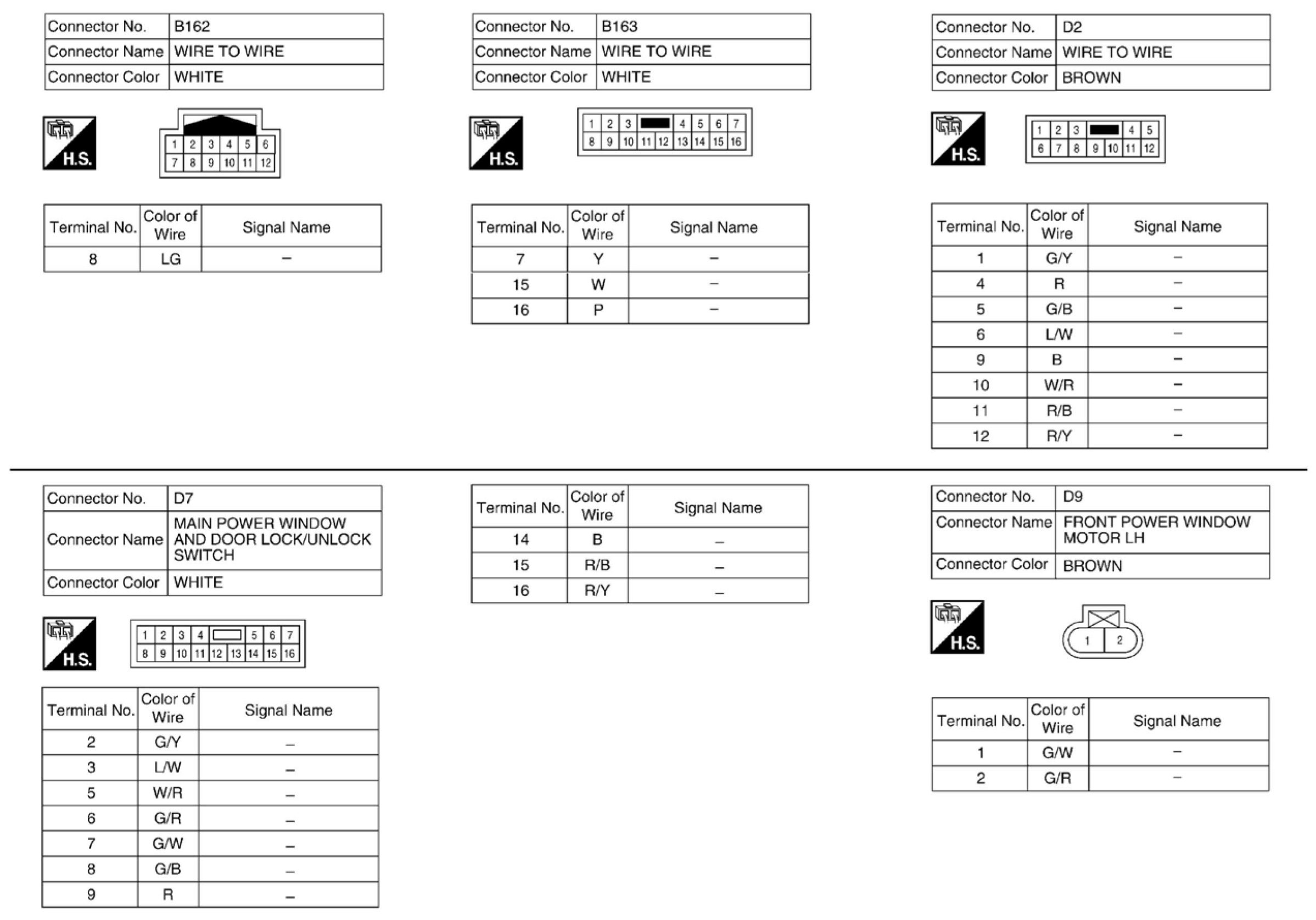

Power Window System Connectors (Part 1):




Power Window System Connectors (Part 2):




Power Window System Connectors (Part 3):




Power Window System Connectors (Part 4):




Power Window System Connectors (Part 5):




Power Window System Connectors (Part 6):

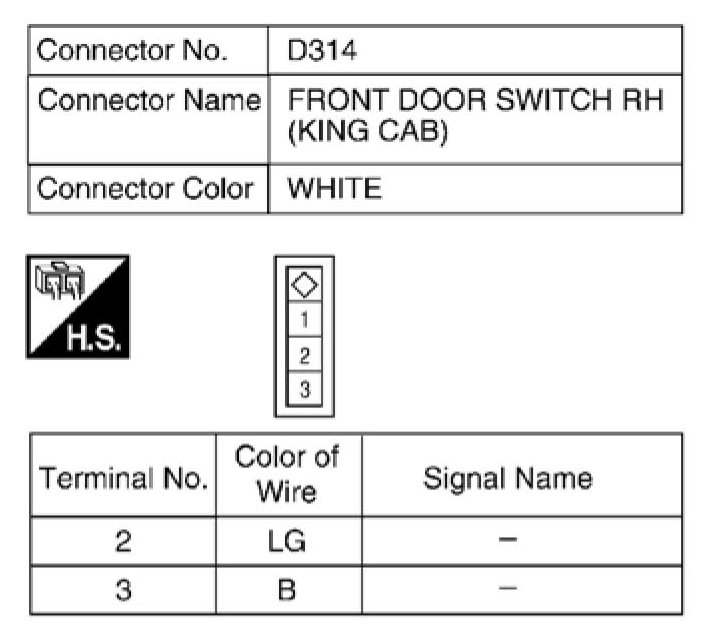

Power Window System Connectors (Part 7):
