Control Unit, Differential Lock

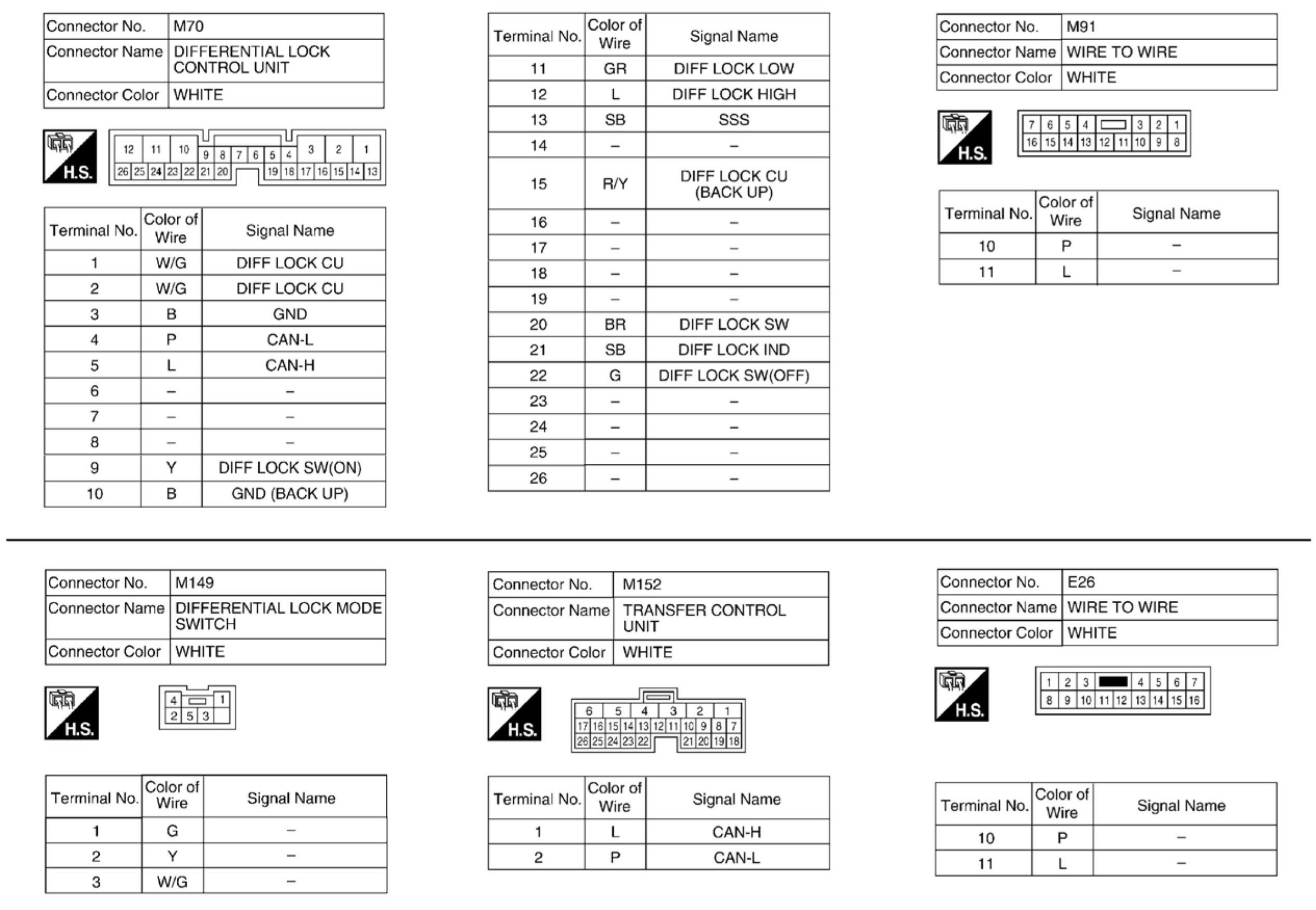

Differential Lock Control Unit: Wiring Diagram

Rear Final Drive

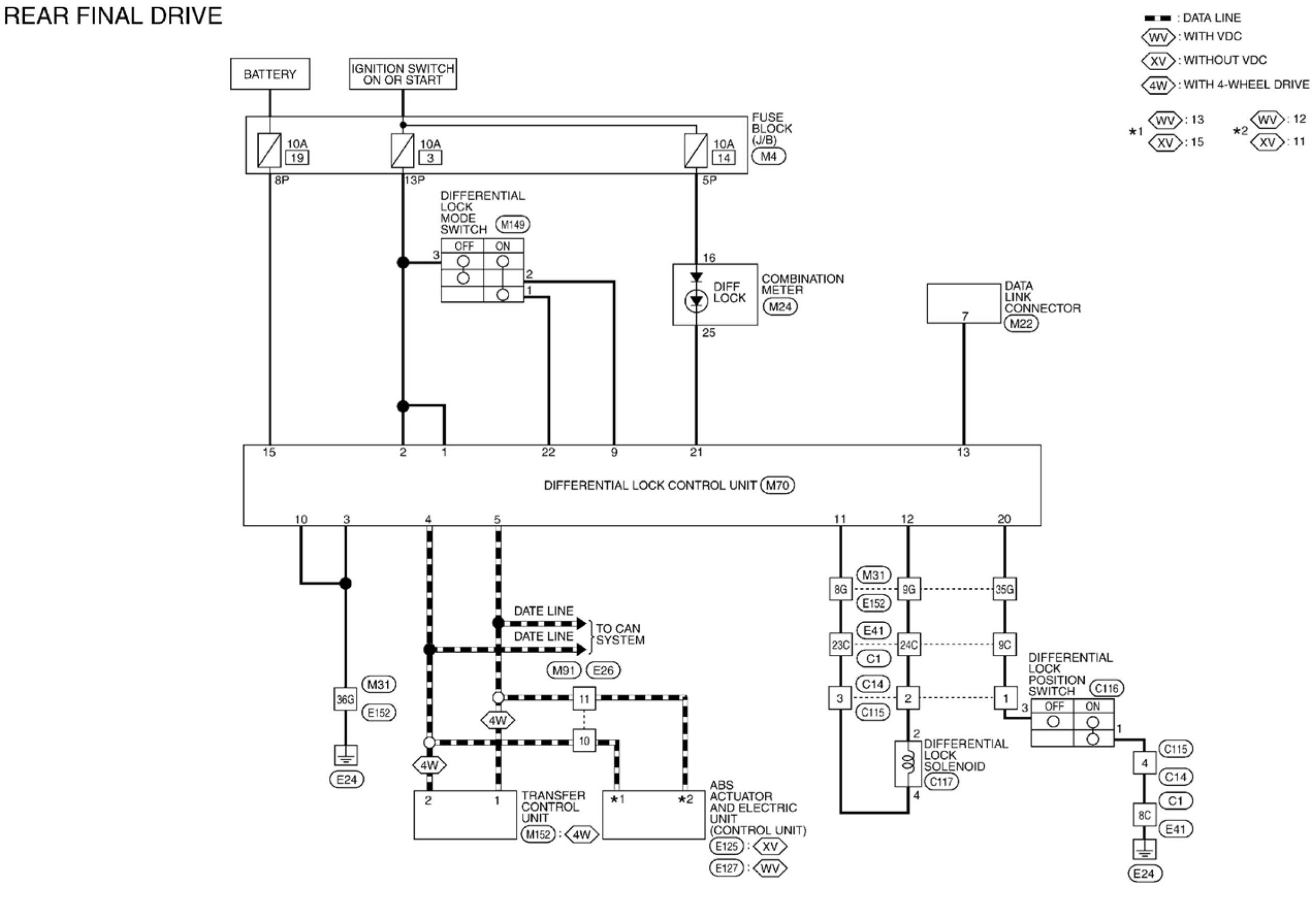

Rear Final Drive:

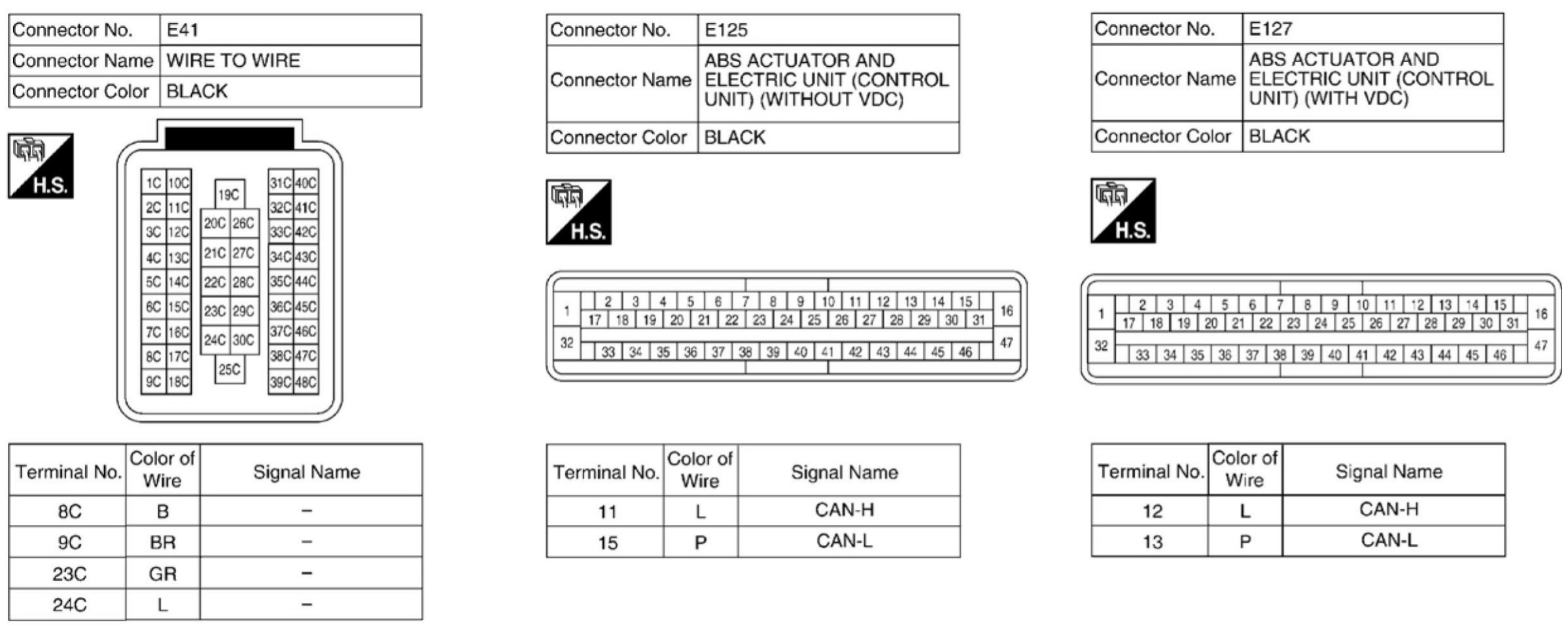

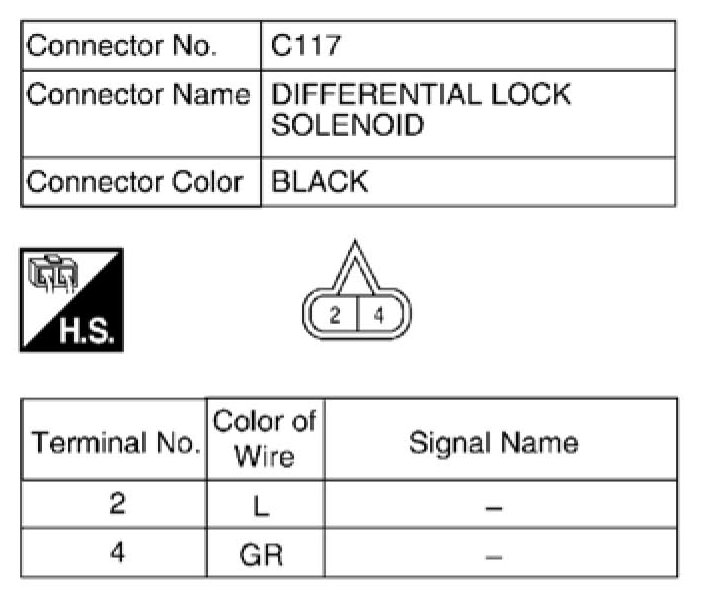

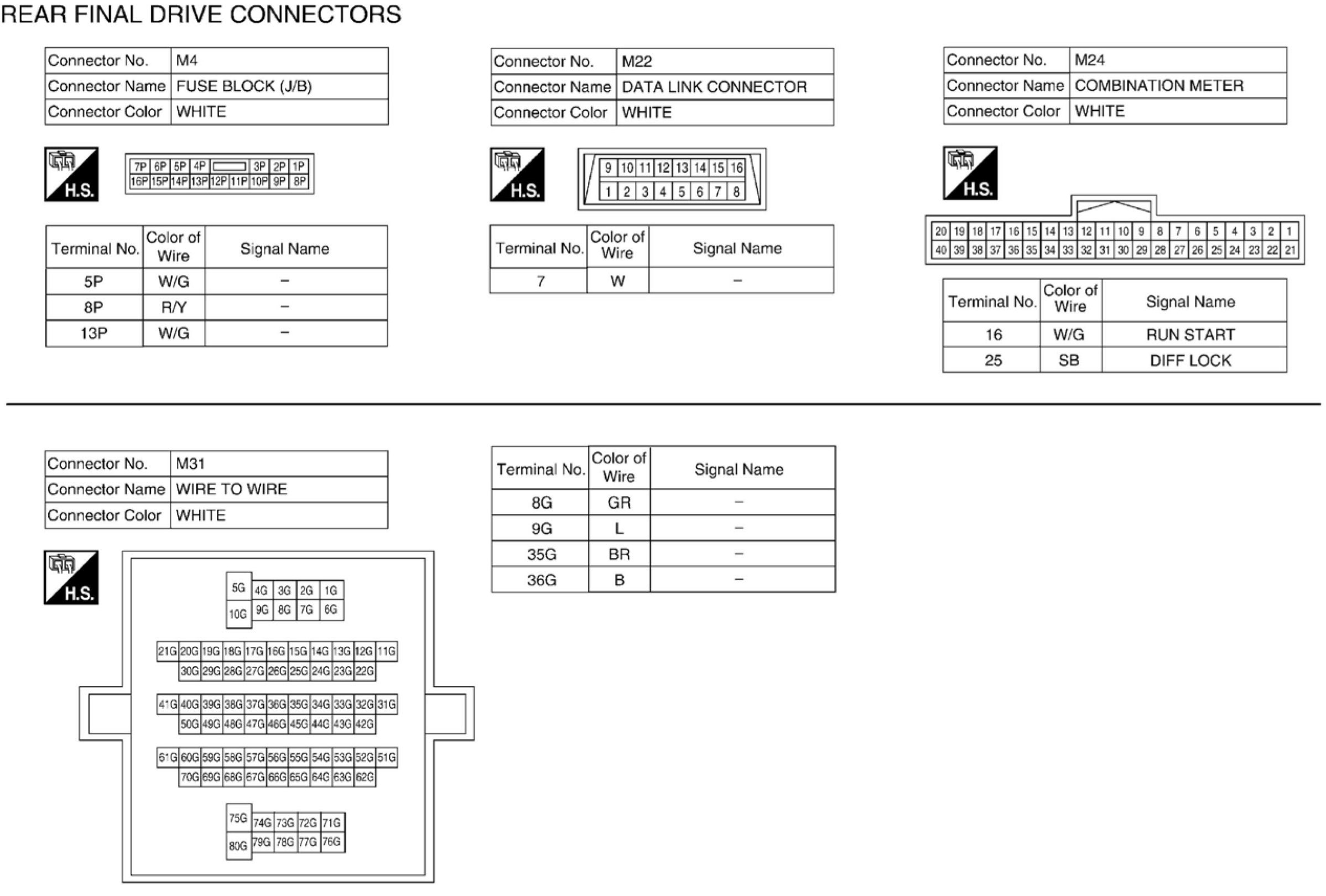

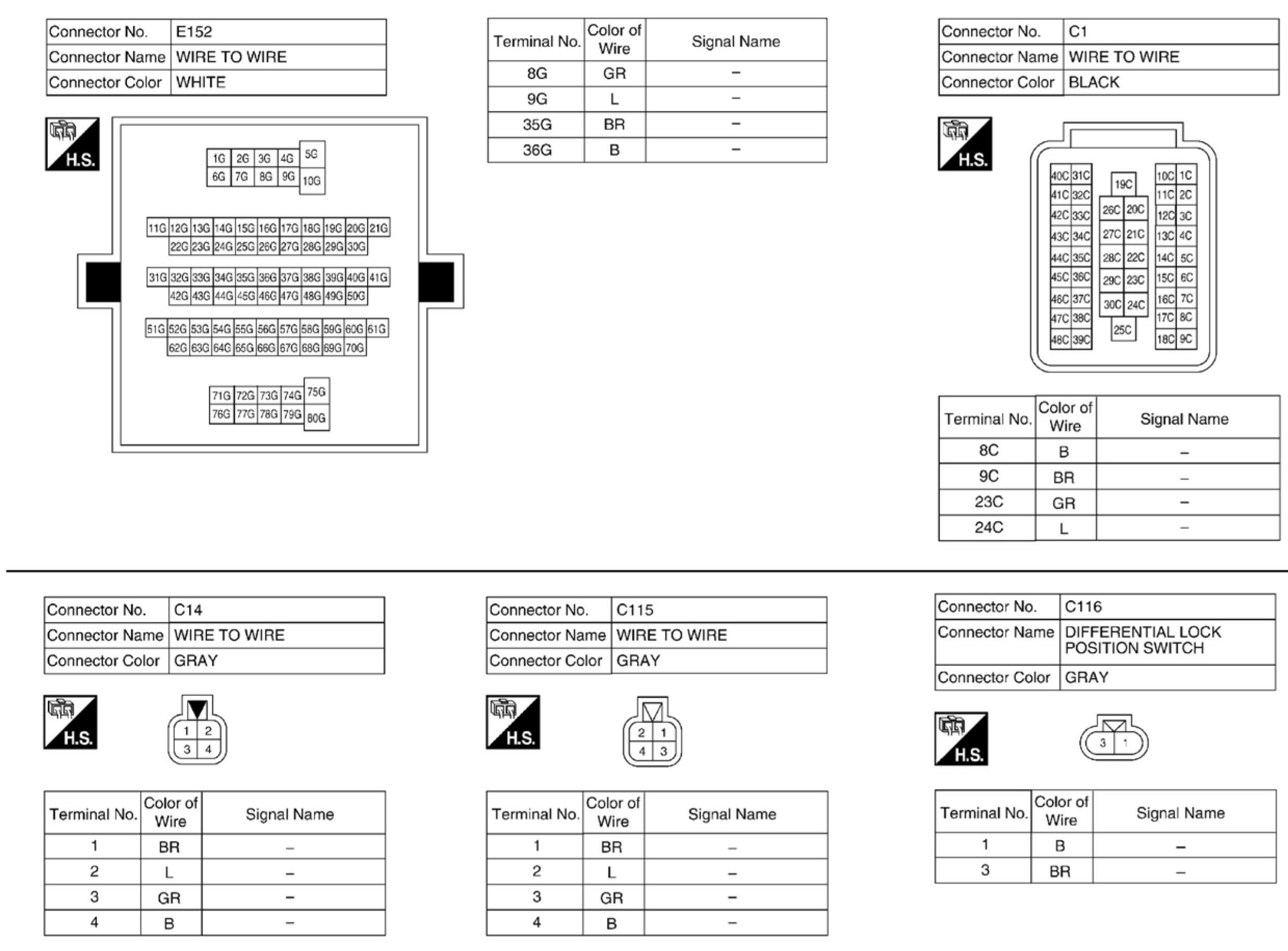

Rear Final Drive Connectors

Rear Final Drive Connectors (Part 1):

Rear Final Drive Connectors (Part 2):

Rear Final Drive Connectors (Part 3):

Rear Final Drive Connectors (Part 4):

Rear Final Drive Connectors (Part 5):
