Data List Mode

Data list Mode

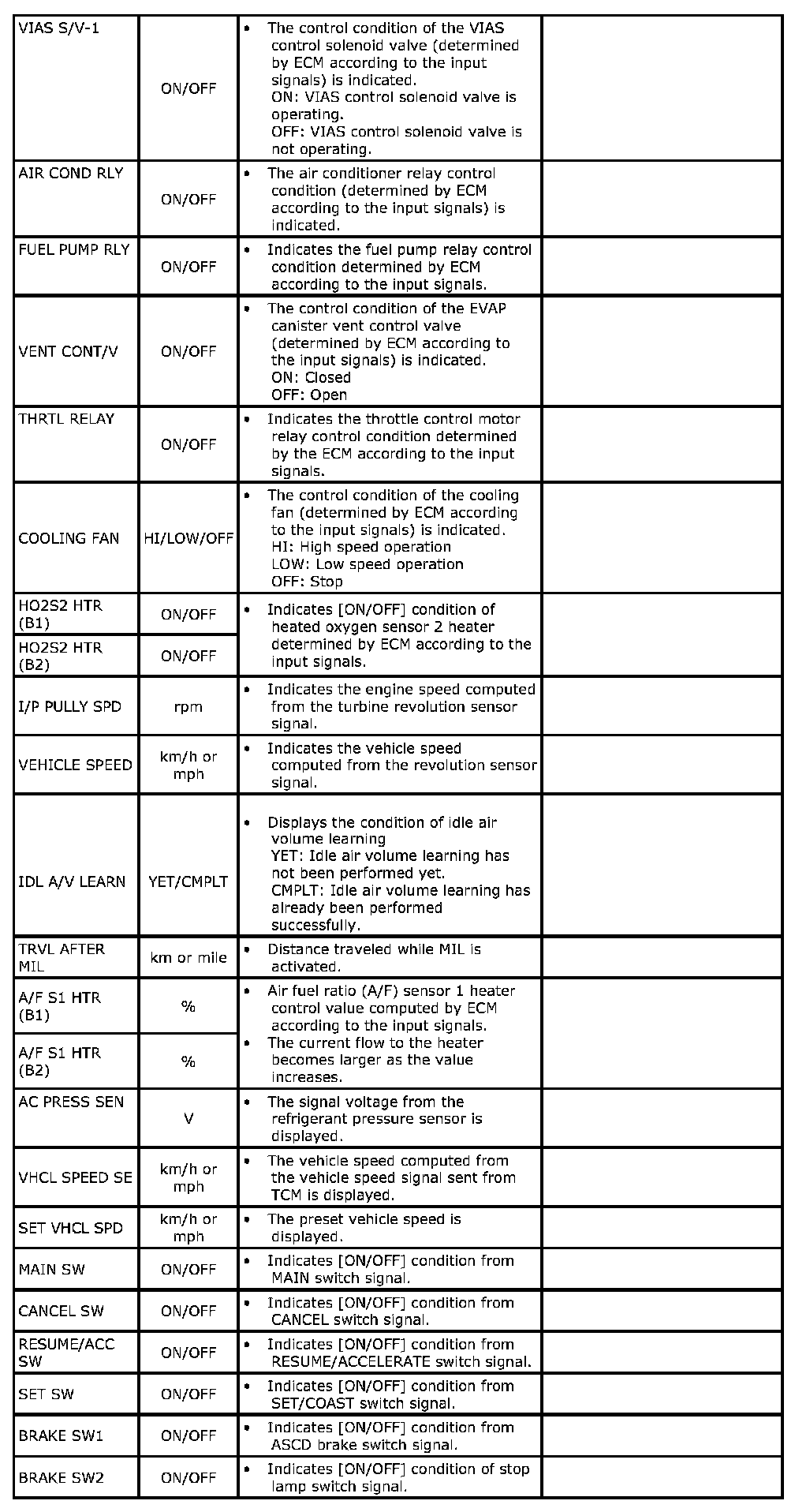

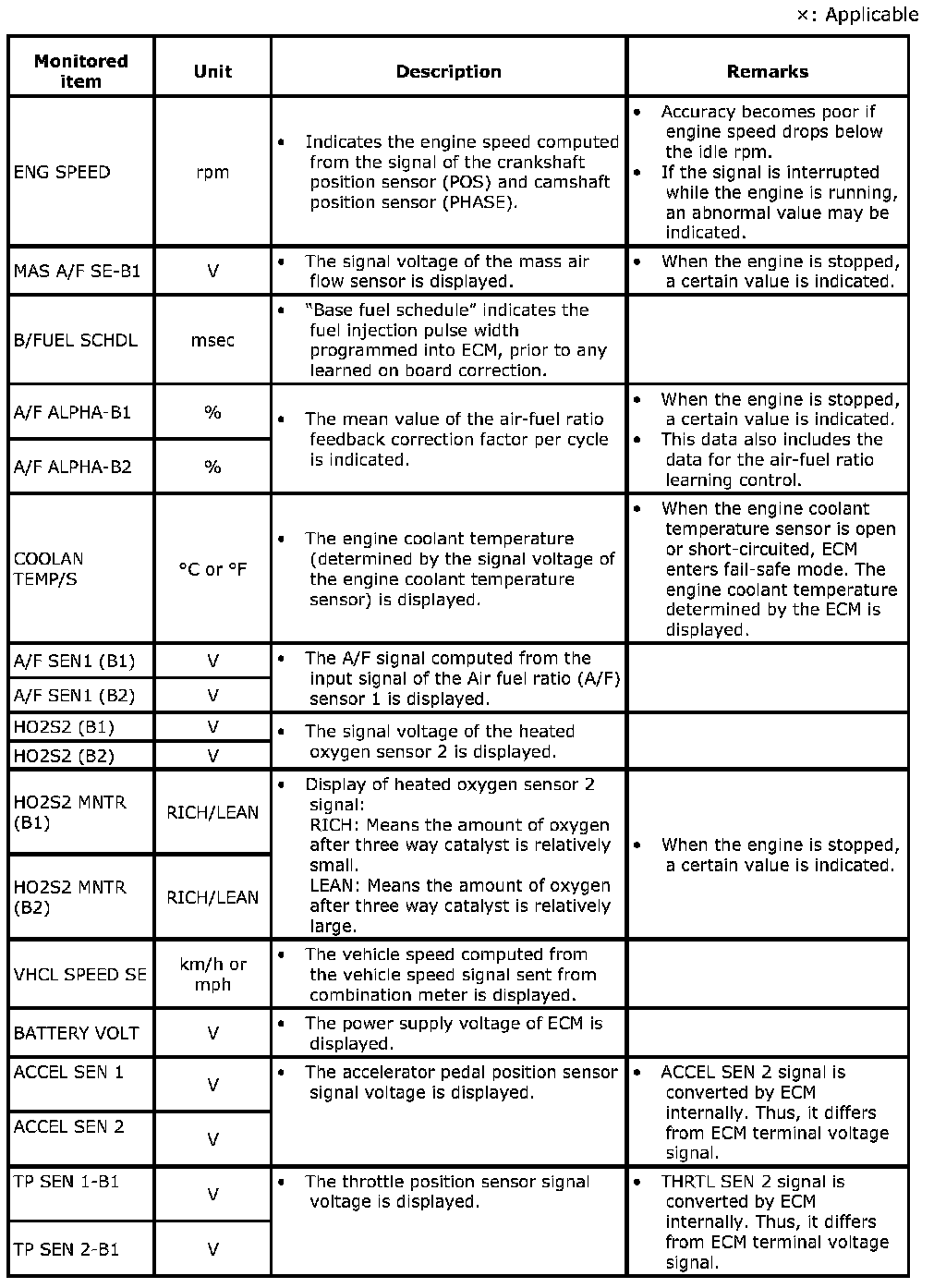

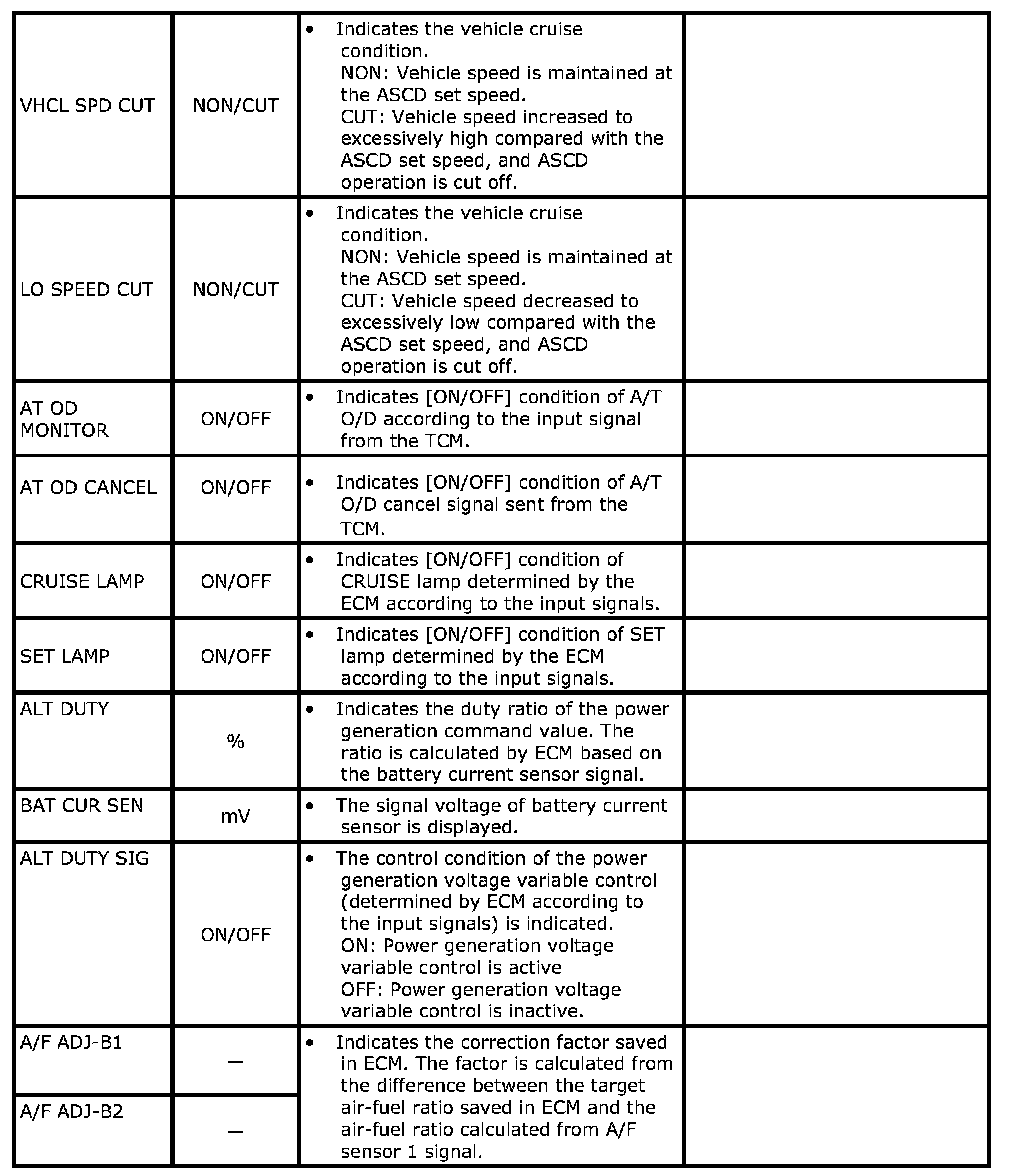

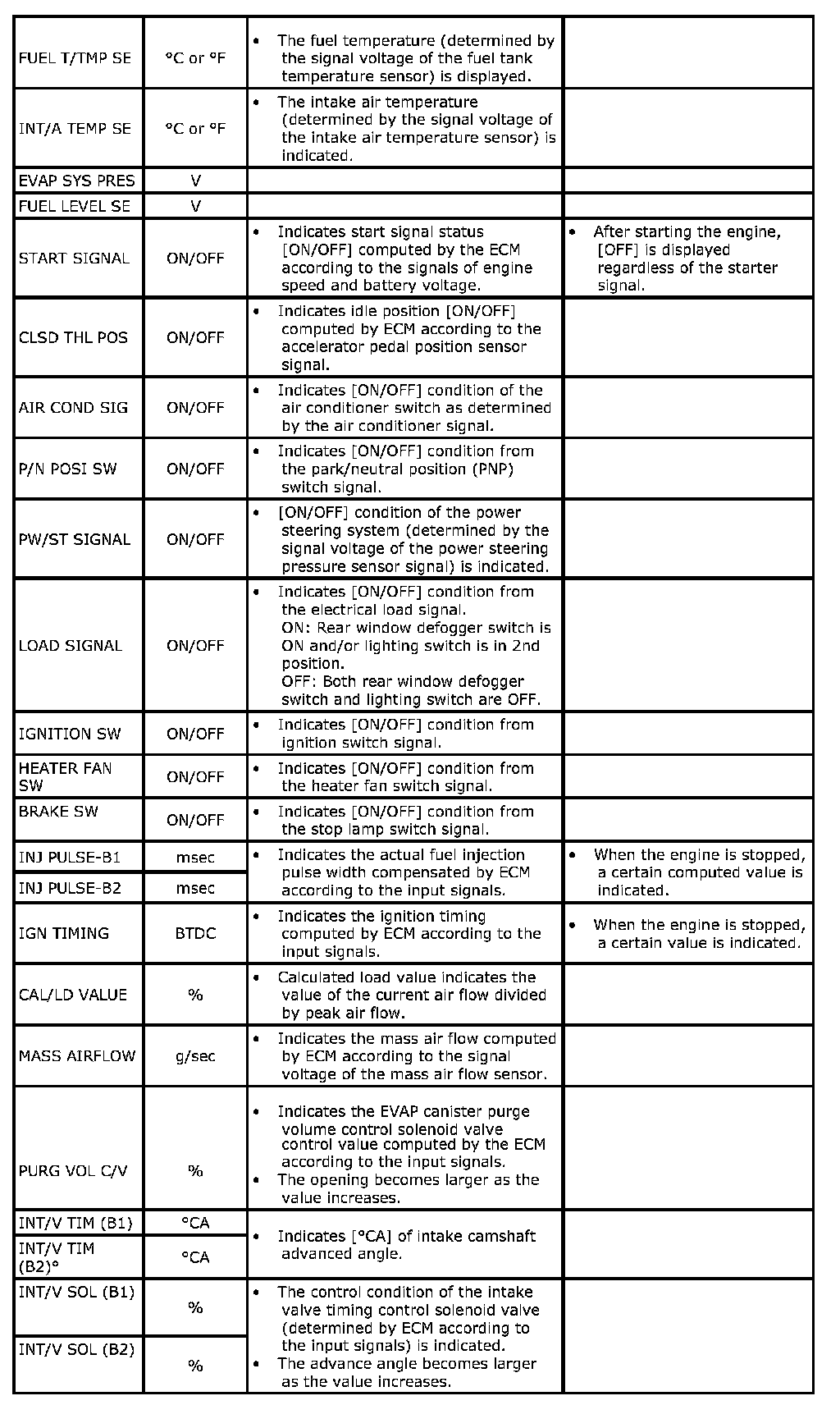

Monitored Item















NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
