Intake Manifold

Intake manifold bolt and nuts
1st step : 7.4 Nm (0.75 kg-m, 65 in-lb)
2nd step and after: 29.0 Nm (3.0 kg-m, 21 ft-lb)

Electric Throttle Control Actuator bolts 8.4 Nm (0.86 kg-m, 74 in-lb)

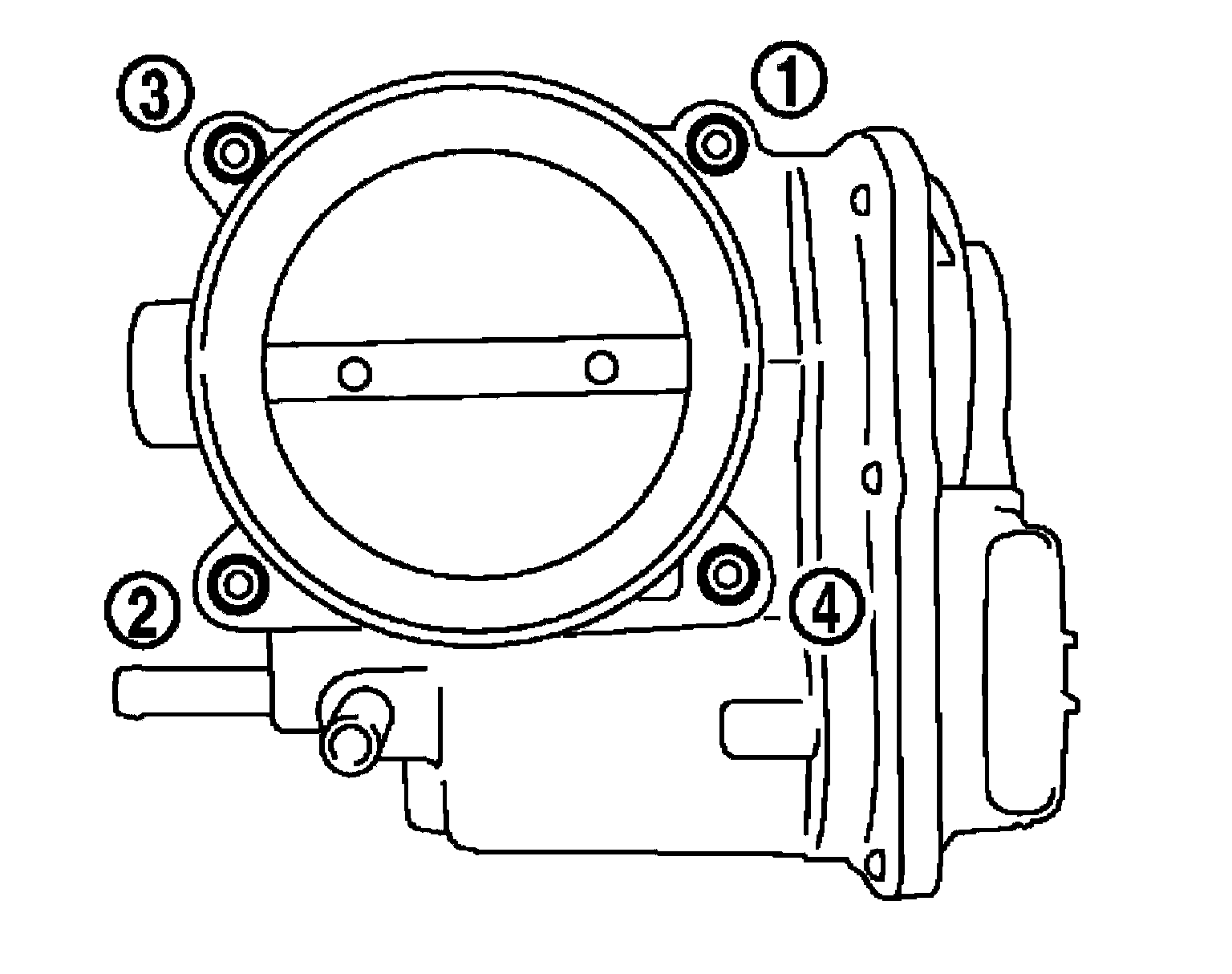

Tighten bolts in numerical order as shown.
