System Specifications

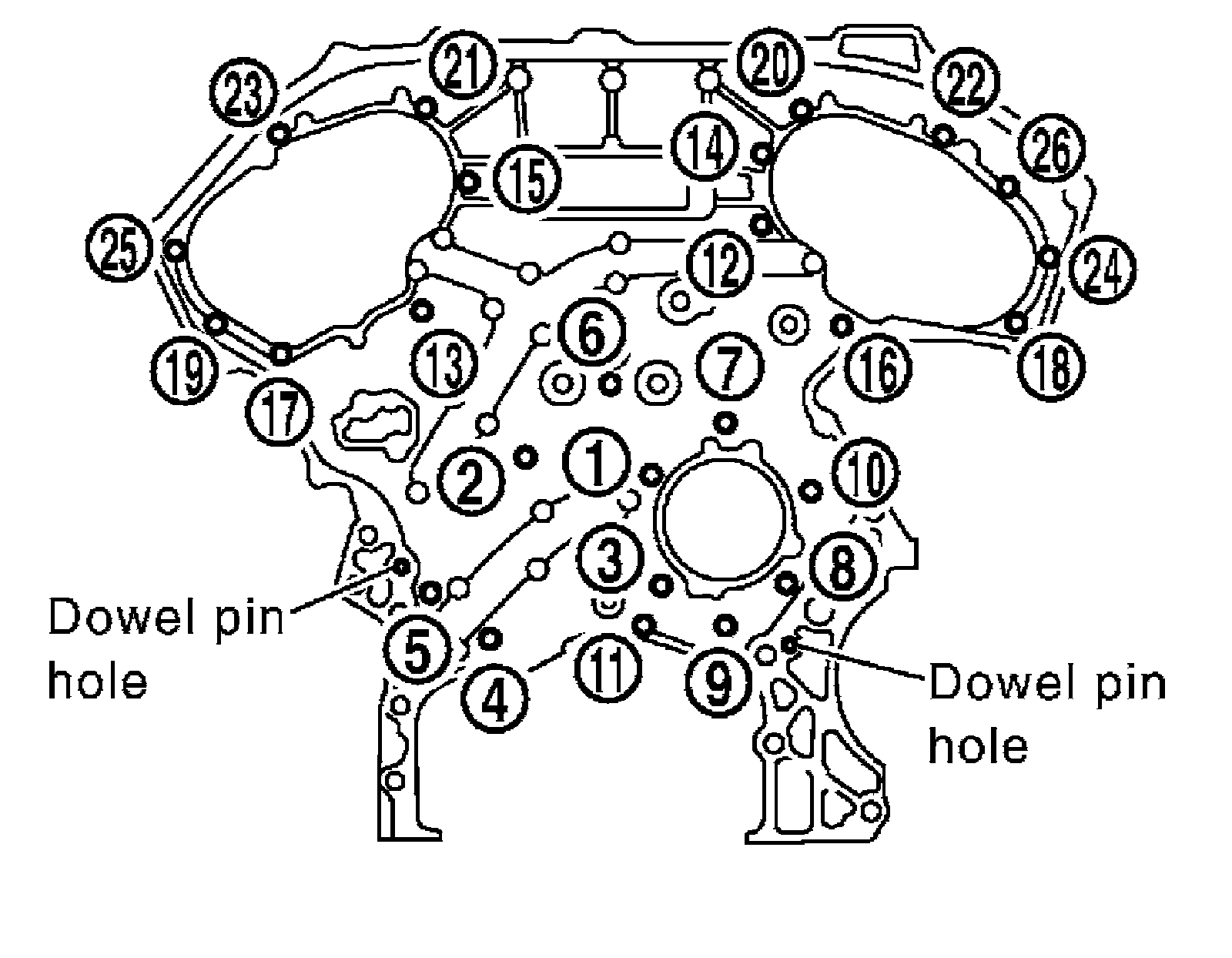

Timing chain cover
20 mm (0.79 in) 1,2,3,6,7,8,9,10: 12.7 Nm (1.3 kg-m, 9 ft-lb)
16 mm (0.63 in) 4,5,11: 12.7 Nm (1.3 kg-m, 9 ft-lb)
16 mm (0.63 in) 12 through 26 : 15.0 Nm (1.5 kg-m, 11 ft-lb)
After all bolts are tightened, retighten them to the specified torque in numerical order as shown.

Tighten crankshaft pulley bolt in two steps.
Step 1 : 44.1 Nm (4.5 kg-m, 33 ft-lb)
Step 2 : 84 - 90 degrees clockwise

Timing chain tensioner (secondary) (LH) 8.5 N-m (0.87 kg-m, 75 in-lb)
Timing chain tensioner (secondary) (RH) 8.5 N-m (0.87 kg-m, 75 in-lb)
