Mode 6 Data



Mode $06 data

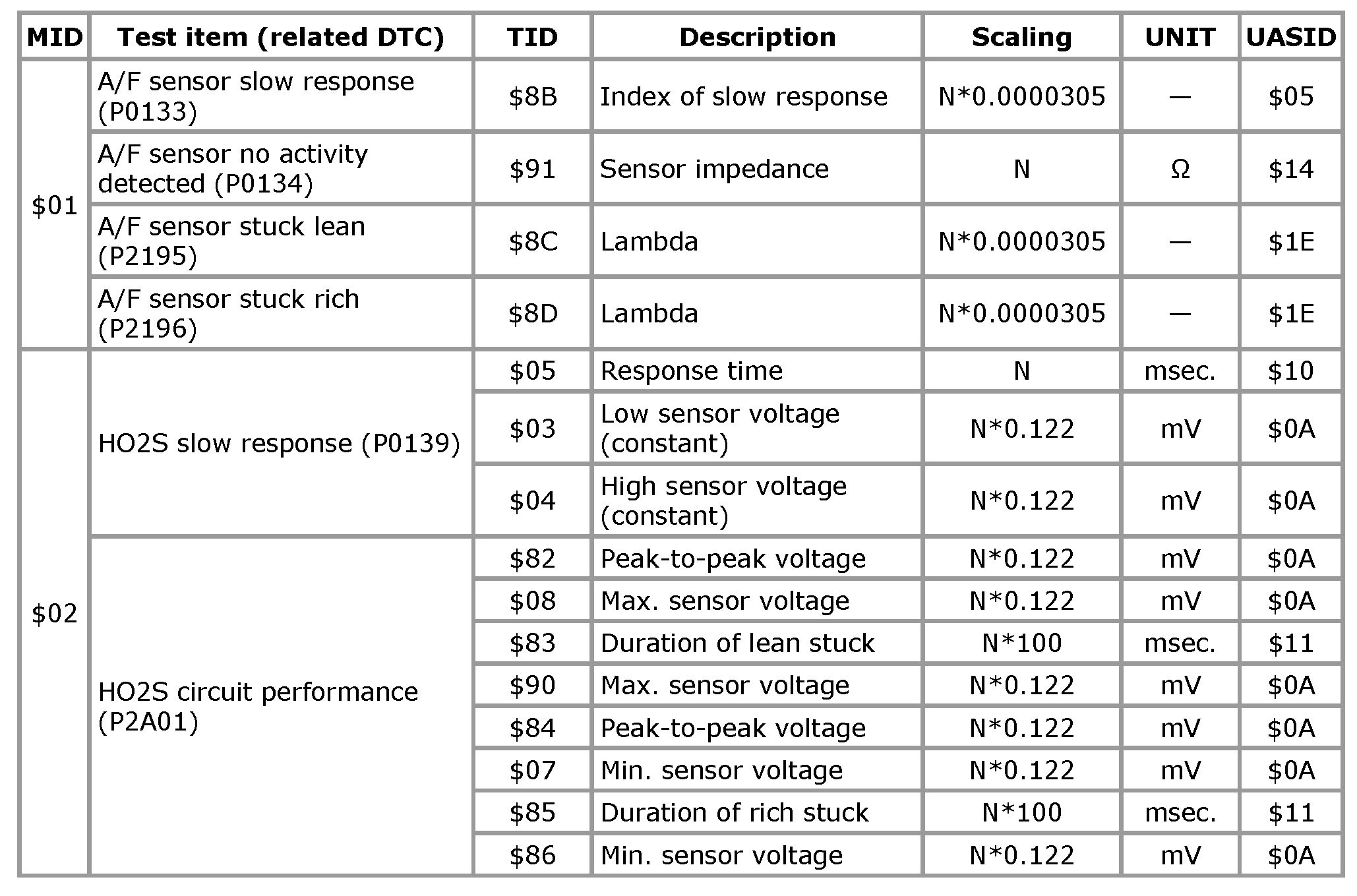

HO2S Circuit Monitor

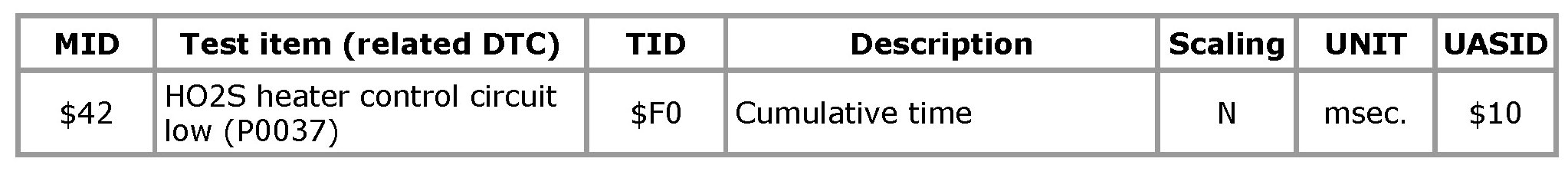

HO2S Heater Monitor

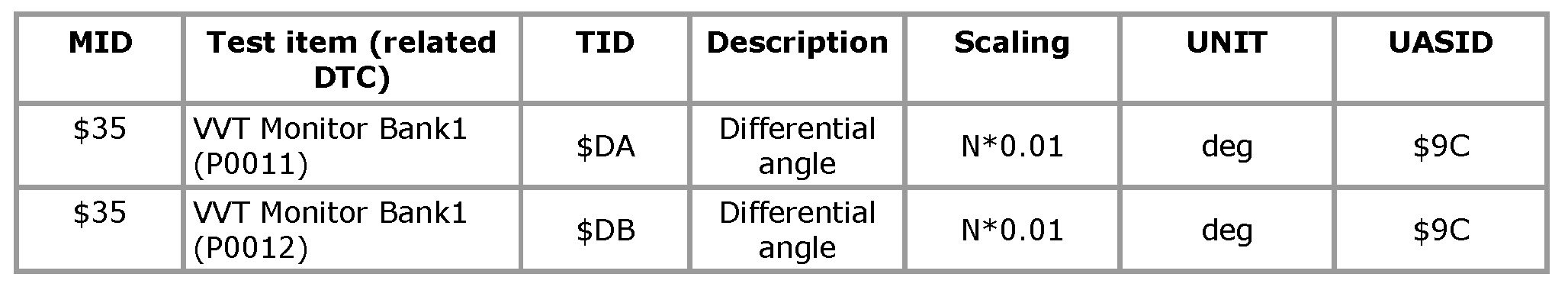

CMP Control System Monitor

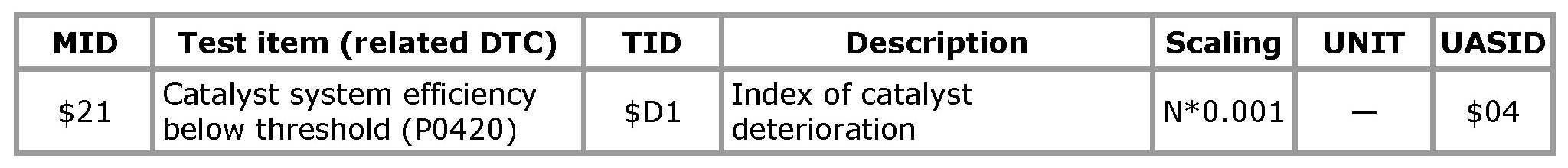

Catalyst Monitor

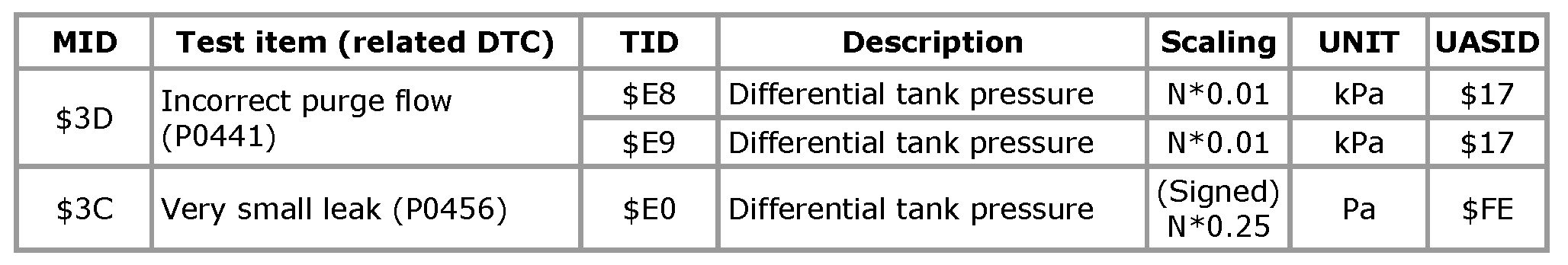

EVAP Control System Monitor

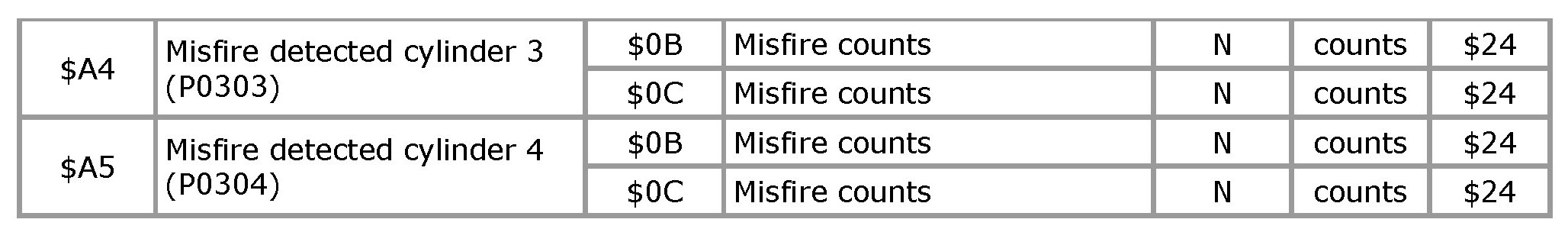

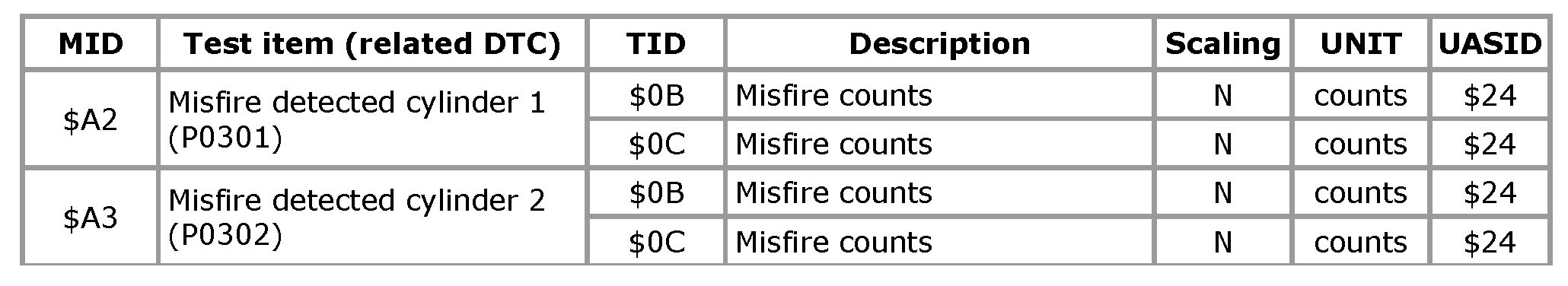

Misfire Monitor
