Front Wheel Encoder On-Vehicle Inspection

Reference: FRONT WHEEL SPEED SENSOR REMOVAL AND INSTALLATION

Before inspect front wheel encoder, remove front drive shaft or front wheel spindle referring to FRONT DRIVE SHAFT ASSEMBLY REMOVAL AND INSTALLATION or FRONT WHEEL HUB ASSEMBLY REMOVAL AND INSTALLATION .

• Check encoder (1) for being crack, damaged or deformed.
• Turn wheel and check if encoder rotation is free from eccentricity and looseness.
• Check that no foreign material is attached.

If any faulty is found, repair or replace.

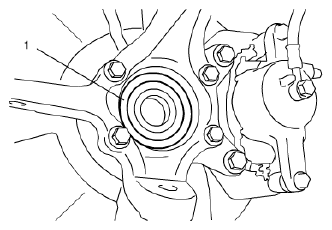

Fig 1: Identifying Front Wheel Encoder

Courtesy of SUZUKI OF AMERICA CORP.
