Front Seat Components

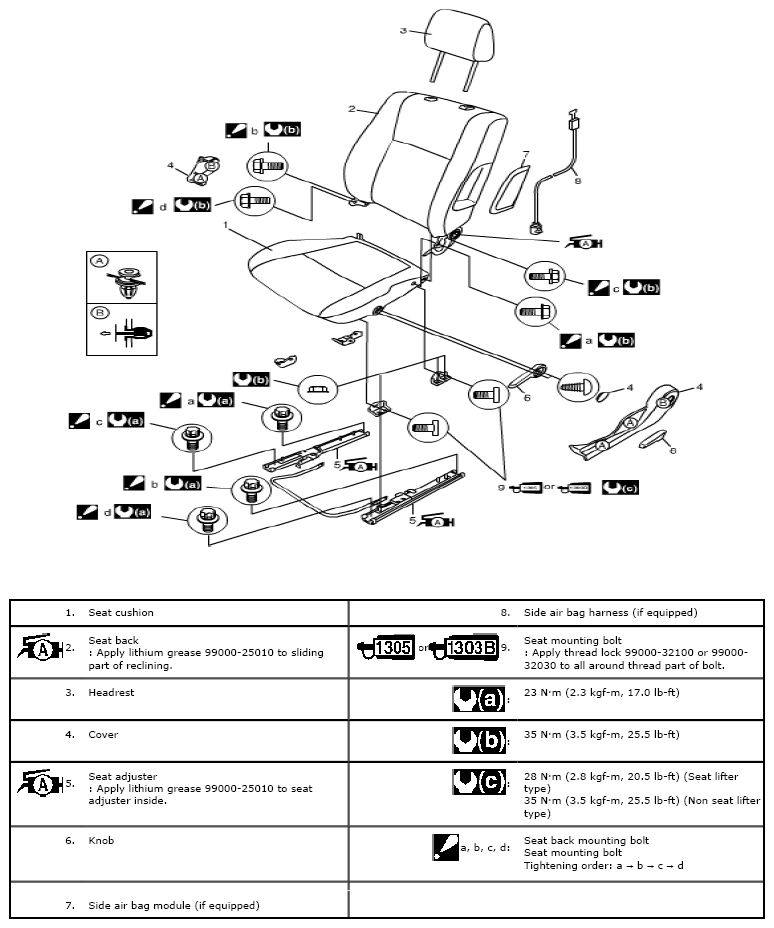

Fig 1: Identifying Front Seat Components

G05472553

Courtesy of SUZUKI OF AMERICA CORP.
