Grille: Service and Repair

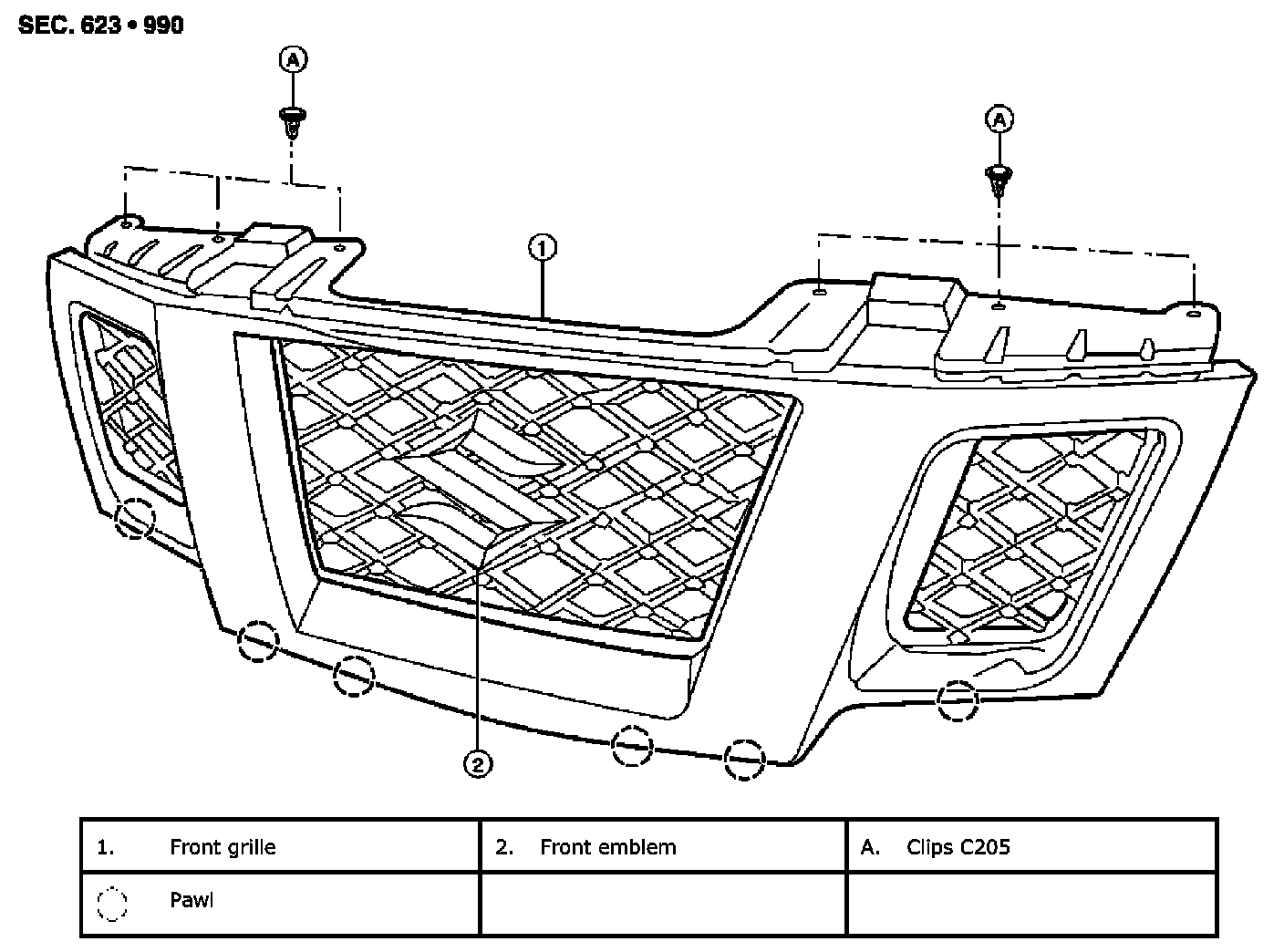

Front Grille: Removal and Installation







Removal
1. Release the upper clips from the front grille.
2. Detach the front grille and remove the front grille from member.

Installation
Installation is in the reverse order of removal.
