Information Bus

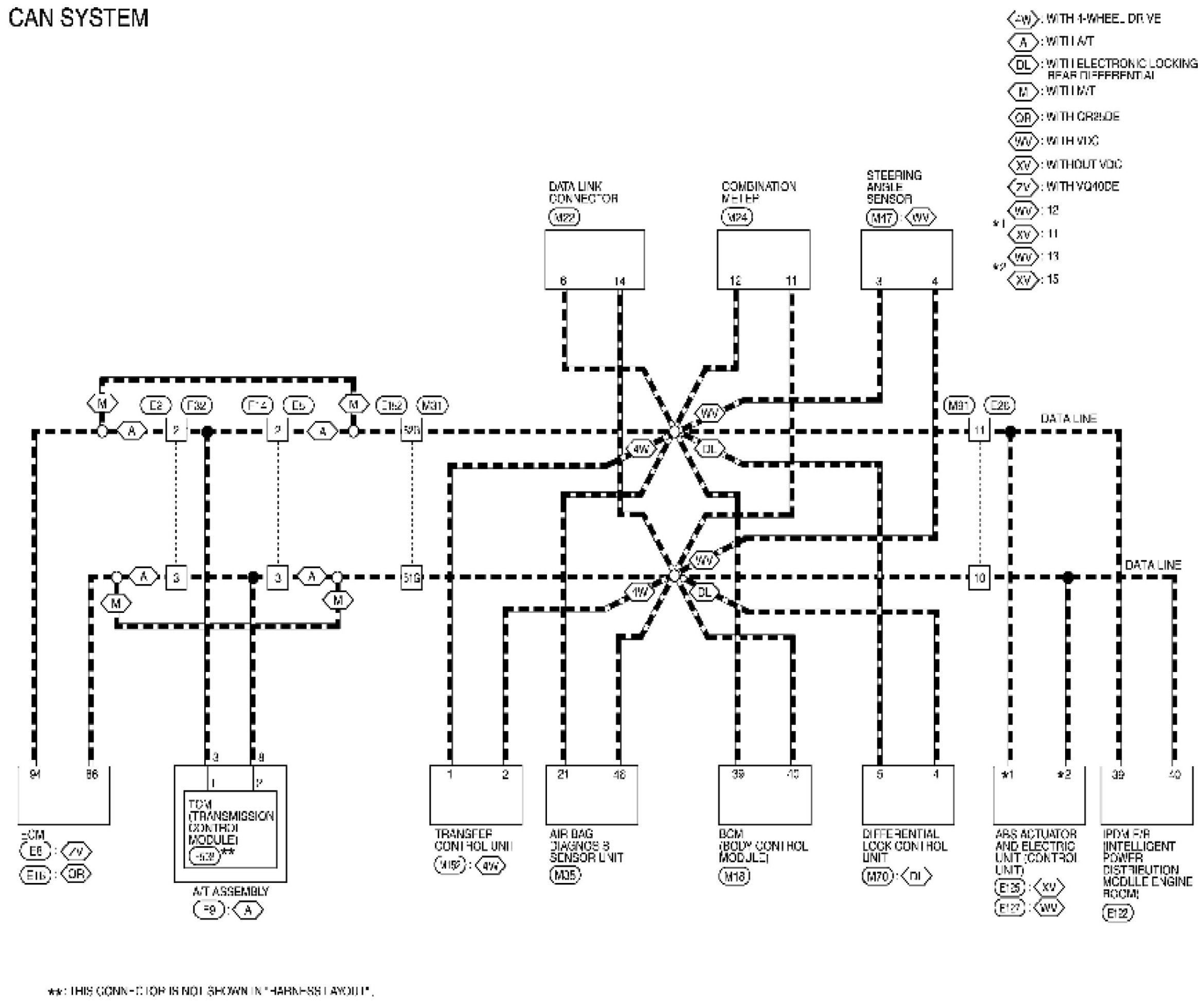

CAN System: Wiring Diagram

CAN System:






CAN System Connectors

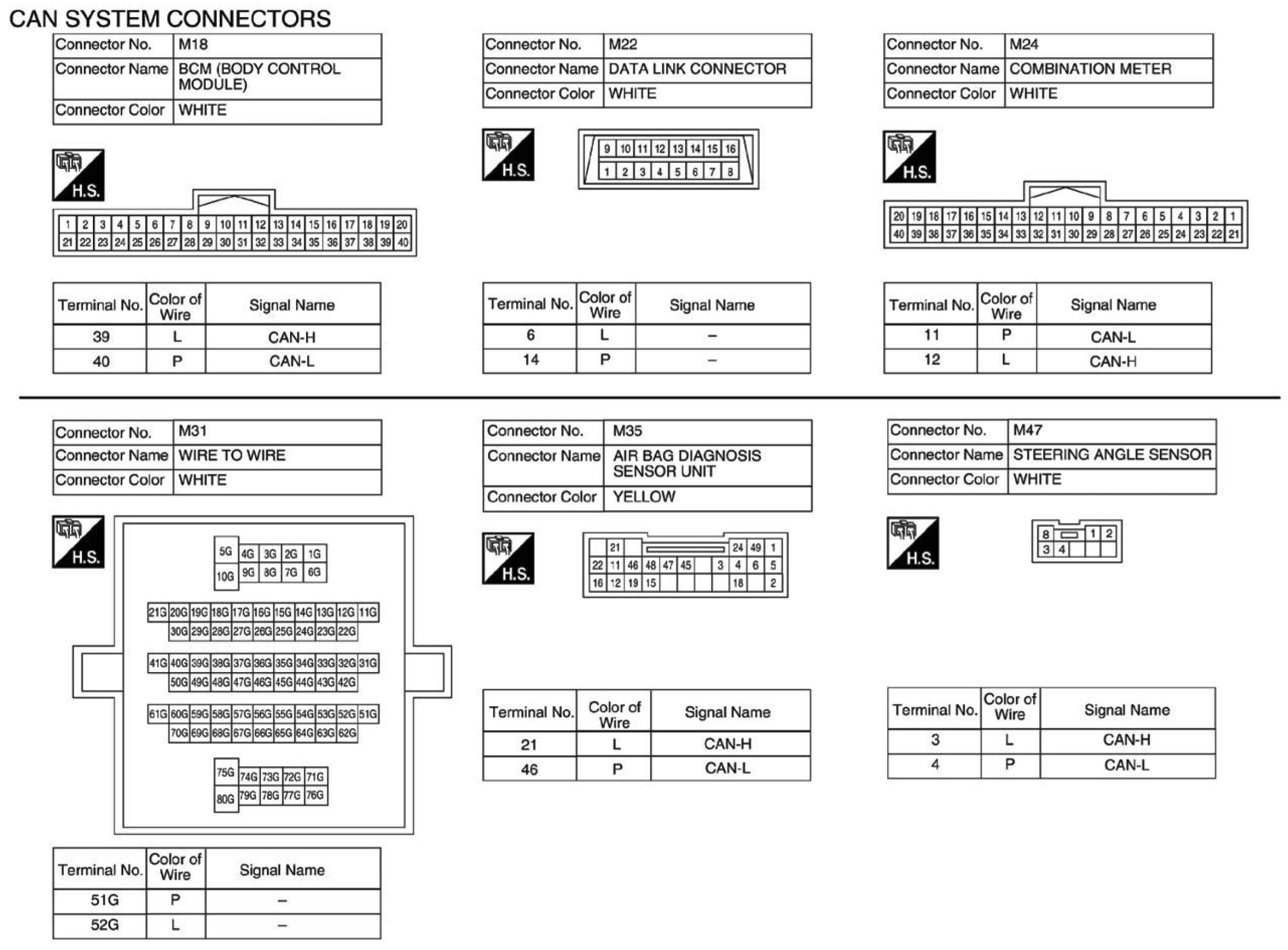

CAN System Connectors (Part 1):

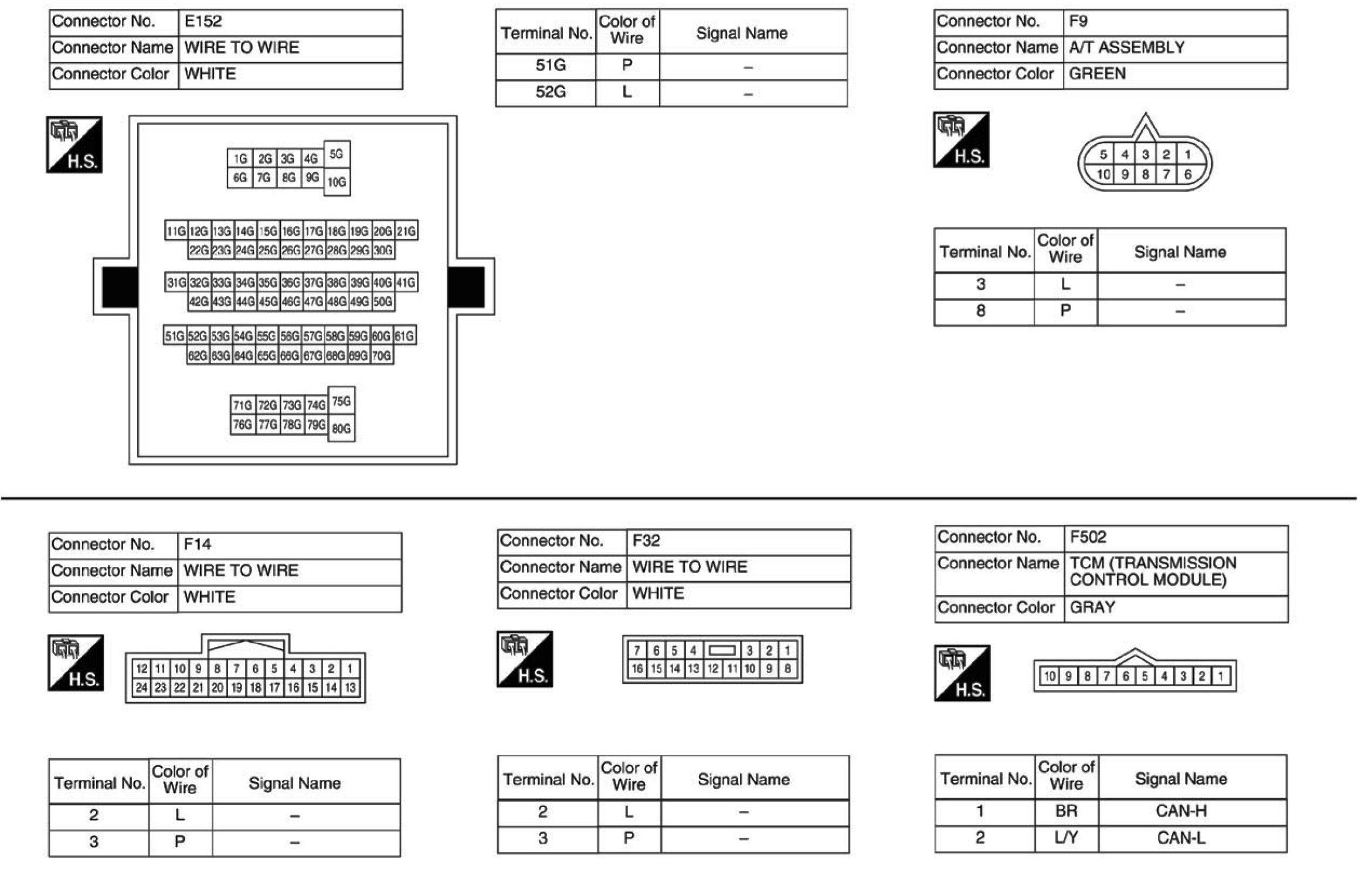

CAN System Connectors (Part 2):

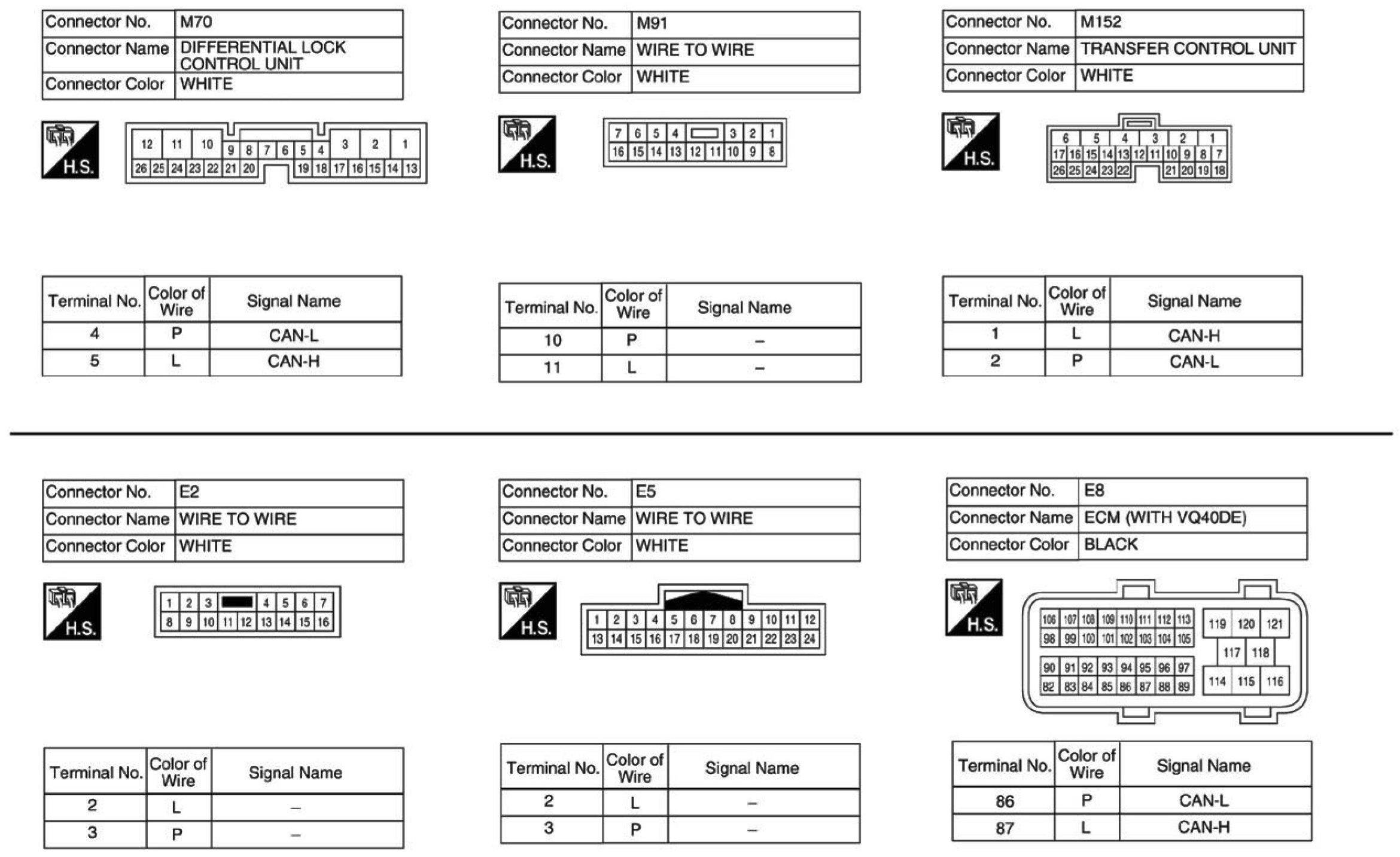

CAN System Connectors (Part 3):

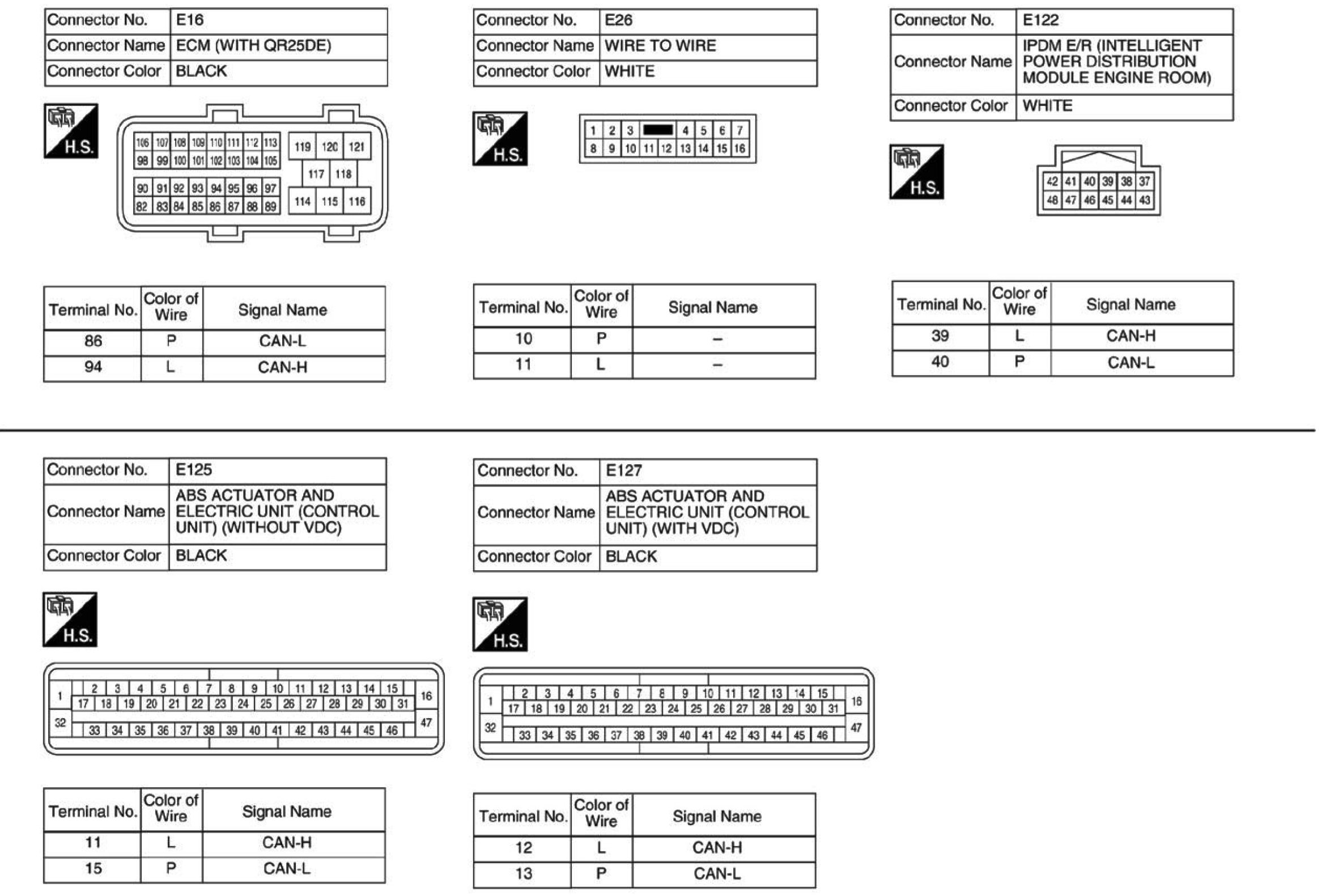

CAN System Connectors (Part 4):
