Main Harness
Main Harness

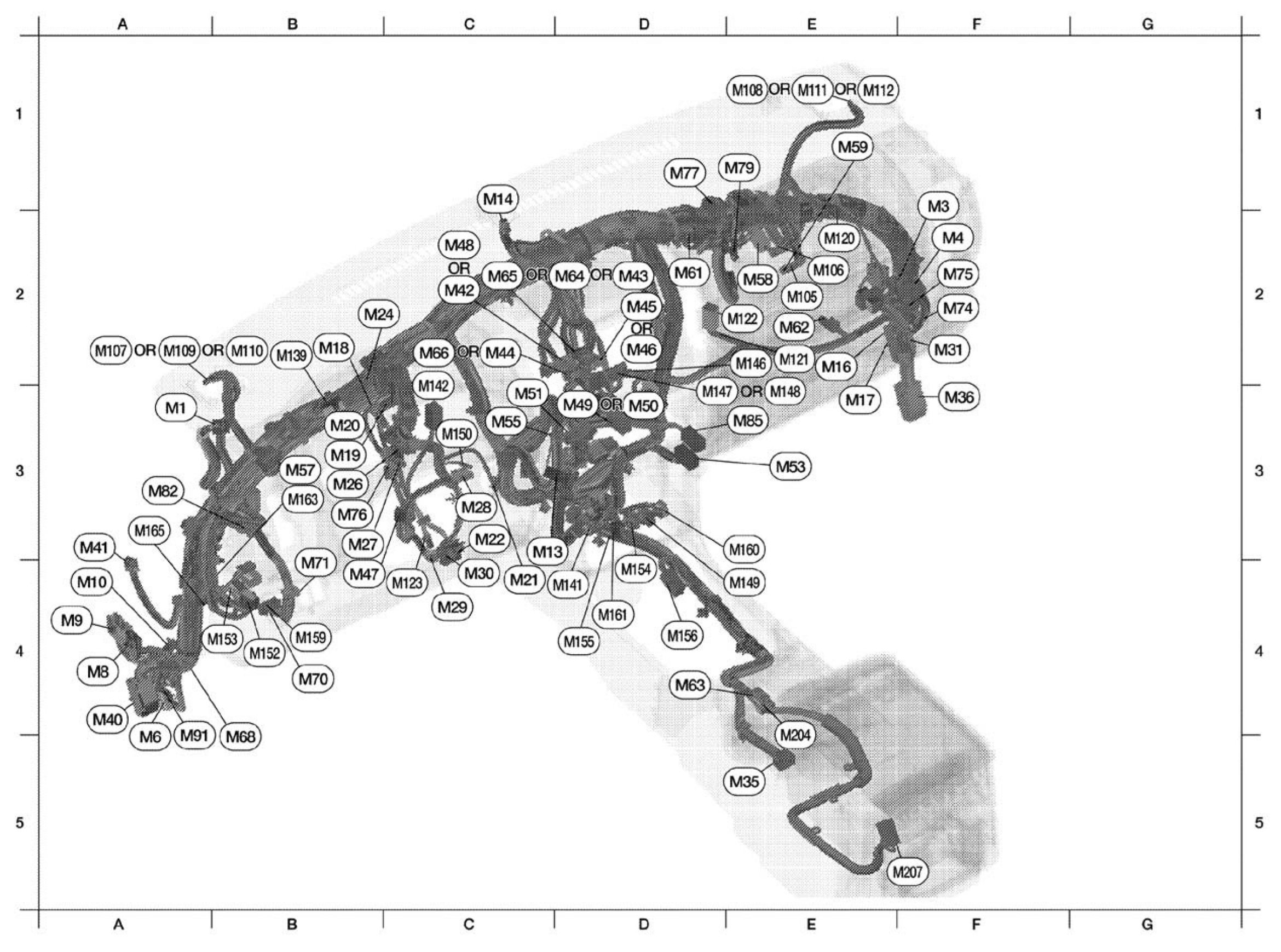

Main Harness View:

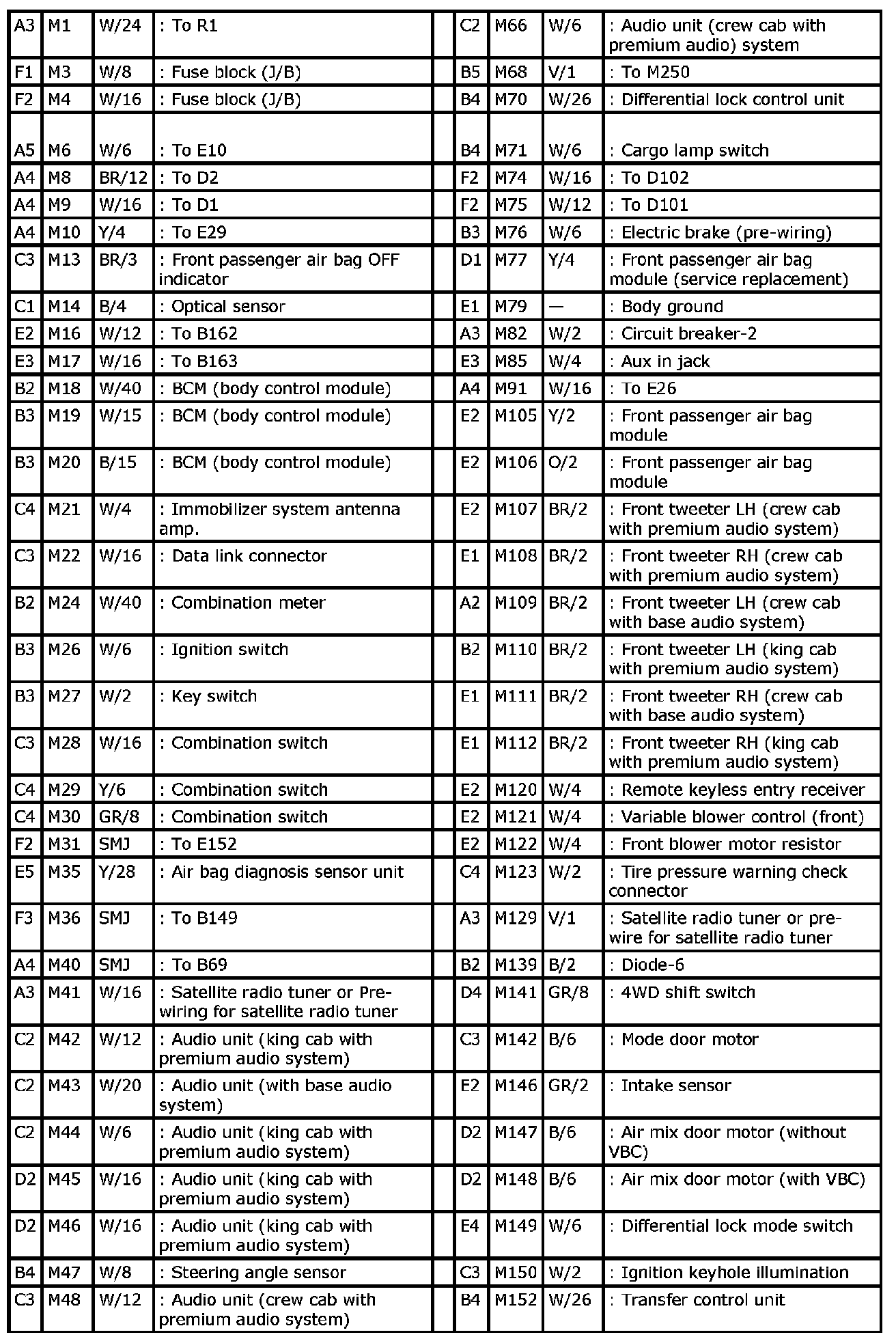

Main Harness Index (Part 1):

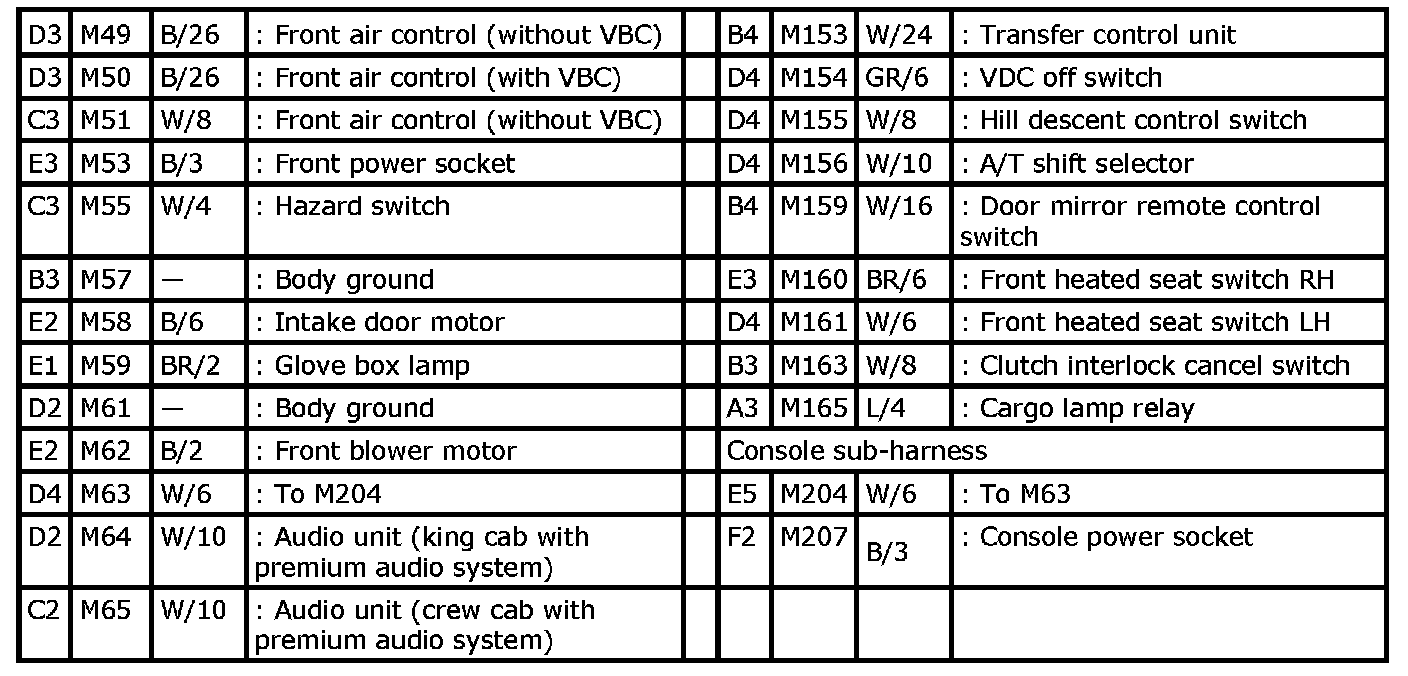

Main Harness Index (Part 2):
