Power Steering Line/Hose: Service and Repair

Hydraulic Line: Removal and Installation

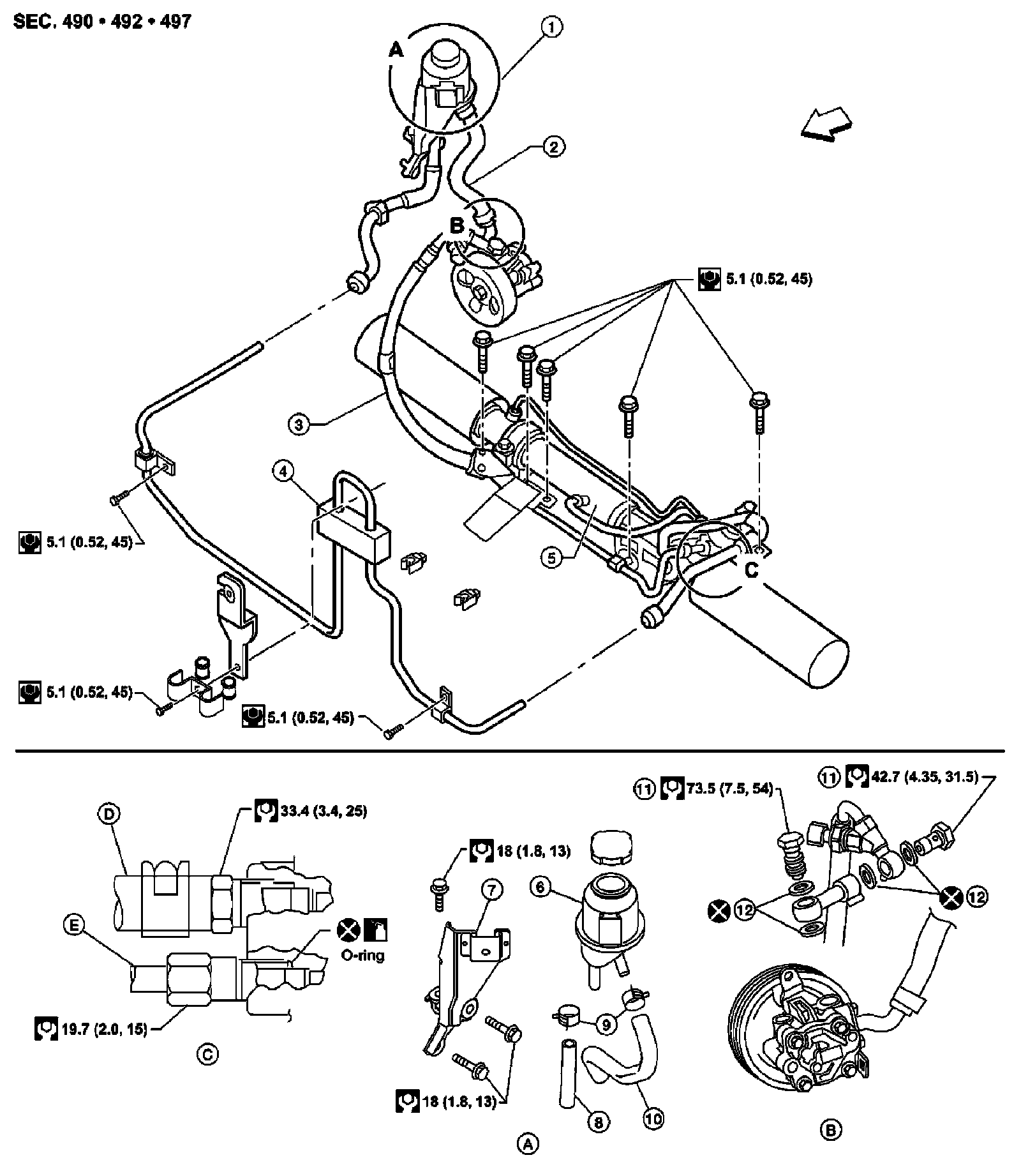

Refer to the following illustration for hydraulic line removal and installation.
