Electronic Shift Control Input/Output Table

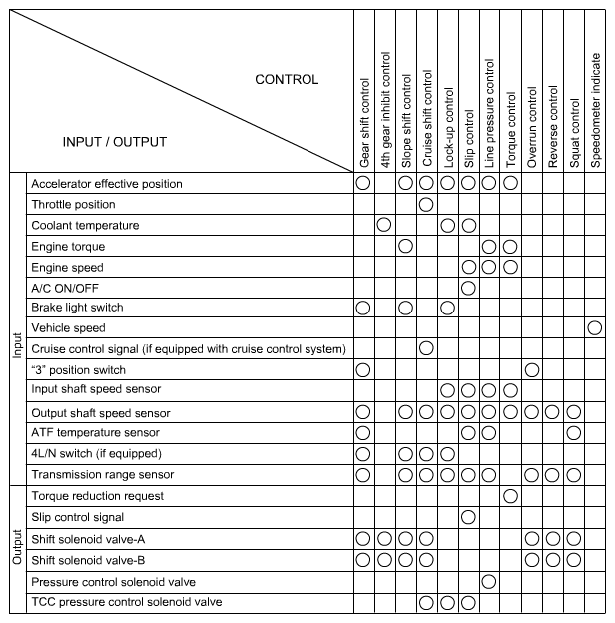

Fig 1: Electronic Shift Control Input/Output Chart
G06498539Courtesy of SUZUKI OF AMERICA CORP.
