Rear

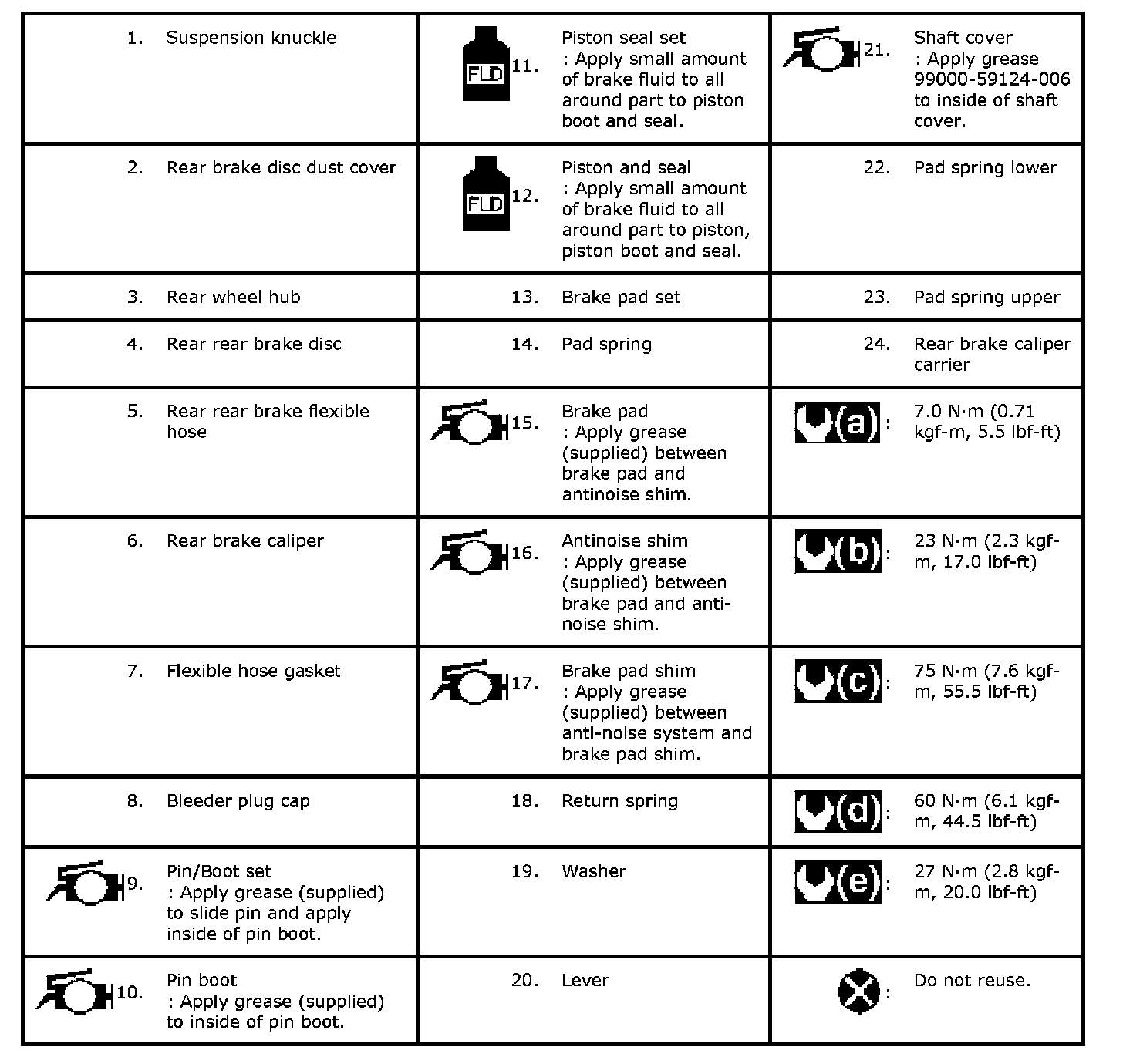

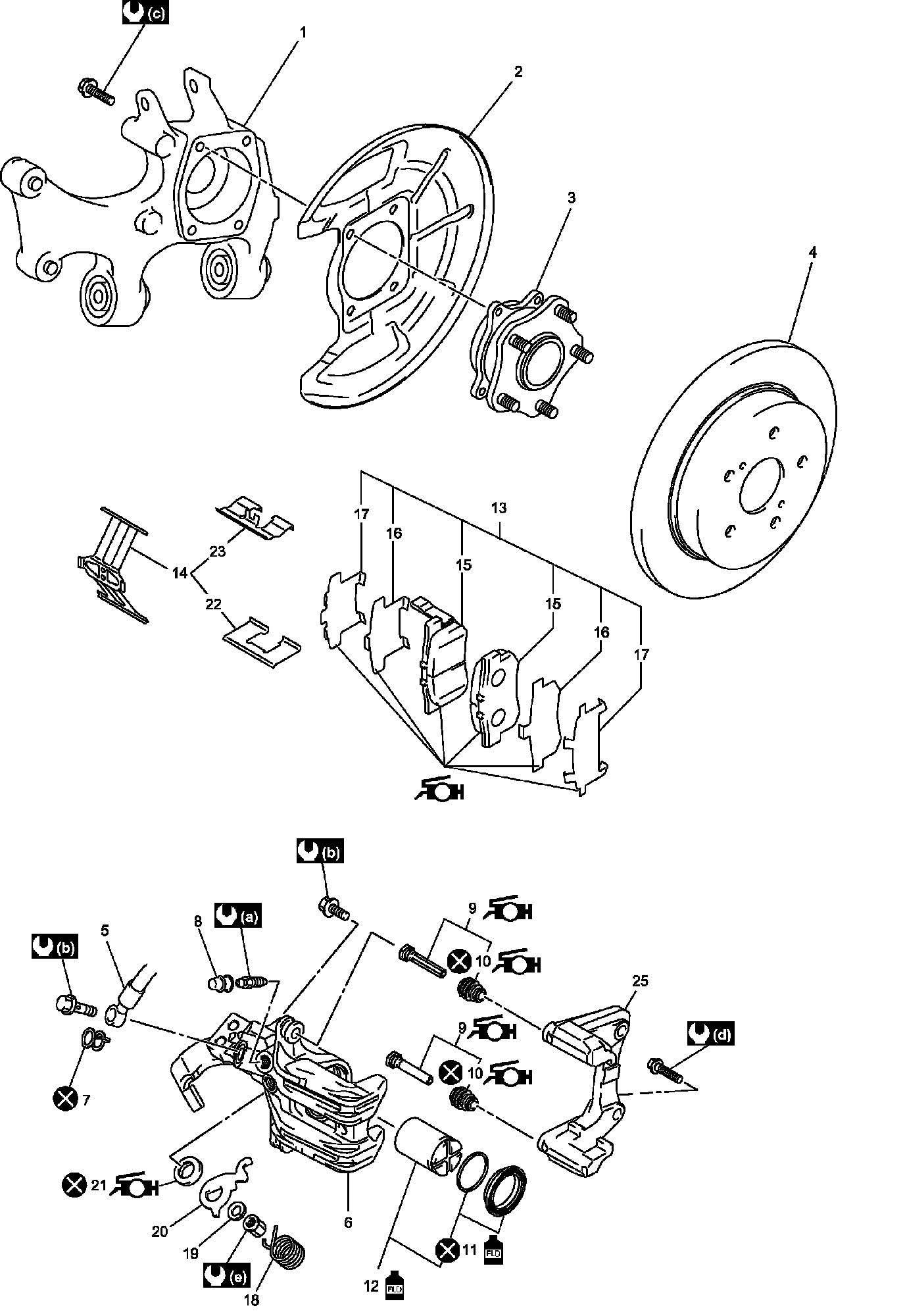

Rear Brake Components

CAUTION:
^ When disconnecting rear brake flexible hose, plug its end so that brake fluid will not flow out and contact to vehicle or floor.
^ Install rear brake flexible hoses without twist.
