Seats

Front Seat Components

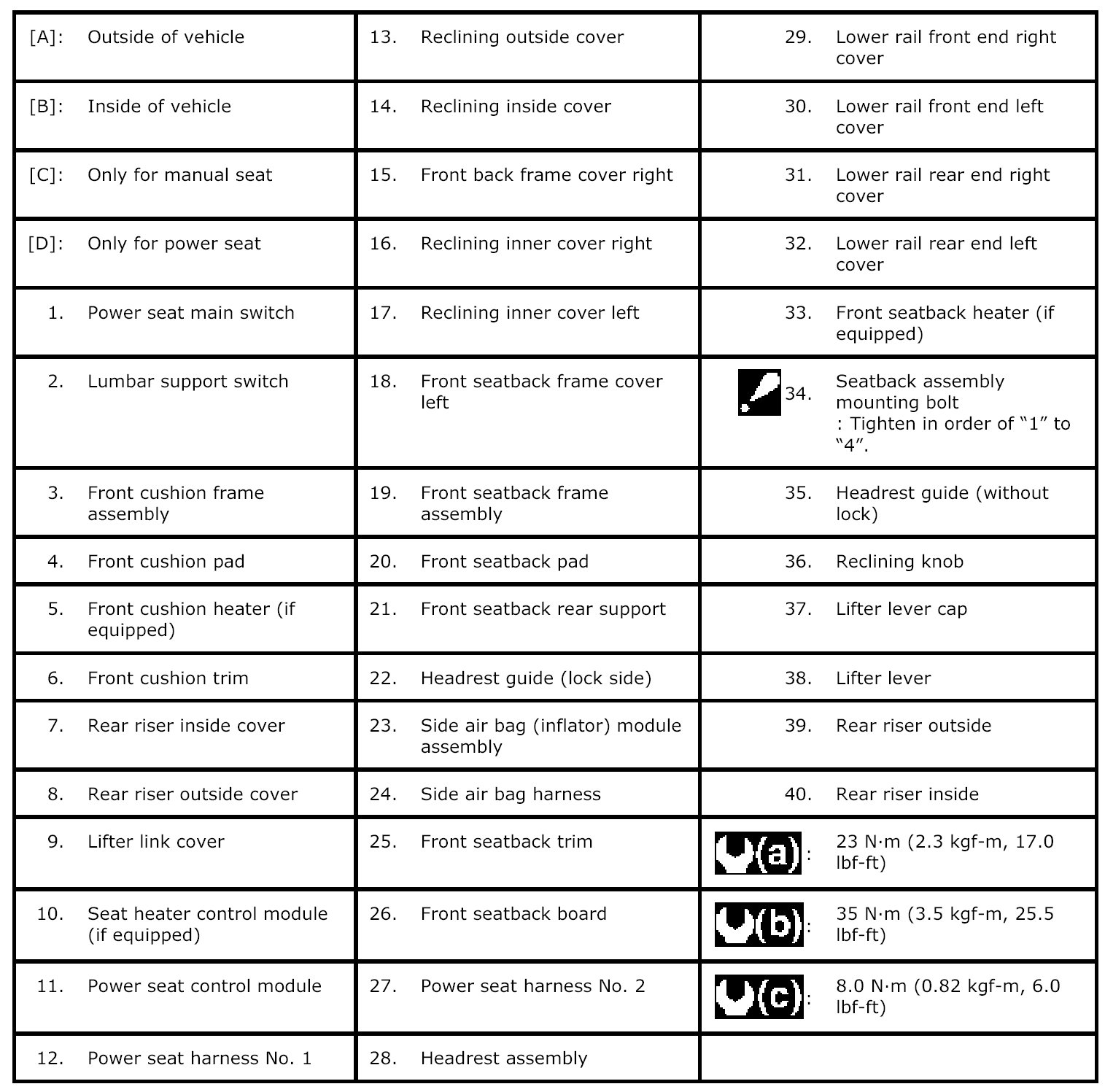

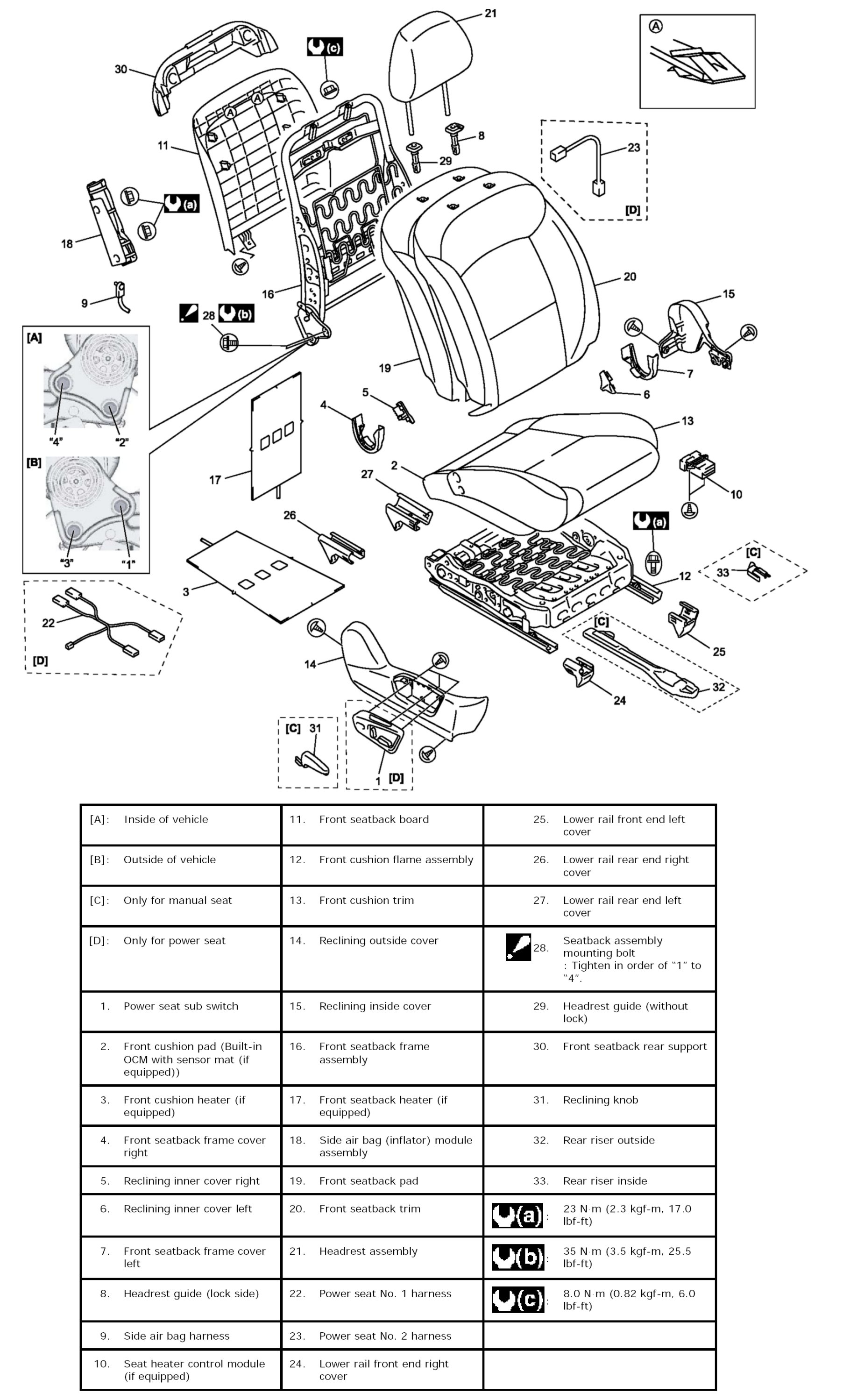

This figure shows example of power seat components and specific components to manual seat. Although figure does not show manual seat components of identical names with power seat counterparts, there are differences in shape and design between them. When replacing any seat component, be sure to select correct one referring to parts catalog.

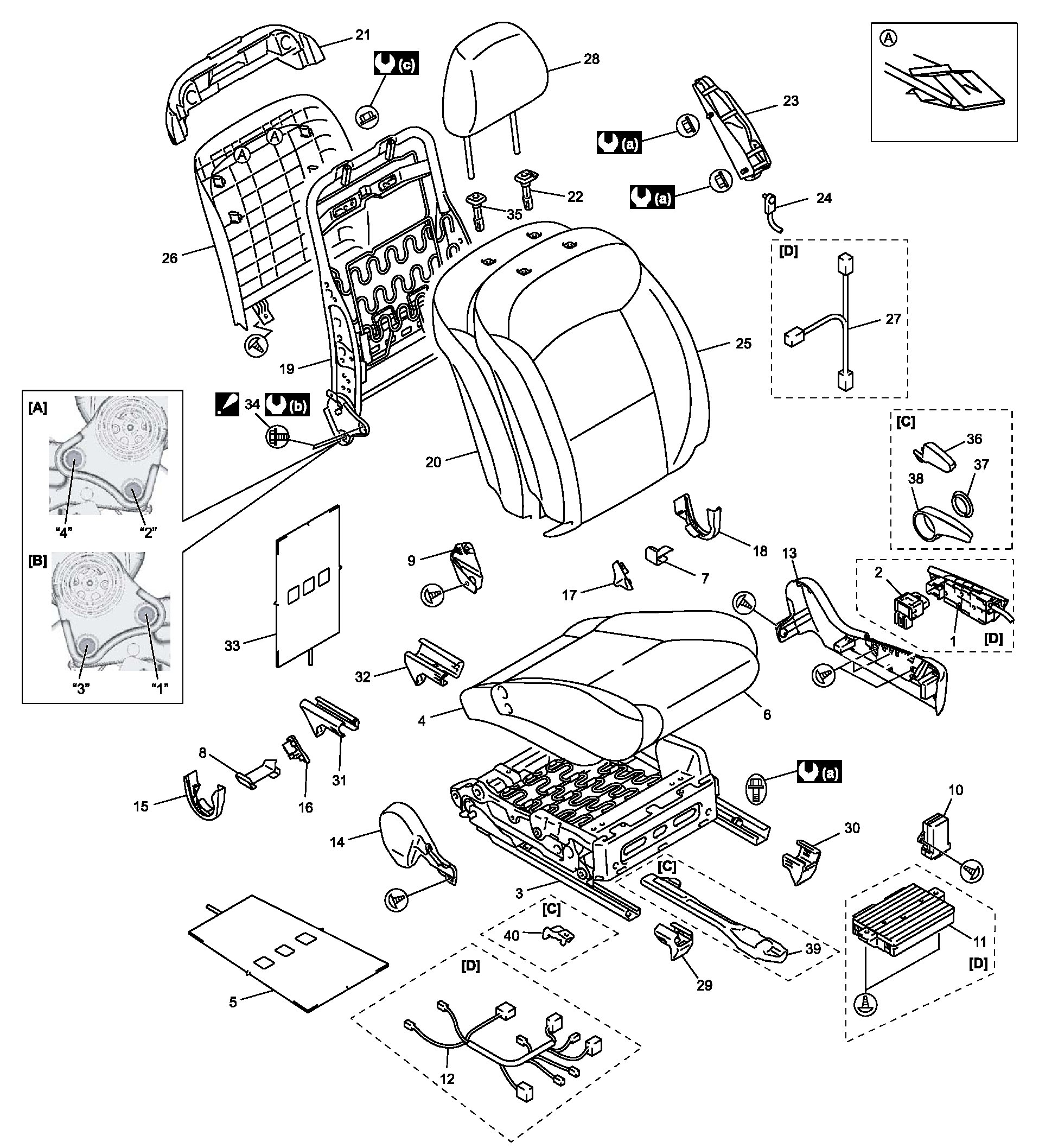

Driver Seat
