Crankshaft Position Sensor: Service and Repair

CKP Sensor Removal And Installation

Removal
1. Disconnect negative (-) cable at battery.
2. Remove generator.
3. Disconnect connector from CKP sensor.

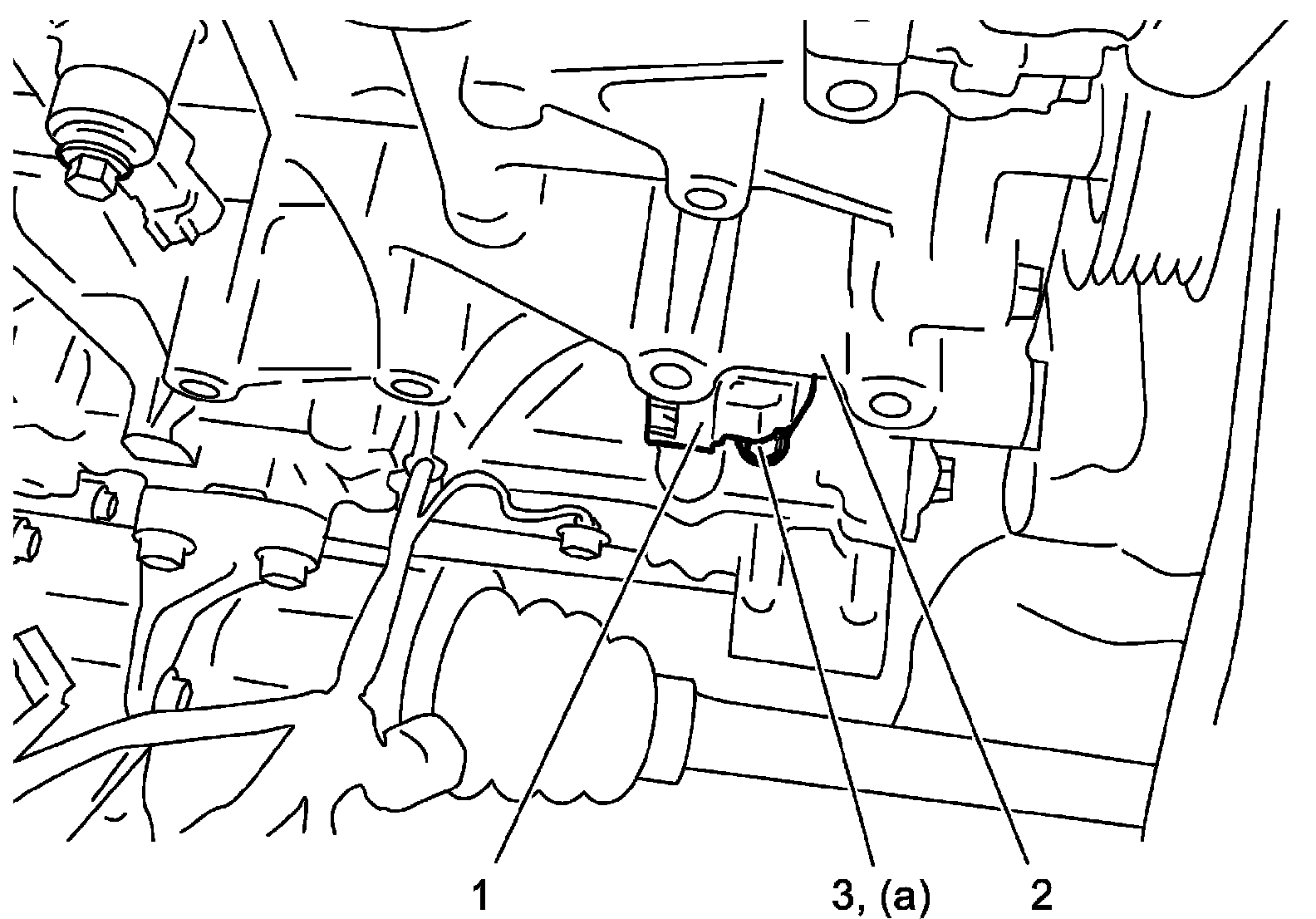

4. Remove CKP sensor (1) from cylinder block (2).

Installation
Reverse removal procedure, noting the following points:
- Apply engine oil to O-ring of sensor.

CAUTION: Use new CKP sensor bolt (3).

- Tighten CKP sensor bolt to specified torque.

Tightening torque
CKP sensor bolt (a): 11 N.m (1.1 kg-m, 8.5 lbf-ft)
