Hatchback Model

Door, Roof

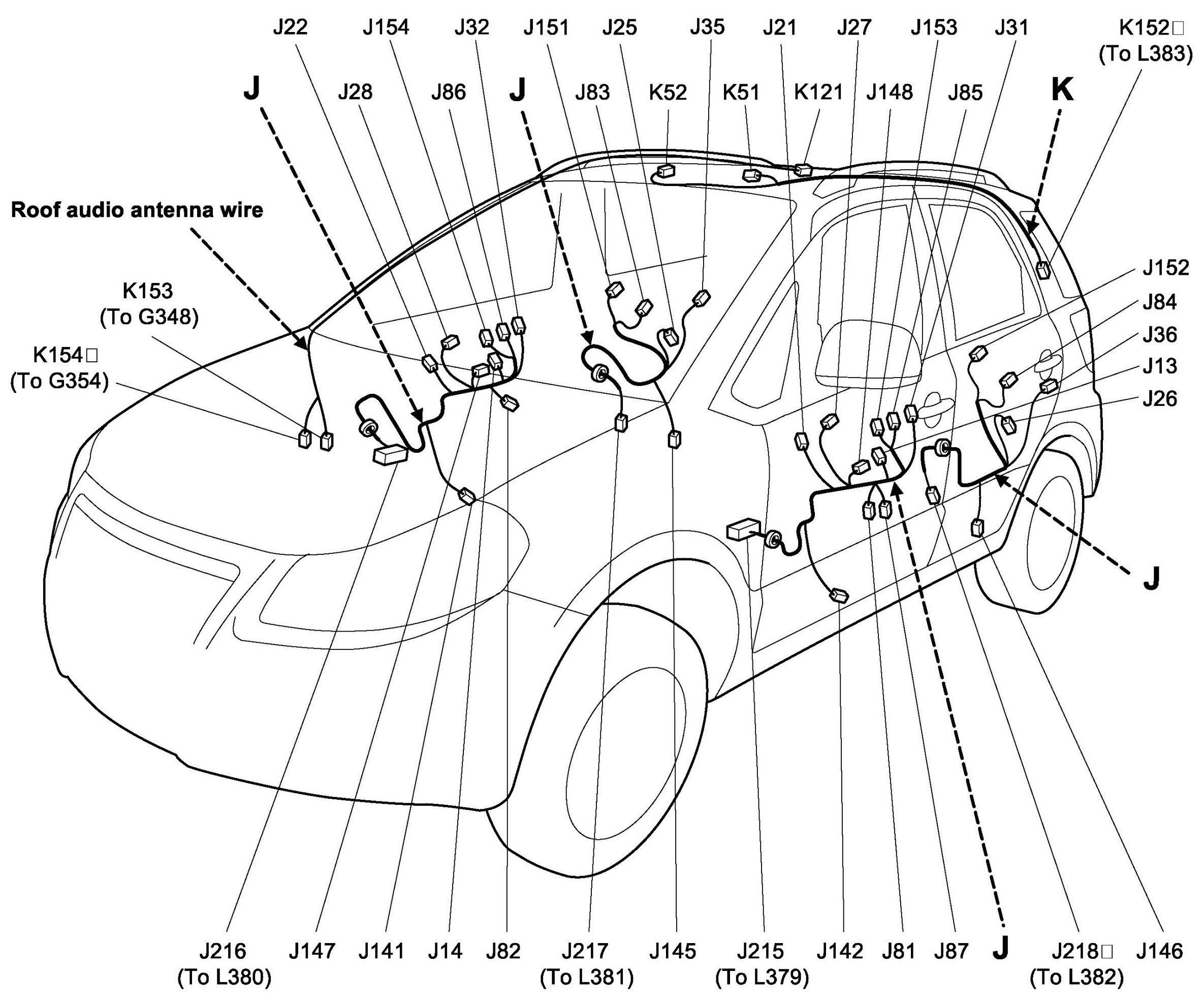

J: Front and Rear Door Wire and Rear Door Wire / K: Roof Wire, Roof Audio Antenna Wire (Hatchback Model)

J: Front And Rear Door Wire And Rear Door Wire / K: Wire, Roof Audio Antenna Wire (Hatchback Model) View:




K: Roof Wire Index:




K: Roof Audio Antenna Wire Index:
