System Specifications

Timing chain tensioner 11 Nm (1.1 kg-m, 8.5 lbf-ft)

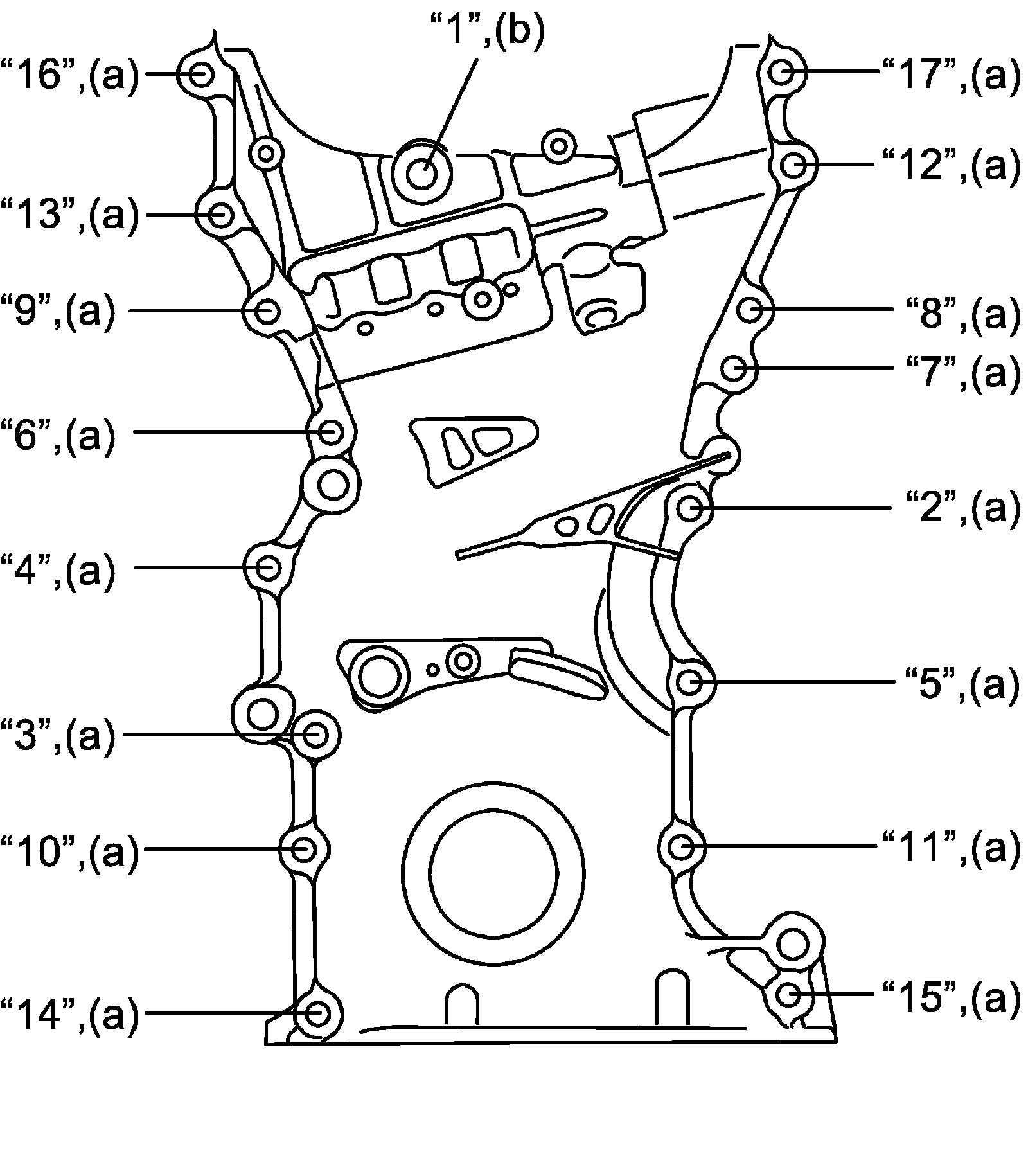

Timing cover





M8 bolt (a) 25 Nm (2.5 kg-m, 18.5 lbf-ft)
M10 bolt (b) 55 Nm (5.6 kg-m, 40.5 lbf-ft)

Crankshaft pulley 150 Nm (15.3 kgf-m, 111 ft lb)
