Suzuki
>>
2011
>>
SX4 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
L Connectors
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

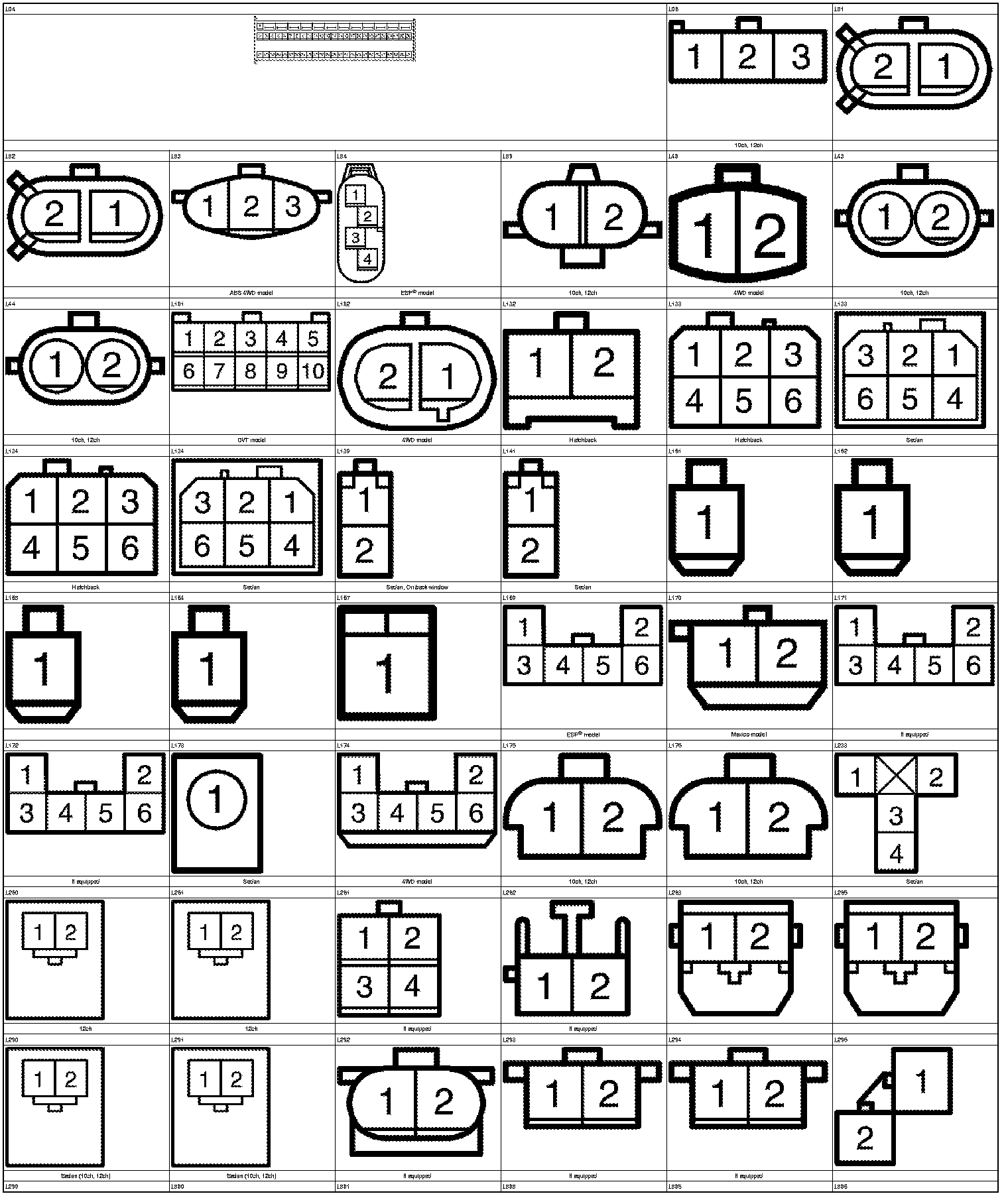

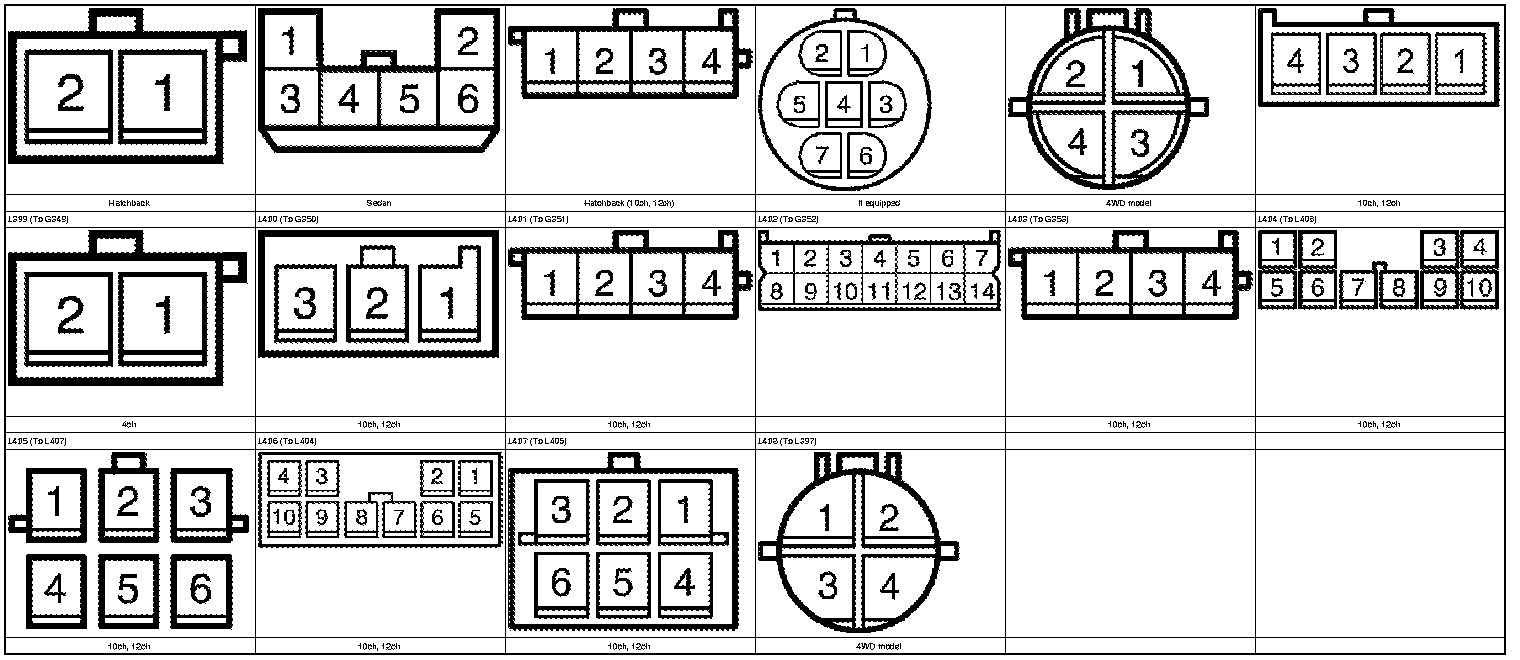

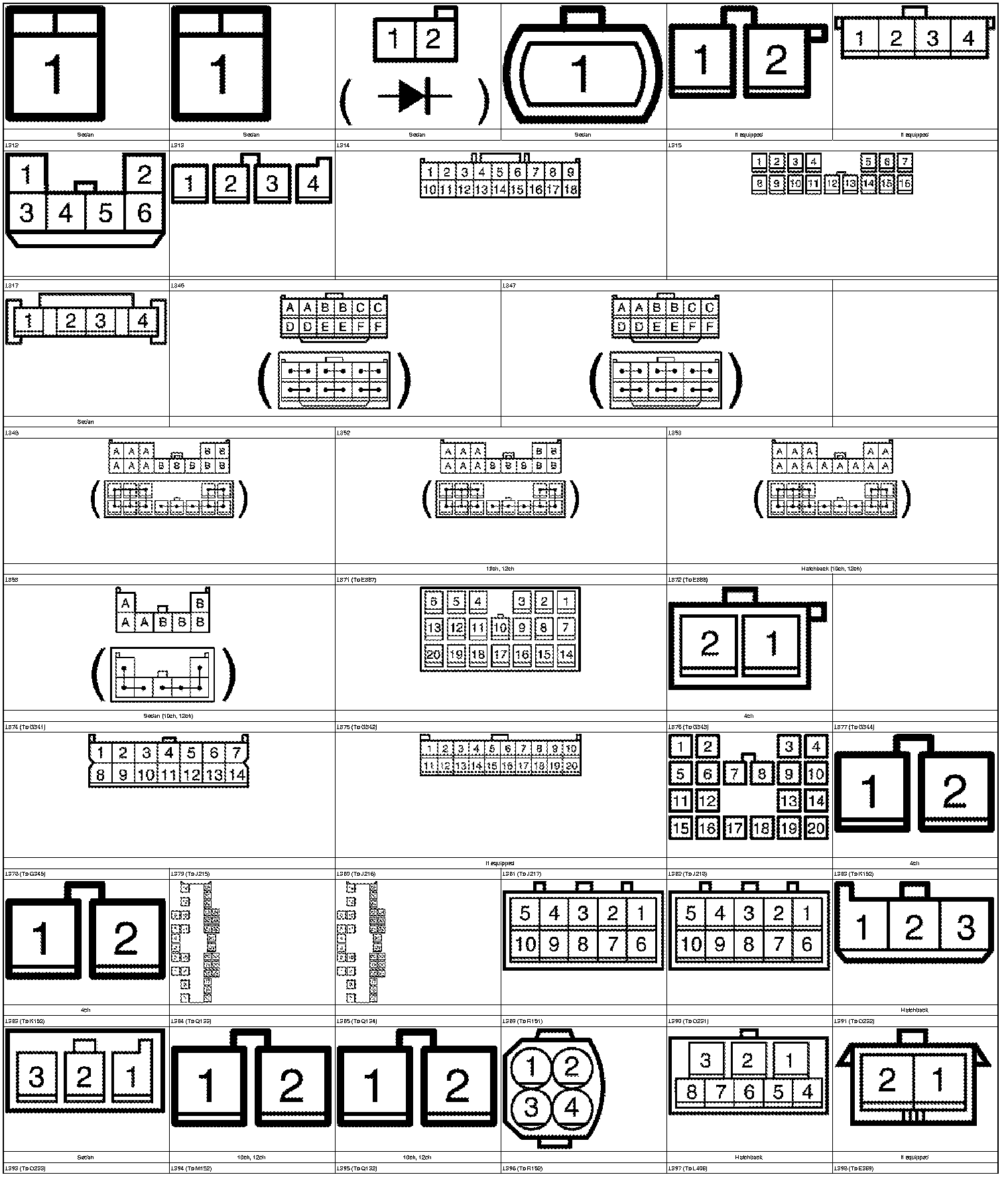

L Connectors
L Connector
