B-9 Keyless Start System Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

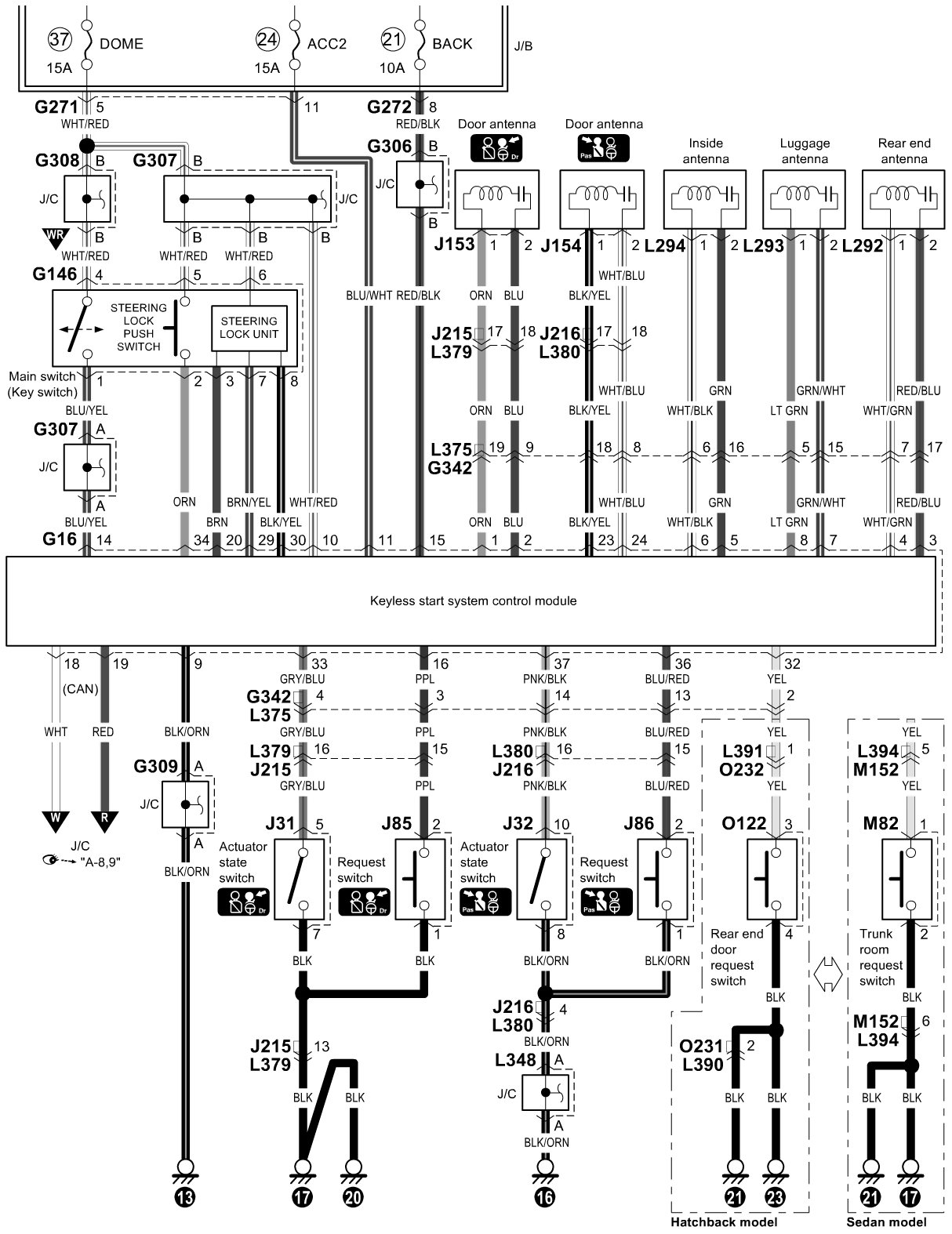

B-9 Keyless Start System Circuit Diagram
B-9 Keyless Start System Circuit Diagram
