Engine Compartment




Engine Compartment

A: Battery Cable / C: Engine Harness

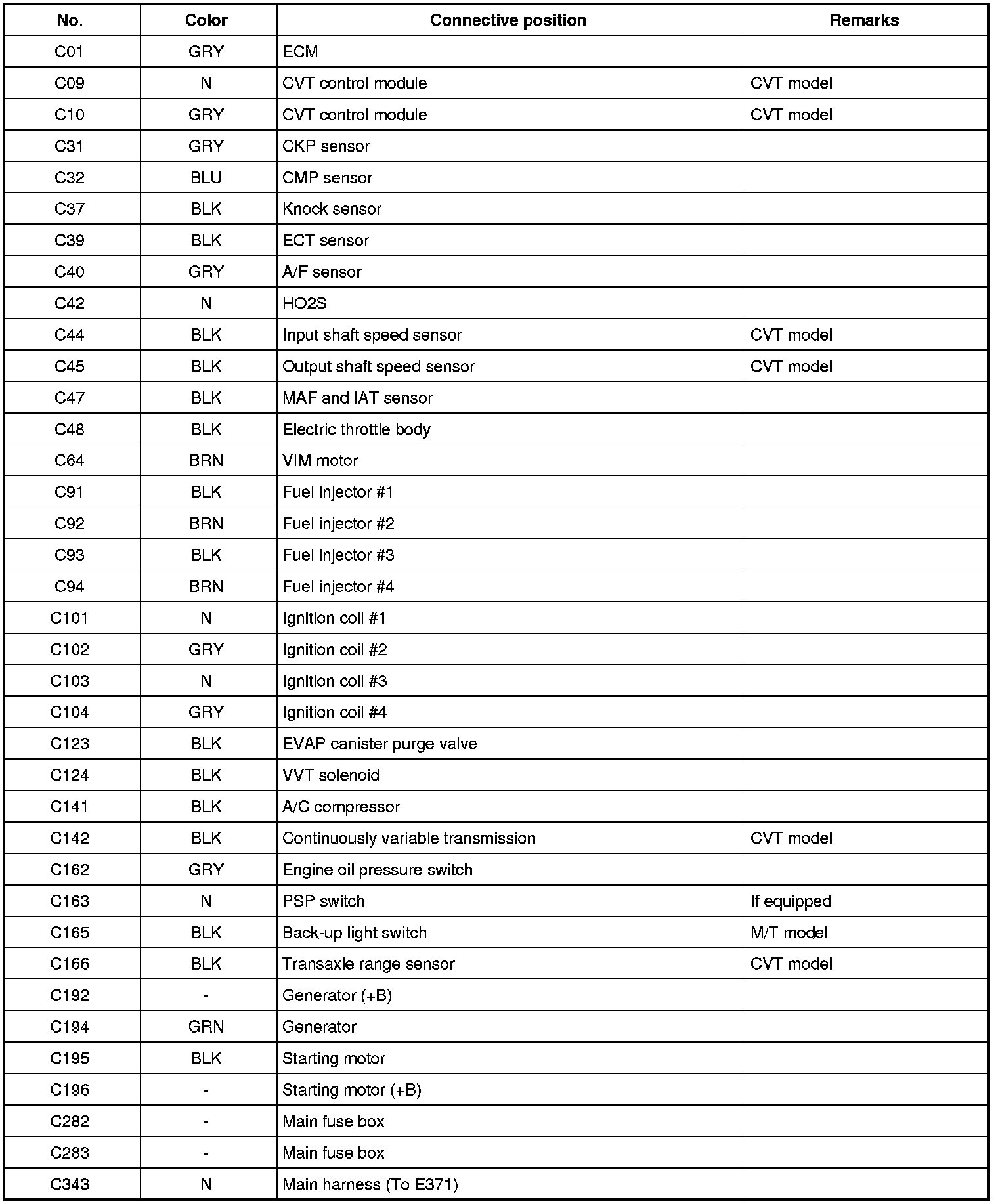

C: Engine Harness

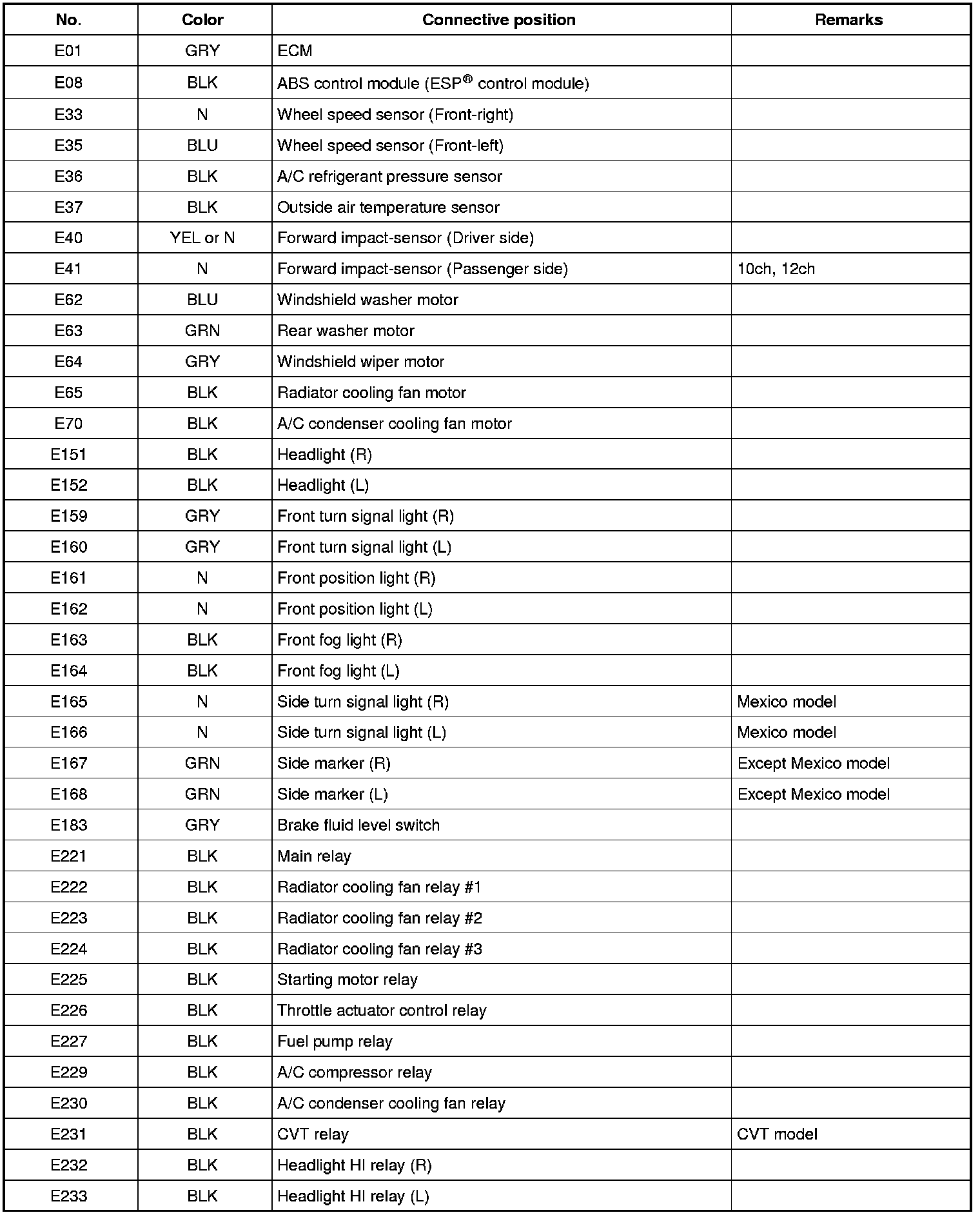

E: Main Harness





E: Main Harness
