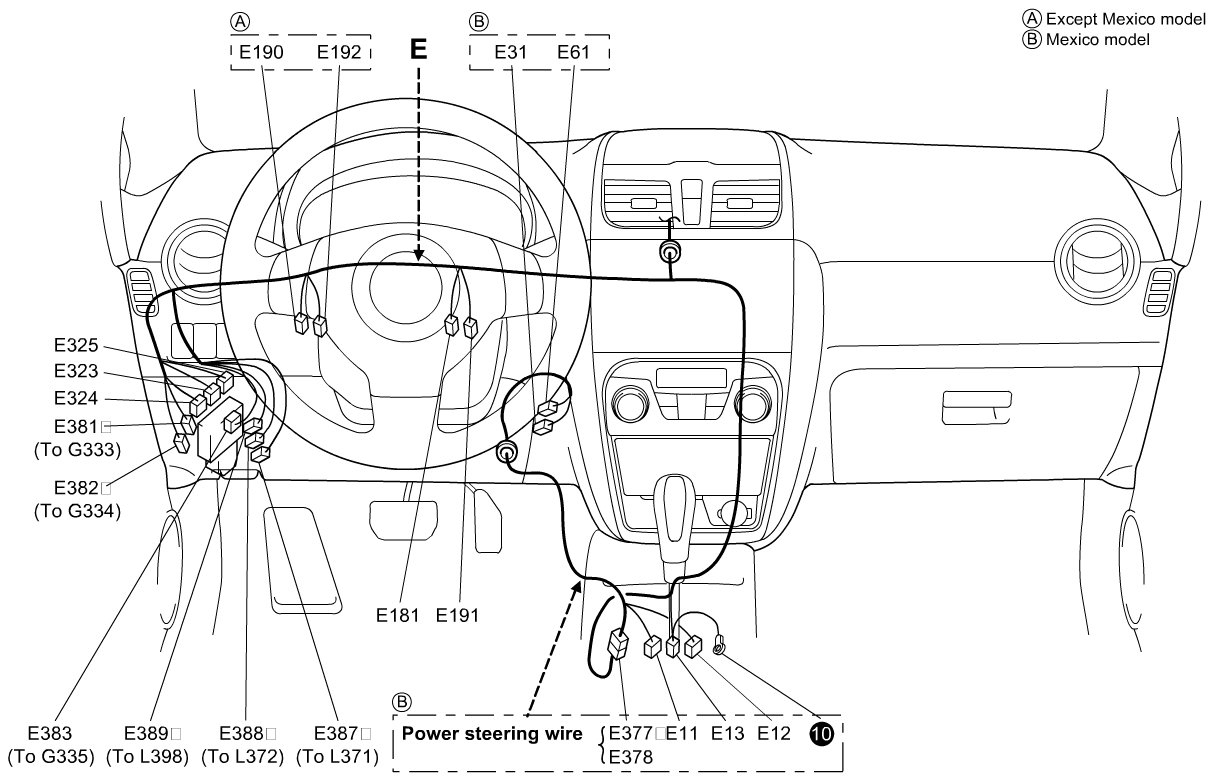

Steering Control Module: Locations




Instrument Panel

E: Main Harness, Power Steering Wire





E: Main Harness





E: Power Steering Wire (Mexico Model)
