Ignition Coil: Exploded View

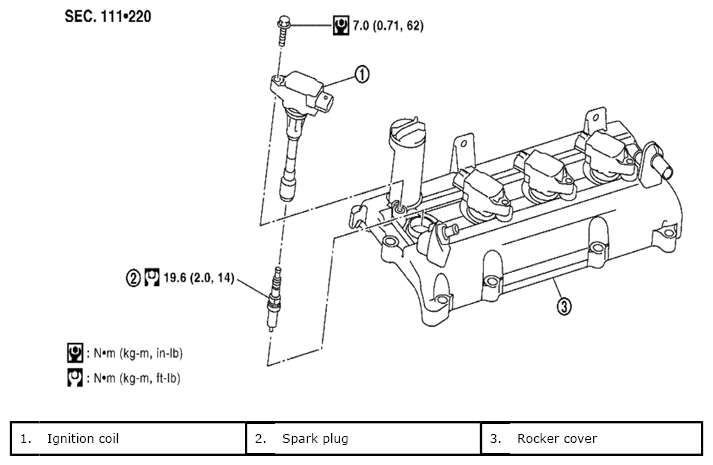

Fig 1: Exploded View Of Ignition Coil With Torque Specifications
G06444605Courtesy of SUZUKI OF AMERICA CORP.
