Front Carrier, Input Clutch, Rear Internal Gear: Disassembly and Assembly: Components

WARNING: This page is about a different variant/trim than selected.

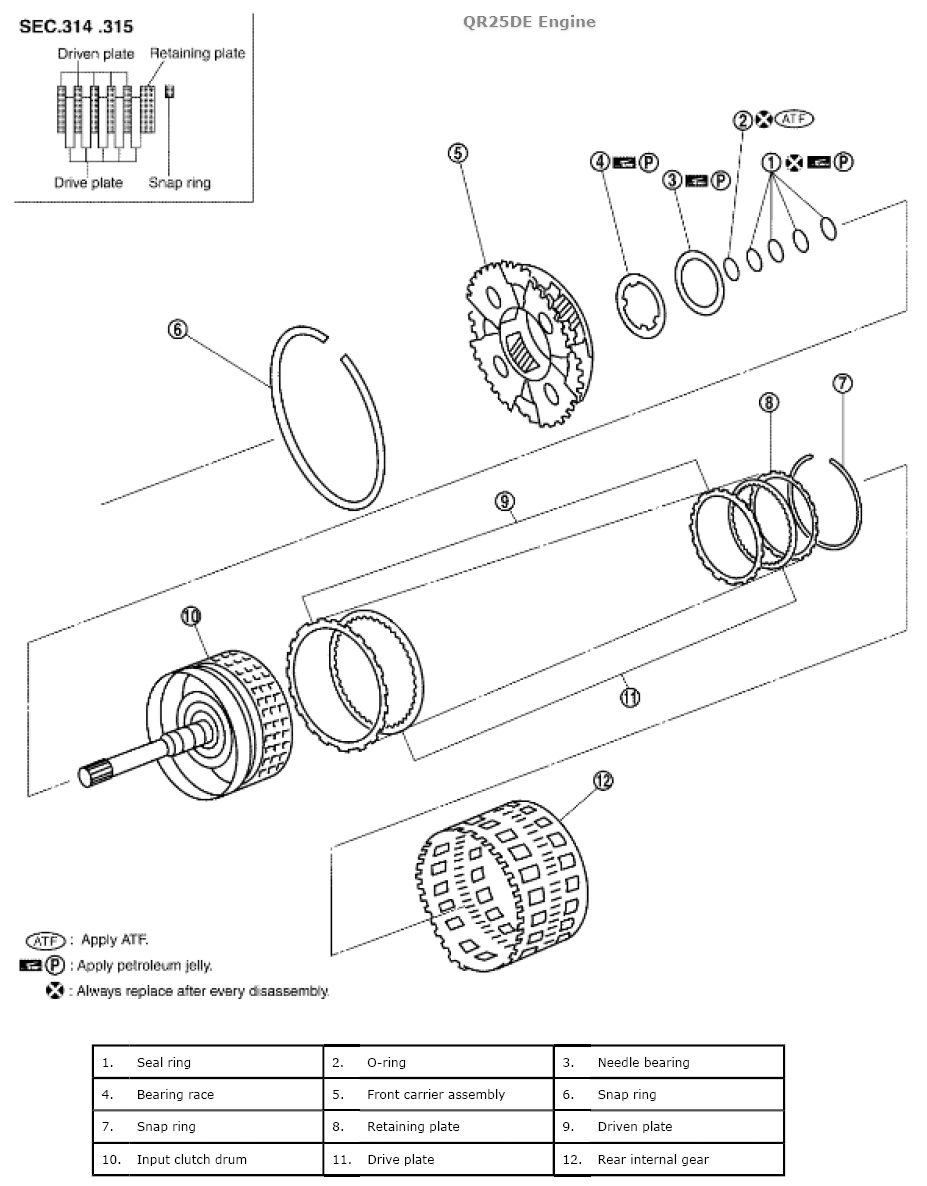

Fig 1: Identifying Front Carrier, Input Clutch, Rear Internal Gear Components - QR25DE Engine

Courtesy of SUZUKI OF AMERICA CORP.

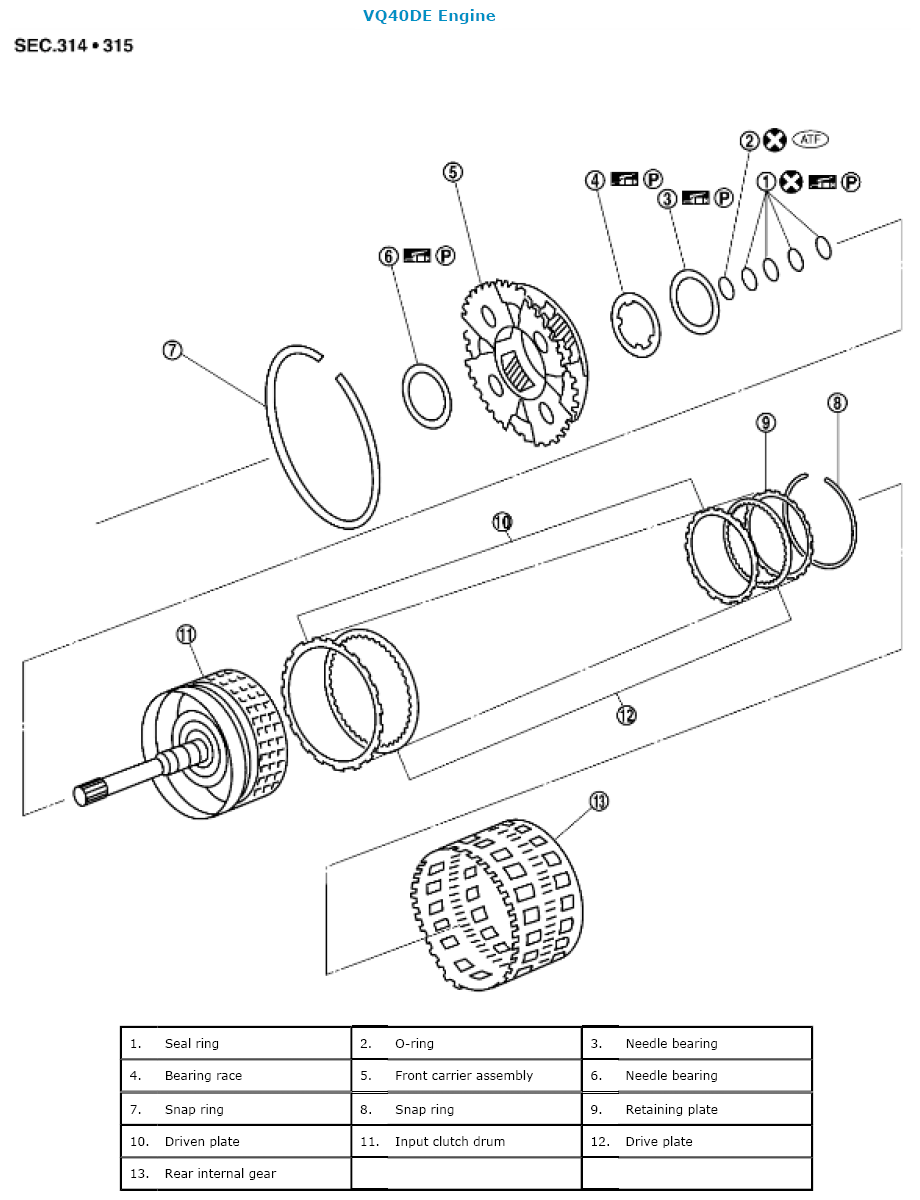

Fig 2: Identifying Front Carrier, Input Clutch, Rear Internal Gear Components - VQ40DE Engine

Courtesy of SUZUKI OF AMERICA CORP.
