Communication Devices
>>
Communication System
>>
General Description
>>
CAN Communication System Description
>>
System Block Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

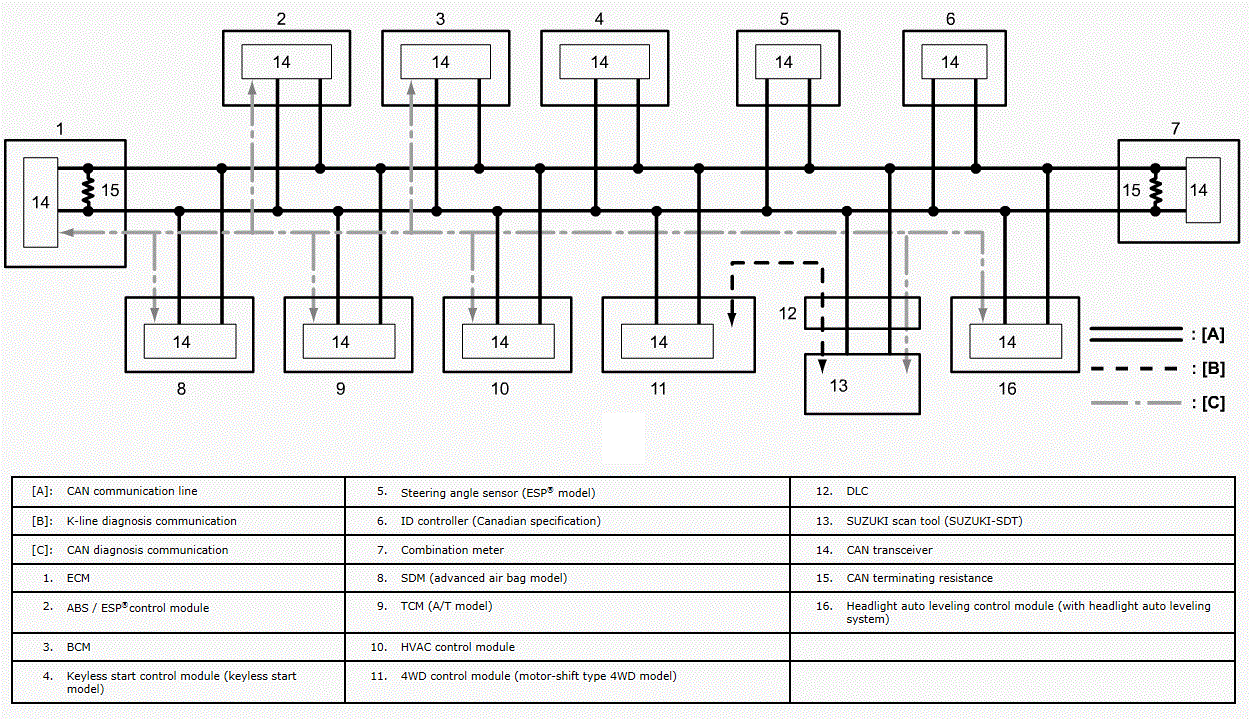

System Block Diagram
Fig 1: CAN Communication System Block Diagram
Courtesy of SUZUKI OF AMERICA CORP.
