Door, Roof

Door, Roof

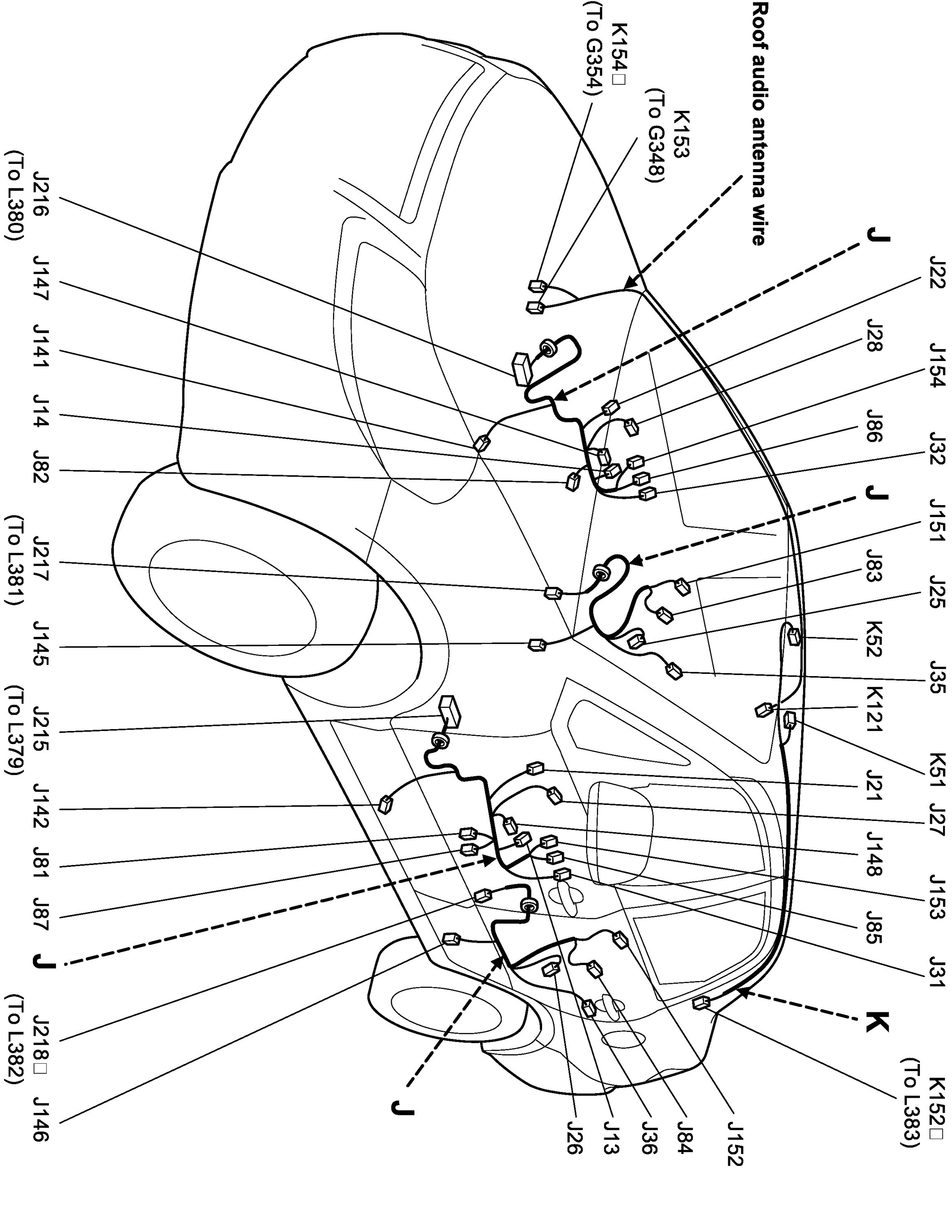

J: Front and Rear Door Wire and Rear Door Wire / K: Roof Wire, Roof Audio Antenna Wire (Hatchback)

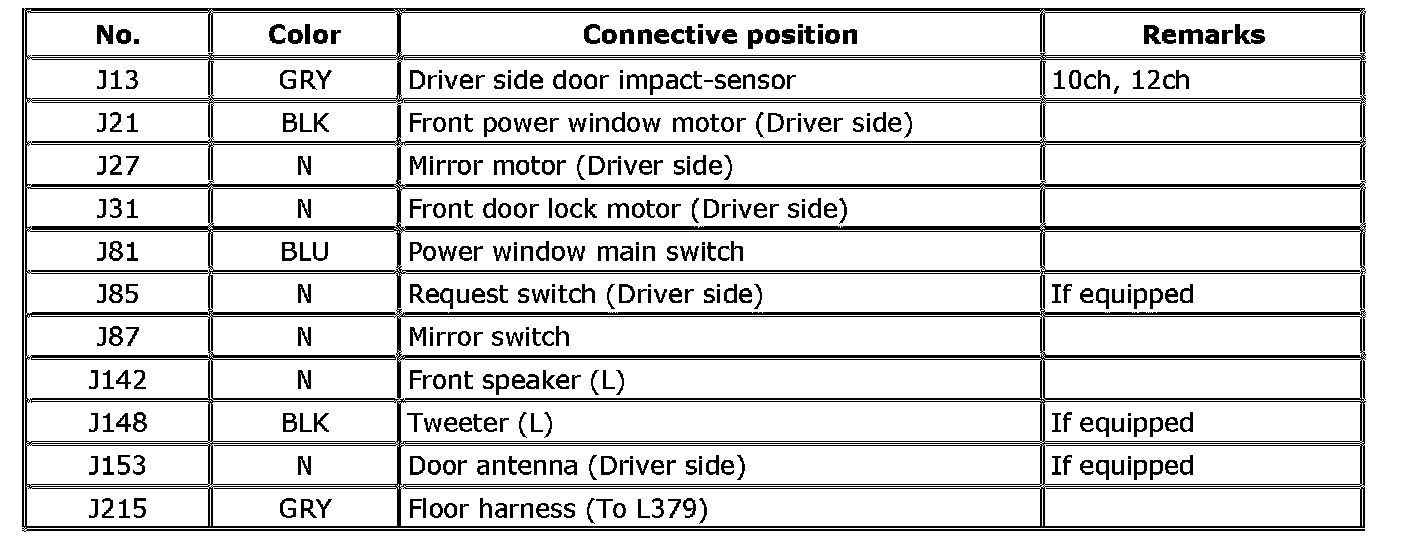

J: Door Harness (Driver Side)

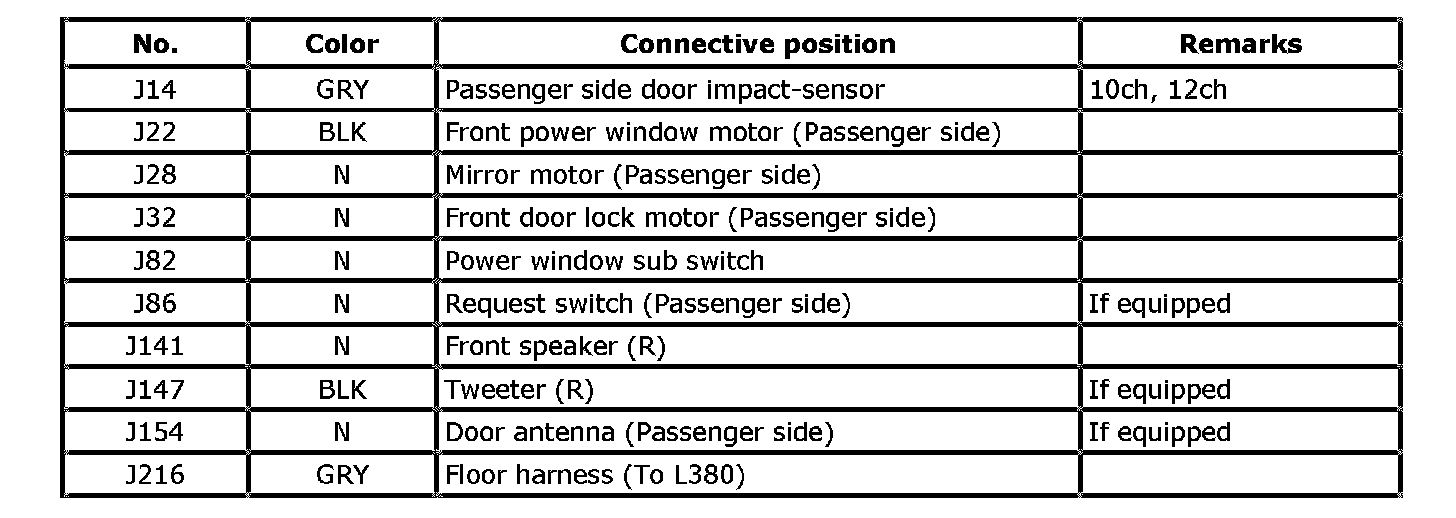

J: Door Harness (Passenger Side)

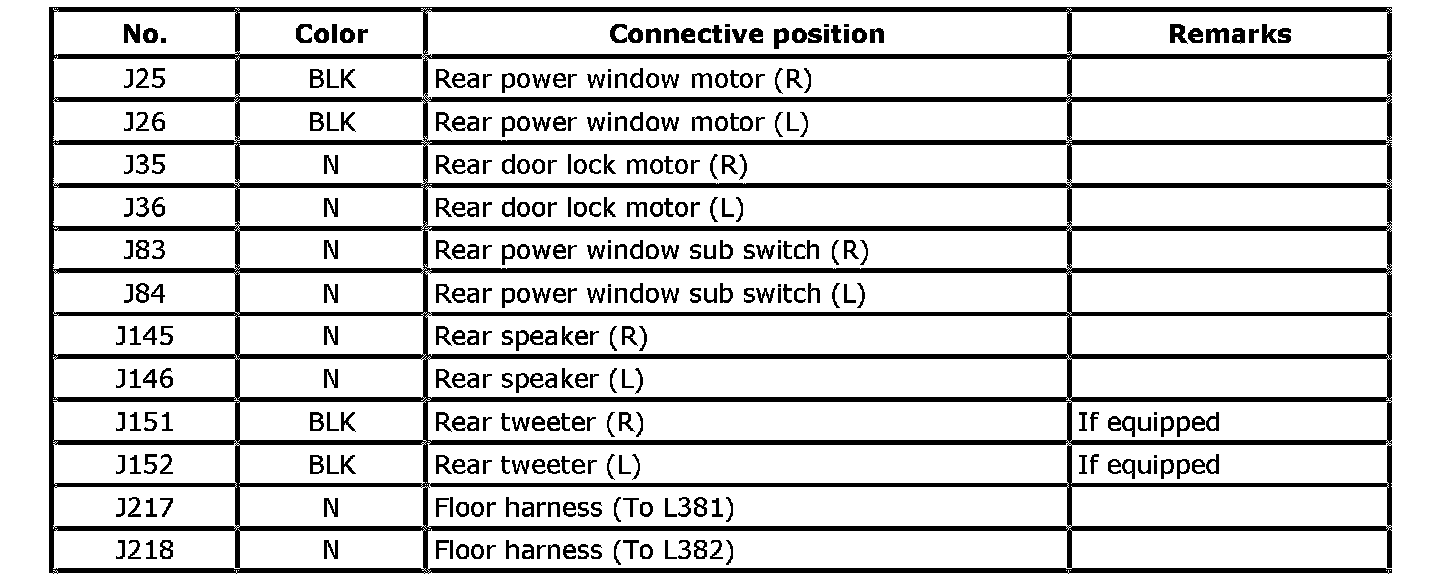

J: Rear Door Wire

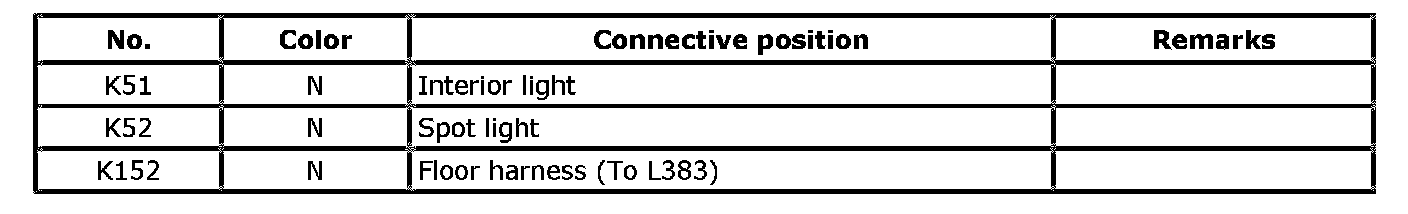

K: Roof Wire

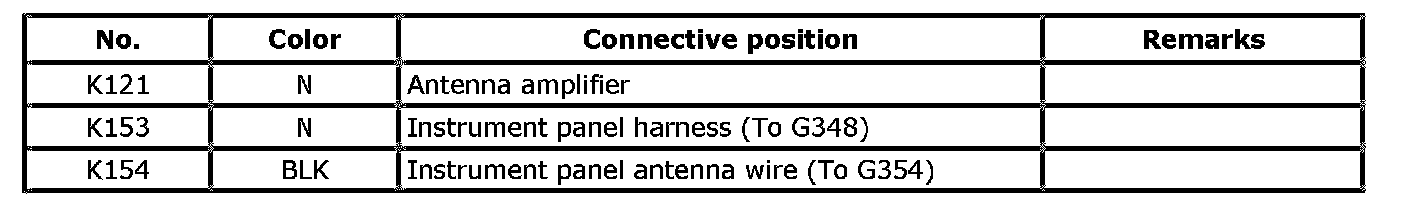

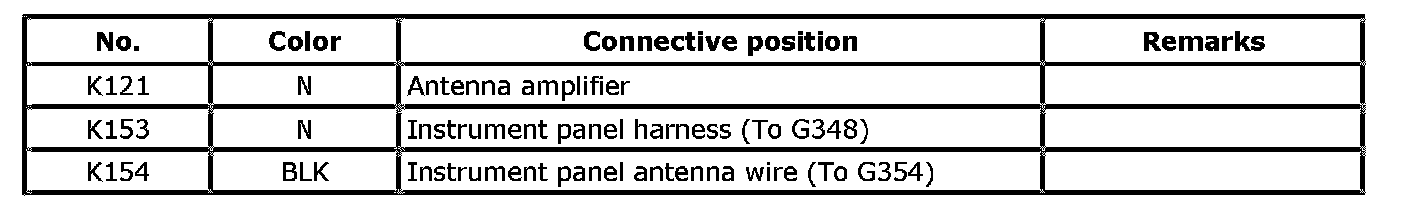

K: Roof Audio Antenna Wire

J: Front and Rear Door Wire and Rear Door Wire / K: Roof Wire, Roof Audio Antenna Wire (Sedan)

J: Door Harness (Driver Side)

J: Door Harness (Passenger Side)

J: Rear Door Wire

K: Roof Wire

K: Roof Audio Antenna Wire
