Fluid Pan, CVT

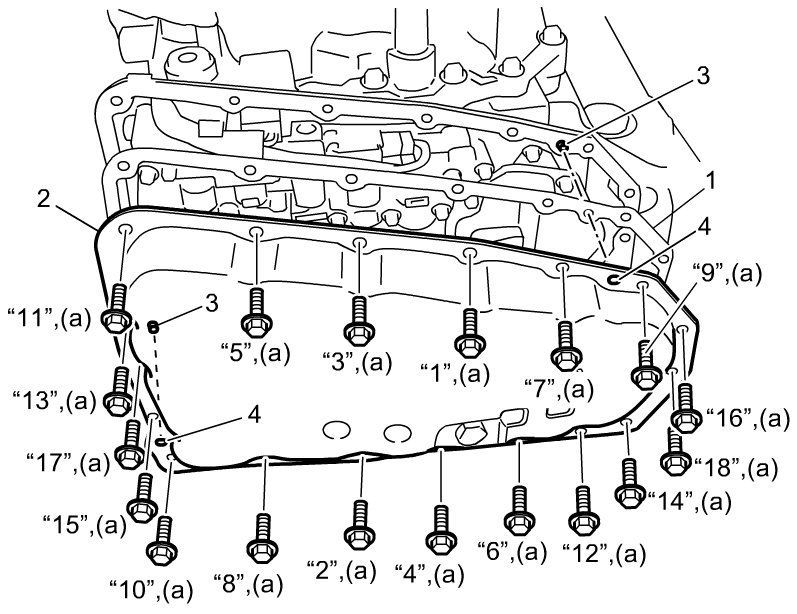

CVT Oil Pan

Tightening torque
CVT oil pan bolt* (a): 7.9 Nm (0.81 kgf-m, 6.0 lbf-ft)

Tighten CVT oil pan bolts in numerical order ("1" - "18") evenly and gradually to specified torque.
