Power Window Main Switch Inspection

Power Window Main Switch Inspection

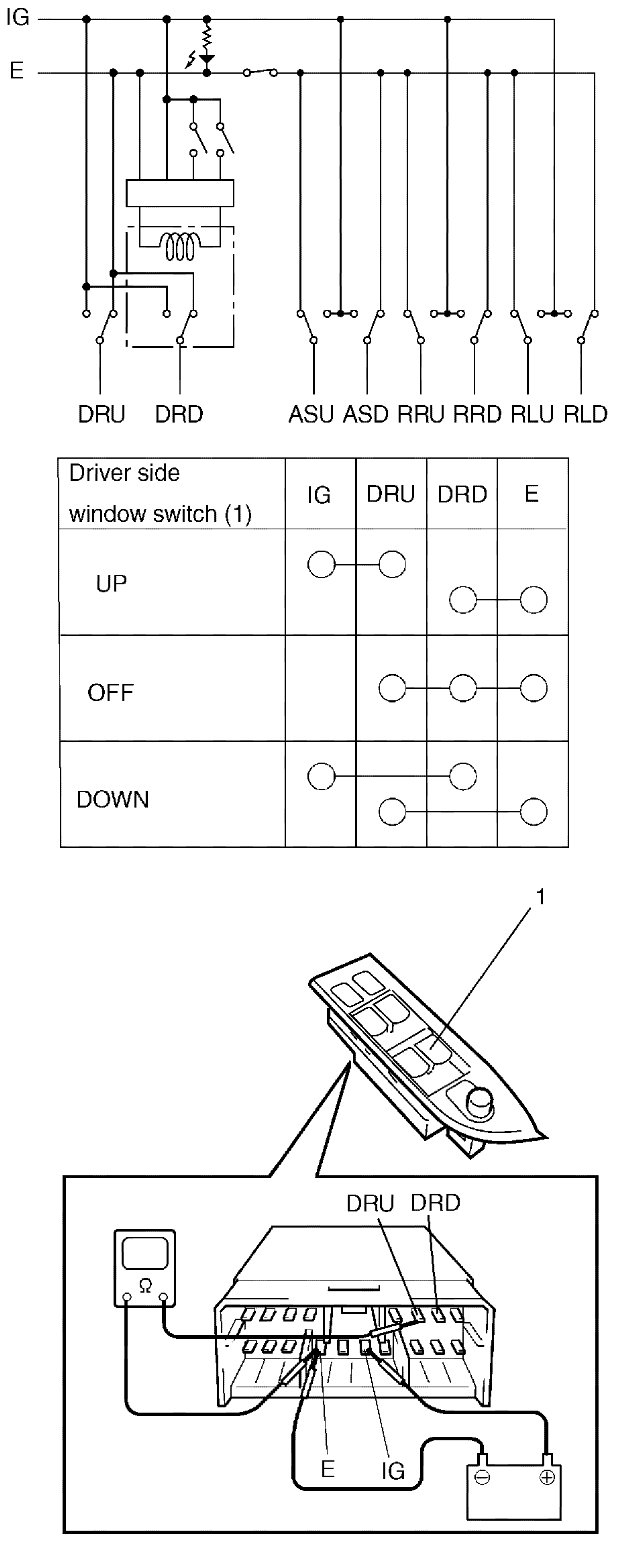

Switch for driver side window

1) Remove driver side door trim referring to step 1) to 3) of Front Door Glass Removal and Installation Front Door Glass Removal and Installation.
2) Remove power window main switch from door trim.
3) Connect 12 V battery positive (+) terminal to terminal "IG" of power window main switch and its negative (-) terminal to terminal "E" of power window main switch.
4) Check for continuity between terminals as shown below.

If check result is not as specified, replace power window main switch.

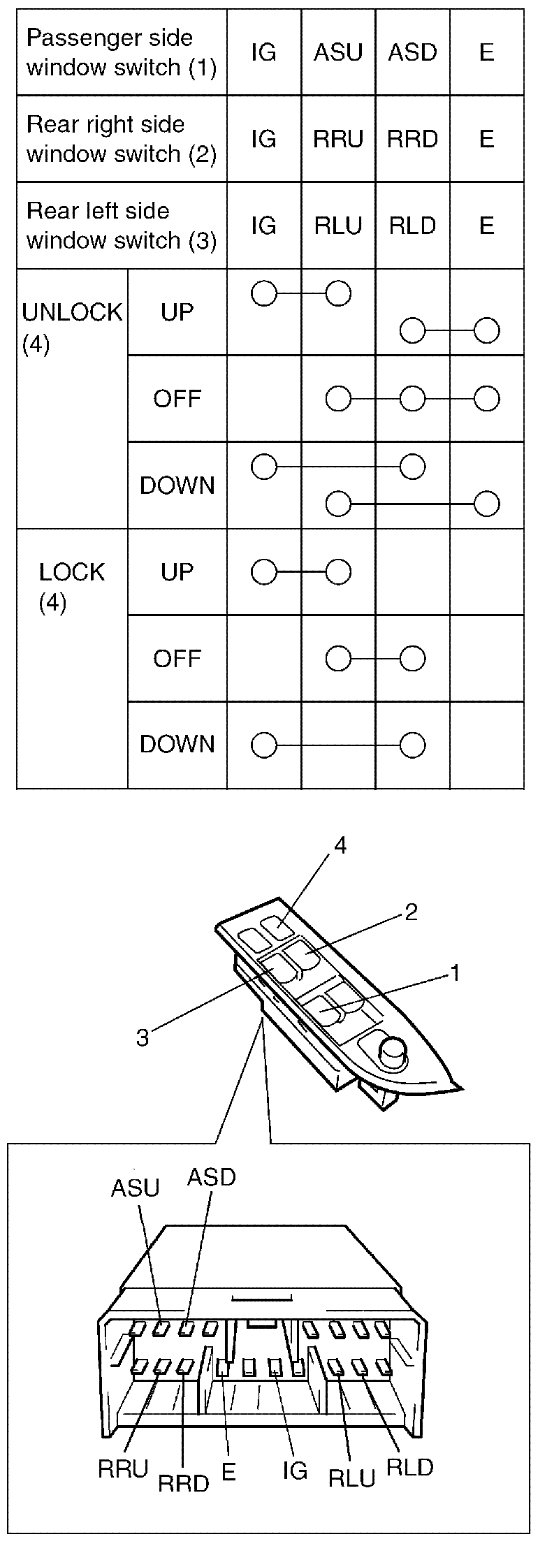

Switch for other window than driver side

1) Remove driver side door trim referring to step 1) to 3) of Front Door Glass Removal and Installation Front Door Glass Removal and Installation.
2) Remove power window main switch from door trim.
3) Check for continuity between terminals as shown below.

If check result is not as specified, replace power window main switch.
