F-4 Power Steering System Circuit Diagram (Mexico Model)

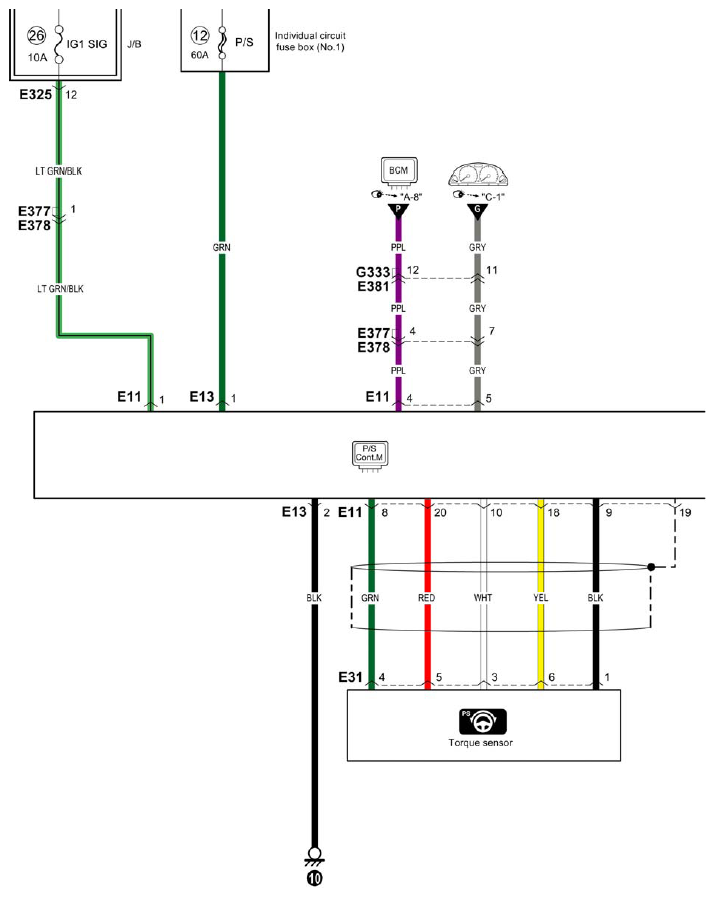

Fig 1: F-4 Power Steering System Circuit Diagram (Mexico Model) (1 Of 2)
G06871278Courtesy of SUZUKI OF AMERICA CORP.

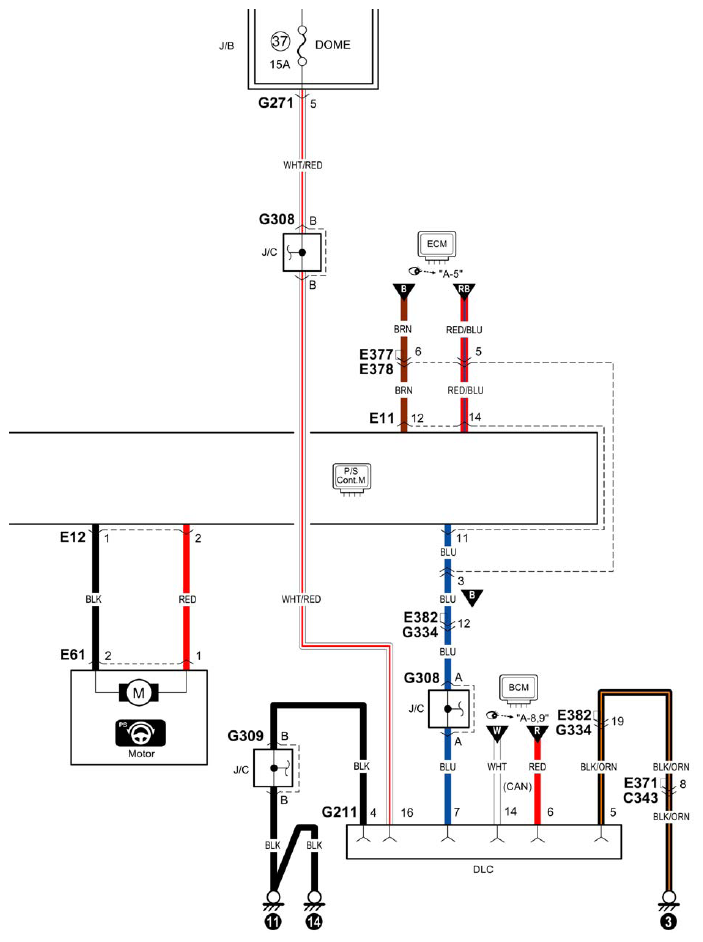

Fig 2: F-4 Power Steering System Circuit Diagram (Mexico Model) (2 Of 2)
G06871279Courtesy of SUZUKI OF AMERICA CORP.
