Reassembling Note for Wiring Harness
>>
Around Strut
>>
Left Side
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Left Side

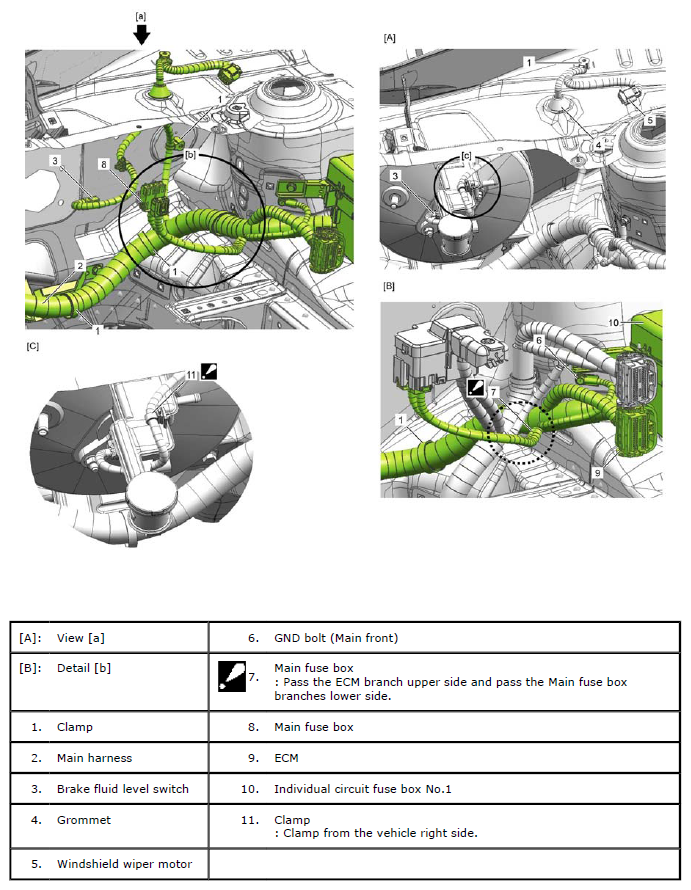

Fig 1: Identifying Around Strut Harness - Left Side
Courtesy of SUZUKI OF AMERICA CORP.
