G-2 Accessory Socket System Circuit Diagram

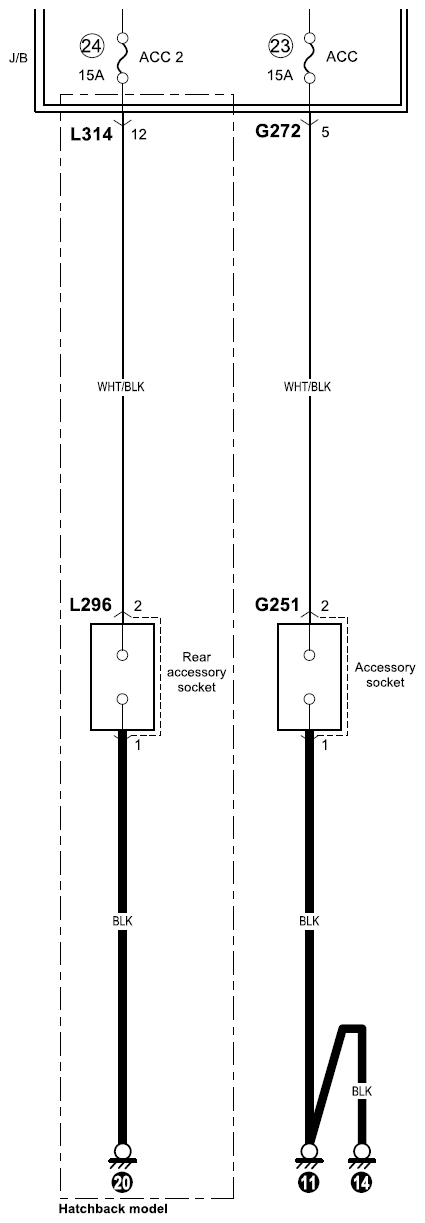

Fig 1: G-2 Accessory Socket System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
