Hill Descent Control Switch Inspection

Reference: HILL DESCENT CONTROL SWITCH REMOVAL AND INSTALLATION

Check for continuity between terminals at each switch position.

If check result is not as specified, replace hill descent control switch (1).

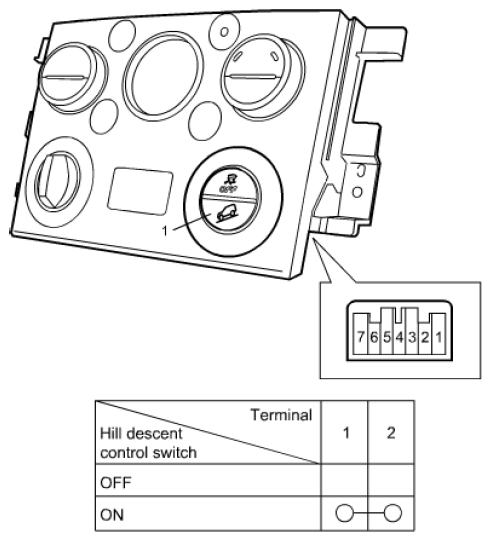

Fig 1: Hill Descent Control Switch Continuity Reference Chart

Courtesy of SUZUKI OF AMERICA CORP.
