Fuel Delivery System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

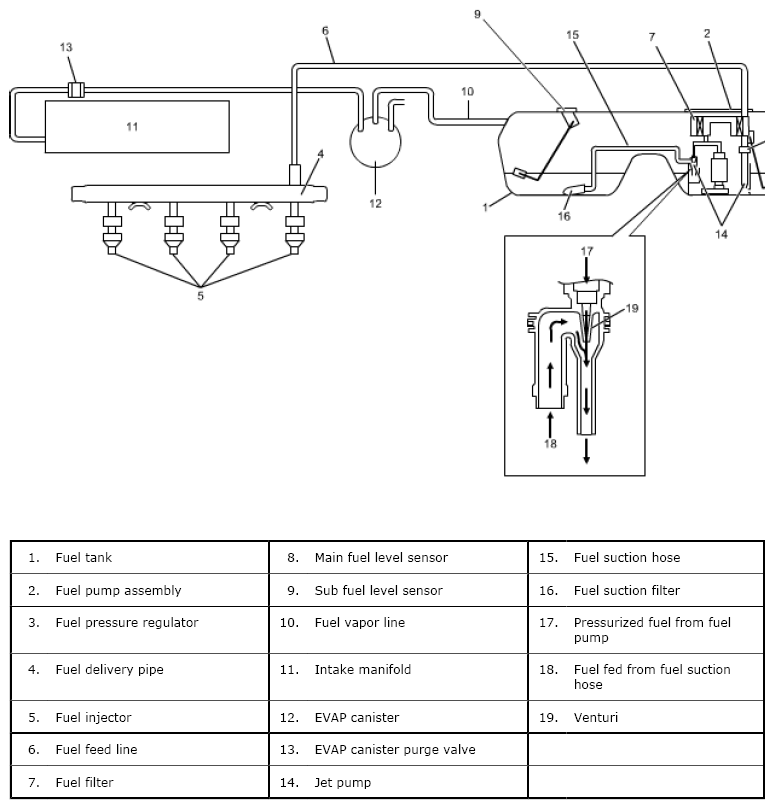

Fuel Delivery System Diagram
Fig 1: Fuel Delivery System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
