Fuel Pump Control System Circuit Diagram

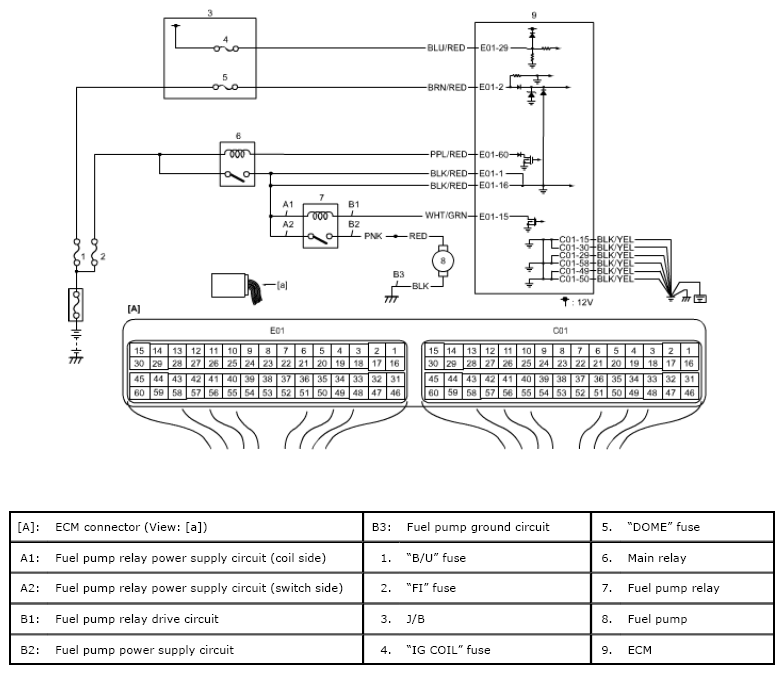

Fig 1: Fuel Pump Control System Circuit Diagram
G06526519Courtesy of SUZUKI OF AMERICA CORP.
