Suzuki
>>
2013
>>
Kizashi Base, Standard Trans
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Power Assisted Steering System
>>
Diagnostic Information and Procedures
>>
P/S Control Module Power Supply and Ground Circuit Check
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

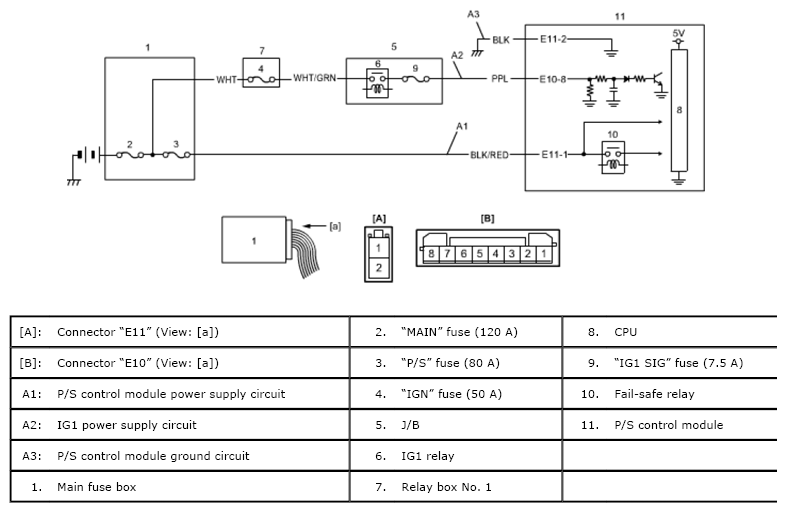

Fig 1: P/S Control Module Power Supply And Ground Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
