Countershaft Components

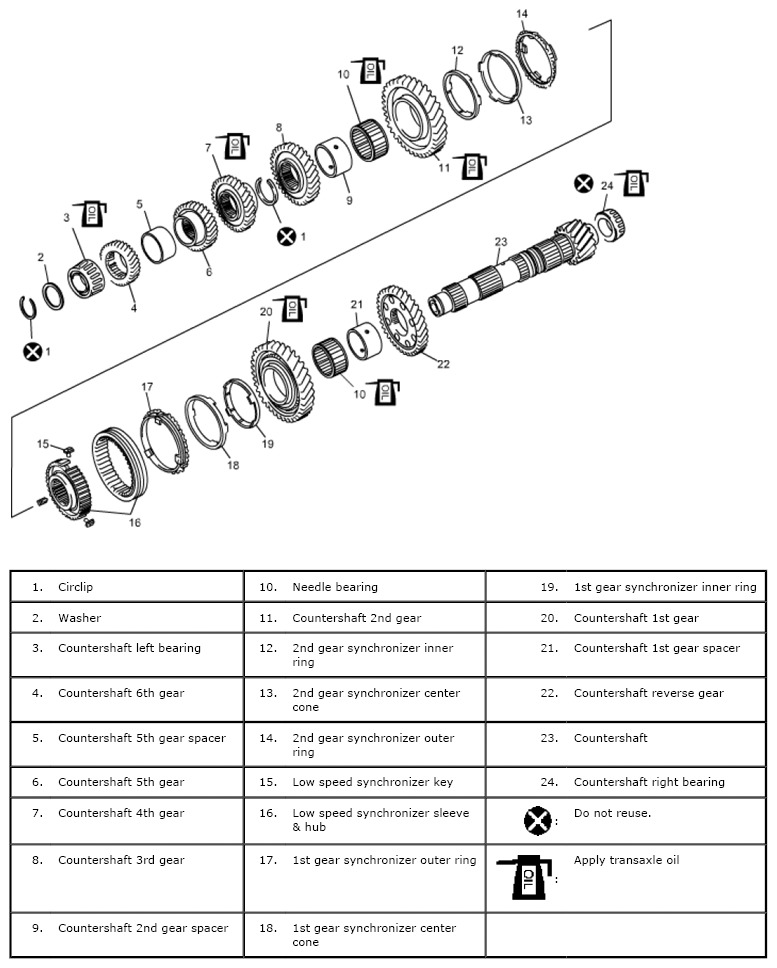

Fig 1: Identifying Countershaft Components
Courtesy of SUZUKI OF AMERICA CORP.
