Overhead Console - Remove And Replace: Removal

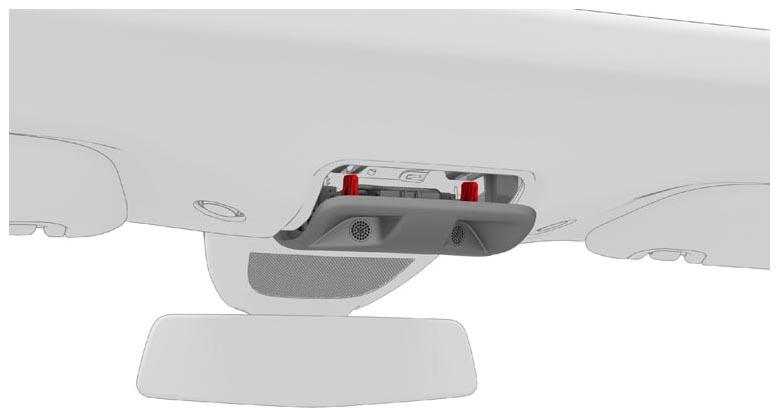

  1. Use a trim tool to release the clips (x2) that attach the rear of the overhead console, and then pull the rear of the overhead console down.
    NOTE: Make sure not to damage the harness connections inside of the headliner.
    G14977310Courtesy of TESLA, INC.

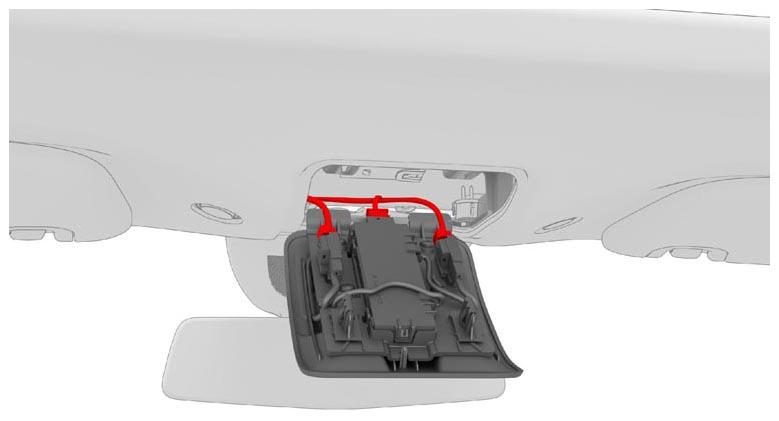

  2. Disconnect the headliner electrical harness from the microphone connectors (x2) and the intrusion sensor connector (if installed), and then remove the overhead console from the vehicle.
    G14977311Courtesy of TESLA, INC.
