Module - Memory Seat - Remove And Replace: Removal

  1. Open the door.
  2. Move the seat height fully upwards for access.
  3. Disconnect 12V power. See Disconnect 12V Power .

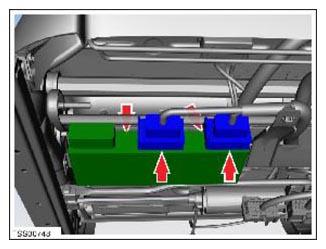

  4. Disconnect the memory seat module harness connections (x2).
    G14976245Courtesy of TESLA, INC.
  5. Release the clips (x2) that secure the memory seat module to the seat.
  6. Remove the memory seat module.
