Liftgate Assembly - Remove And Install: Removal

  1. Power both front seats forward.
  2. Release the catches and fold the rear seat backrests (x2) forward for access.

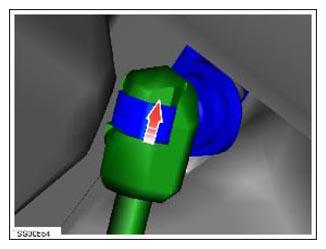

  3. Release the clips (x2) and disconnect the gas struts (x2) from the liftgate mounting bracket ball joints.
    G14974749Courtesy of TESLA, INC.
  4. Remove the LH upper 'C' post trim Trim - C-Pillar - Upper - LH (Remove And Replace) .
  5. Remove the RH upper 'C' post trim.
  6. Remove the rear glass upper trim Finisher - Liftgate - Rear Window - Upper (Remove And Replace) .

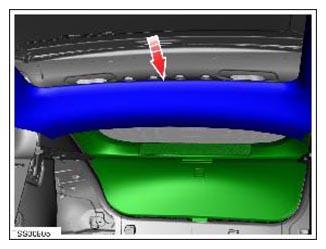

  7. Carefully release the clips (x6) that secure the headlining to the rear header and gently lower the headliner until a suitable tool can be installed onto the hinge nuts (x4).
    CAUTION: Take care not to damage component(s).
    G14974750Courtesy of TESLA, INC.
  8. Disconnect the RH liftgate wiring harness connector.
  9. Disconnect the LH liftgate wiring harness connector.
  10. Release the grommets that secure the wiring harnesses to the body.

    Tip: Tape a string or wire to the end of the wiring harness to make it easier to re-install later.

  11. Pull the wiring harness out of the body.
  12. Mark the installed position of the liftgate hinges to the body.
  13. Cut through the sealant around the edges of the liftgate hinges.
  14. With assistance, support the weight of the liftgate.

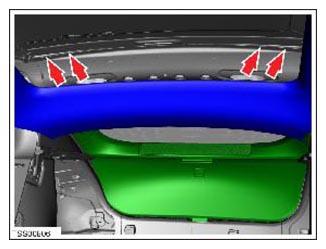

  15. Remove the nuts (x4) that secure the LH and RH liftgate hinges to the body (torque 16 N.m).
    G14974751Courtesy of TESLA, INC.

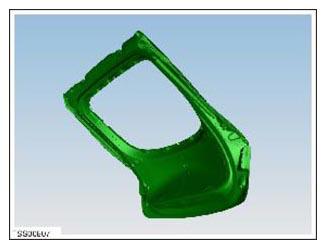

  16. With assistance, remove the liftgate.
    G14974752Courtesy of TESLA, INC.
