Steering Rack (LHD RWD) (2nd Generation) - Remove And Replace: Removal

Remove the front subframe:
- Subframe Assembly - Front - 1st Generation (RWD) (Remove and Install) Subframe Assembly - Front (1st Generation) (RWD) (Remove And Install)
- Subframe Assembly - Front - 2nd Generation (RWD) (Remove and Install) Subframe Assembly - Front (2nd Generation) (RWD) (Remove And Install)

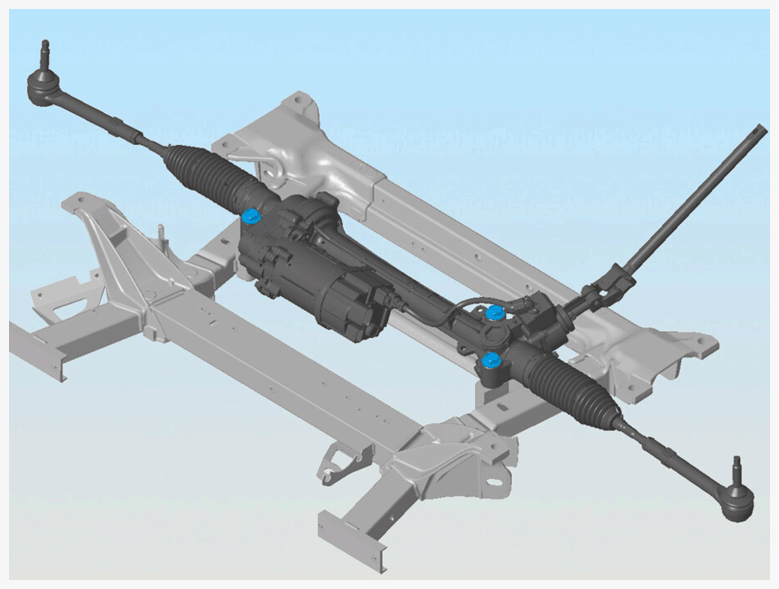

Remove and discard the bolts (x3) that attach the steering rack assembly to the subframe (torque 175 N.m).
CAUTION: Replace all patchbolt(s).

NOTE: Record the positions of any shims.

Courtesy of TESLA, INC.
