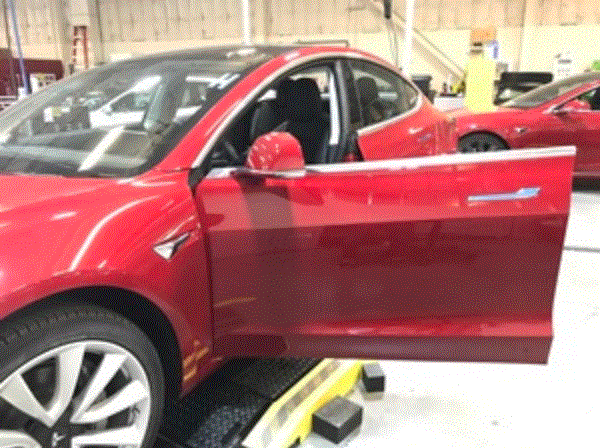

- Open the LH front door.
 Courtesy of TESLA, INC.
|

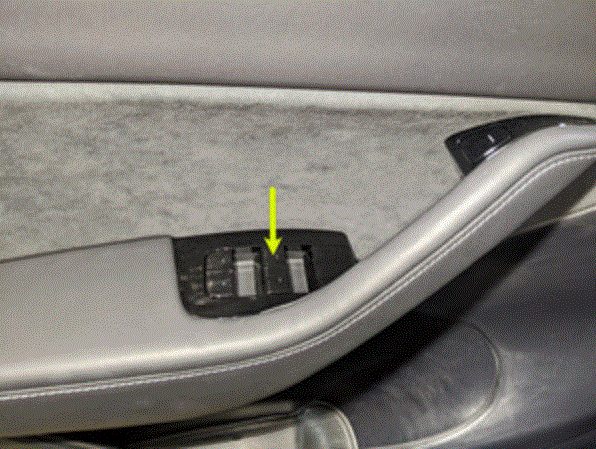

- Lower LH front window.
 Courtesy of TESLA, INC.
|

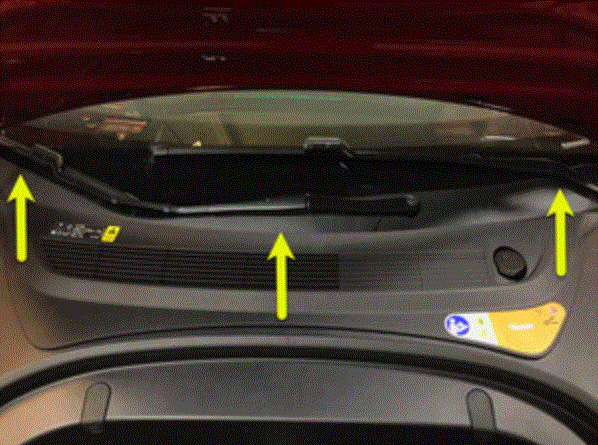

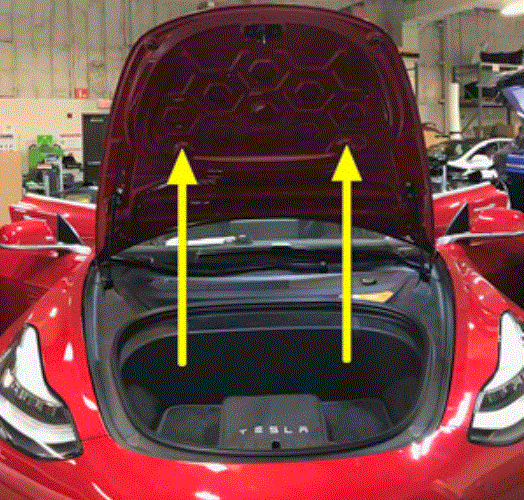

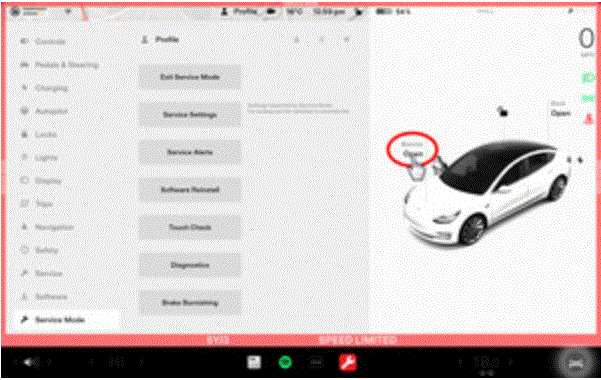

- Open hood.
NOTE:
Press "Open" button on touchscreen to release latch. Lift lid manually.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

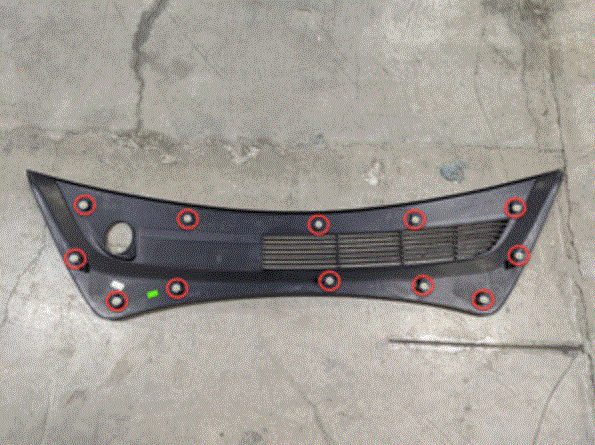

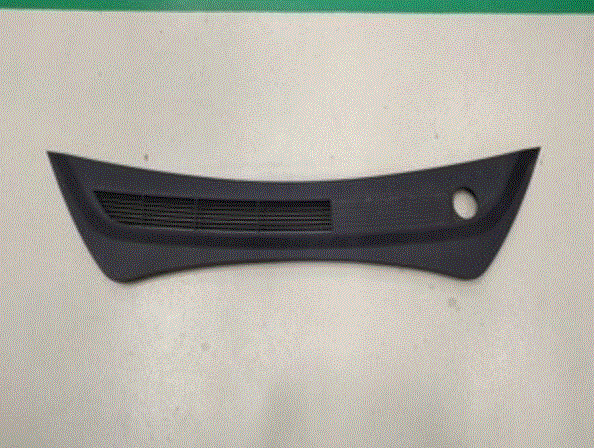

- Remove rear apron.
NOTE:
12x clips. Only store rear apron visible face upwards.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

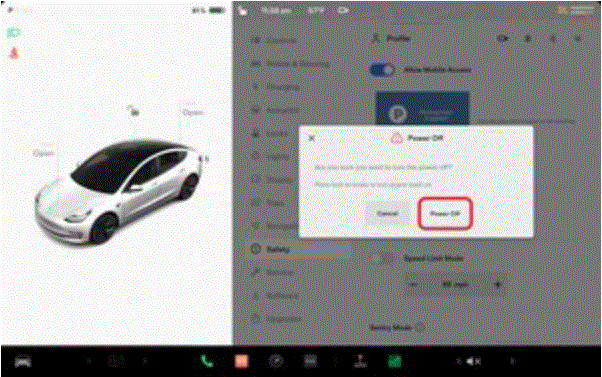

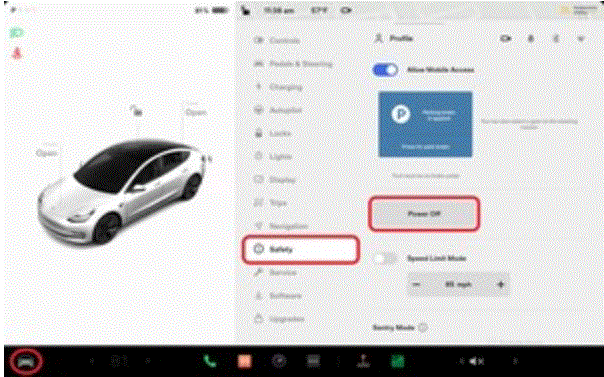

- Power off vehicle from center display.
NOTE:
Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Disconnect 12V negative terminal.
NOTE:
1x nut, 10mm, 6 Nm, Ensure vehicle is in park, climate control system is off, and vehicle is not charging before disconnecting 12V
 Courtesy of TESLA, INC.
|

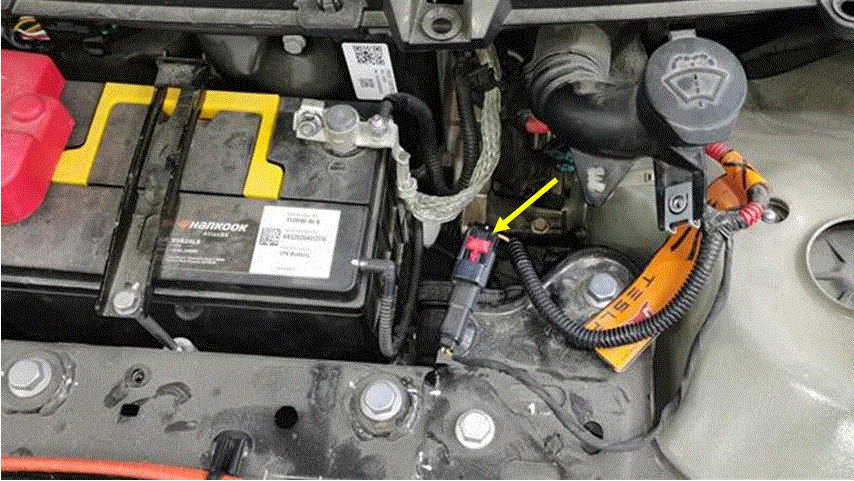

- Disconnect first responder loop.
NOTE:
1x connector, Release locking tab.
 Courtesy of TESLA, INC.
|

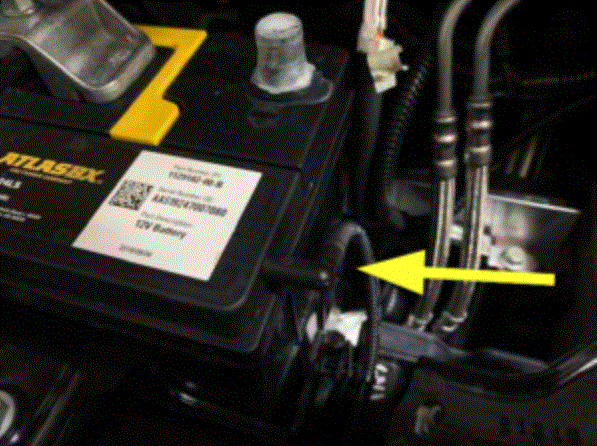

- Remove vent tube hose
NOTE:
1x tube adapter
 Courtesy of TESLA, INC.
|

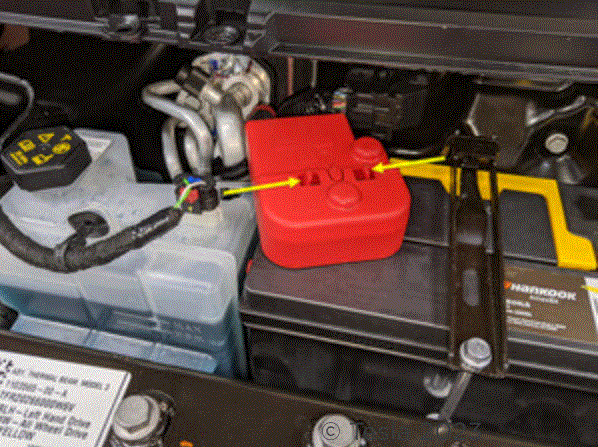

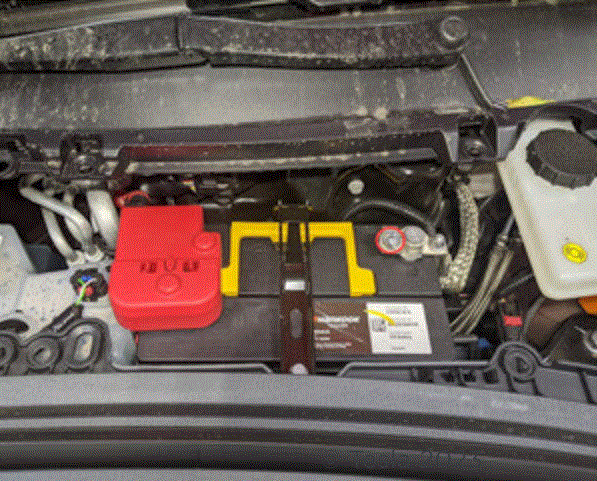

- Release terminal cover and remove positive terminal.
NOTE:
2x clips, 1x nut, 10mm, 6 Nm, Do not fully remove positive terminal nut.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

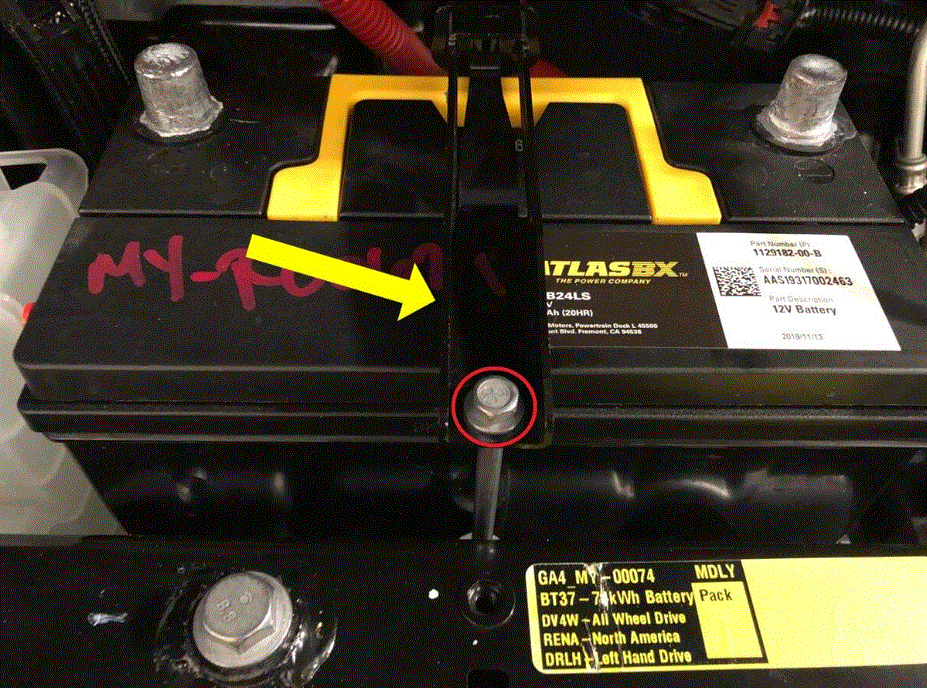

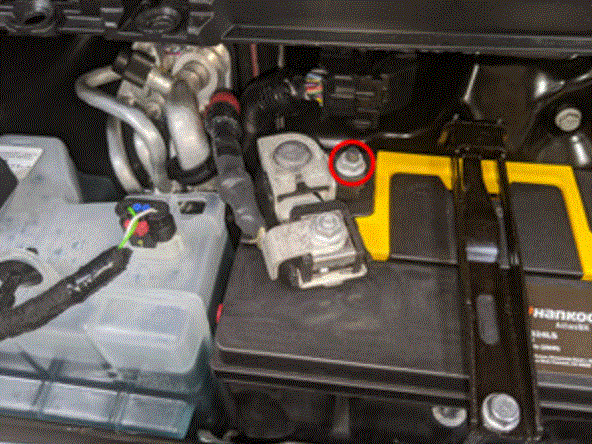

- Remove 12v battery upper tie down strap to AC compressor bracket.
NOTE:
1x bolt, 10mm, 5 Nm, Lift battery tie down strap up and remove it from rear tie down hook strap.
 Courtesy of TESLA, INC.
|

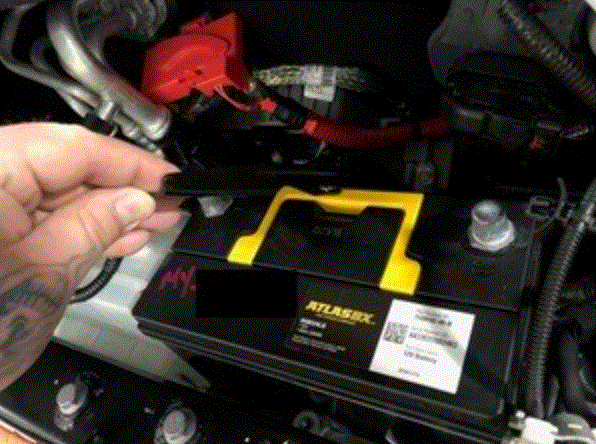

- Remove battery upper tie down strap.
NOTE:
Lift battery tie down strap up and remove it from the rear tie down hook strap.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

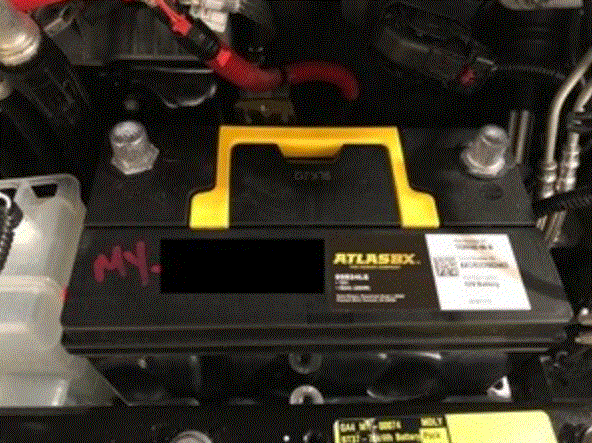

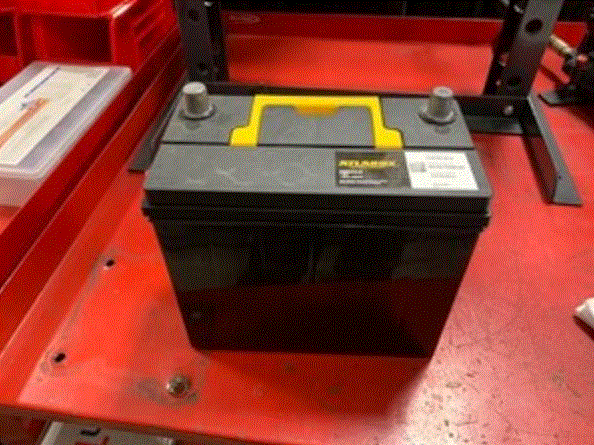

- Remove 12V battery from vehicle.
 Courtesy of TESLA, INC.
|

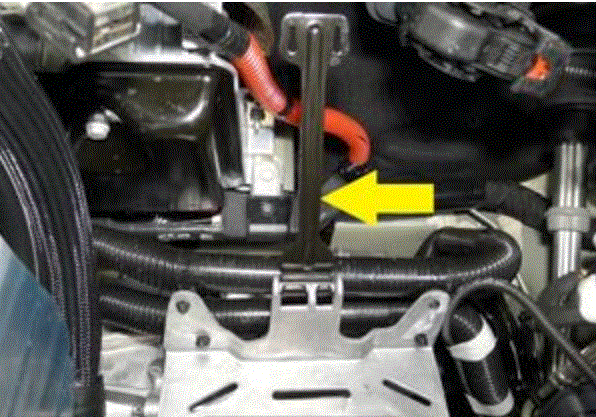

- Remove rear battery tie down strap.
NOTE:
Rotate forward to disengage.
 Courtesy of TESLA, INC.
|

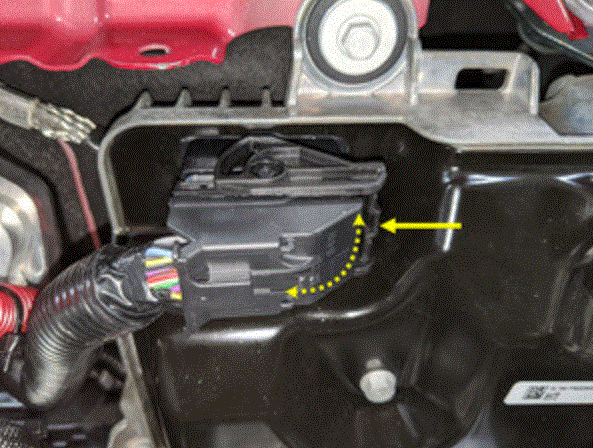

- Disconnect thermal sub-harness from front controller.
NOTE:
1x connector, Depress locking tab and rotate to release.
 Courtesy of TESLA, INC.
|

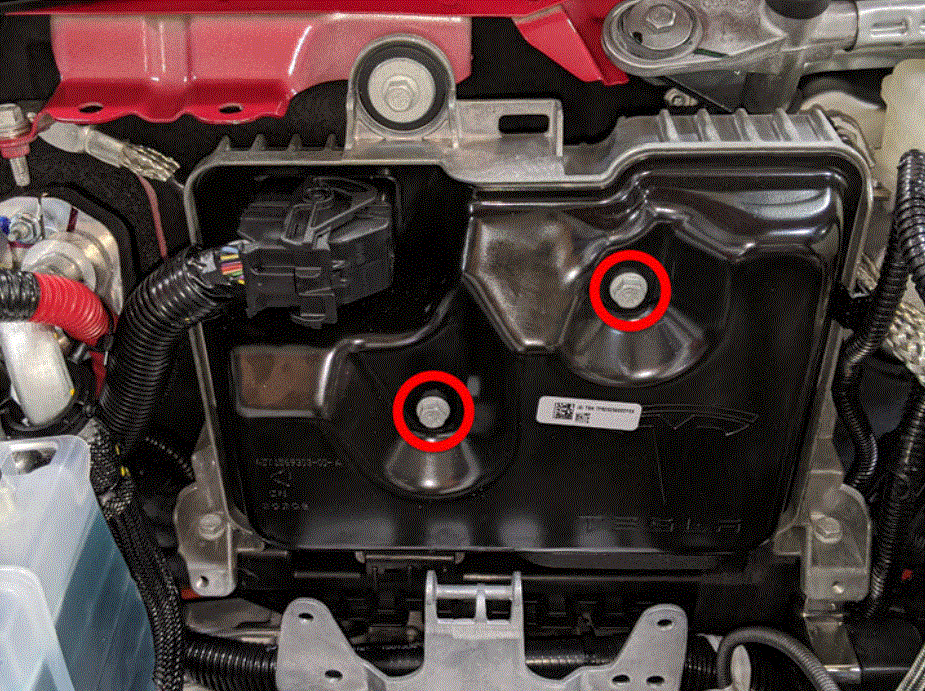

- Remove bolts securing front controller shield assembly and remove from vehicle.
NOTE:
2x bolts, 10mm, 8.5 Nm
 Courtesy of TESLA, INC.
|
