Connector End View - X092 (Fremont: 07/01/2017 - 07/10/2018)
Tesla Part Number 1078969-00-A
Connector AMP 1-1718644-1
Color BK

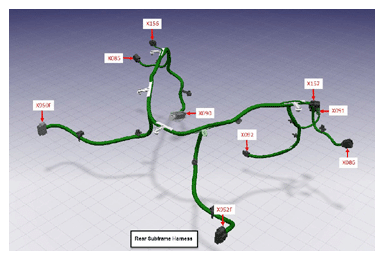

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452671-1 | 1.2x0.6FS | RD | 1.00 | AMP | 967067-1 | X952F | 10 |
| 2 | AMP | 2141970-1 | 1.2x0.6FS | YE | 0.13 | X090 | 10 | ||
| 3 | AMP | 7-1452671-1 | 1.2x0.6FS | BK | 1.00 | AMP | 967067-1 | X950F | 12 |
