Connector End View - X193 (Fremont: 07/01/2017 - 07/10/2018)

Tesla Part Number  1078969-00-A

Connector  AMP 1-1718644-1

Color  BK

Connector Location:

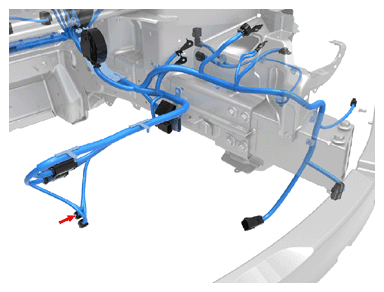

Fig 1: Connector Component Location - X193 (Fremont: 07/01/2017 - 07/10/2018)
G16613578Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X193 (Fremont: 07/01/2017 - 07/10/2018)
G16613579Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 AMP 7-1452665-1 1.2x0.6FS BN 0.35 AMP 967067-2 X013 33
2 AMP 2141970-1 1.2x0.6FS YE 0.13 AMP 967067-2
3 AMP 2141970-1 1.2x0.6FS BU 0.13 AMP 967067-2
