Connector End View - X492A (Fremont: 07/01/2017 - 07/10/2018)
Tesla Part Number 1086373-00-A
Connector AMP 2177587-1
Color BK

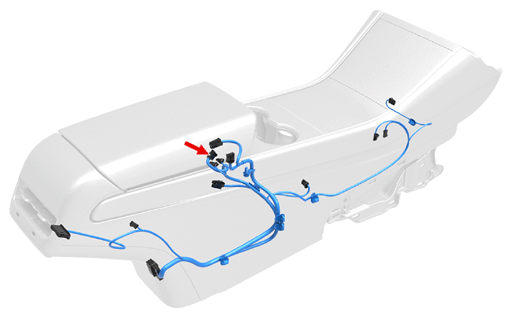

Connector Location:
Connector Pinout:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1-1703930-1 | 0.50x0.40F | YE | 0.13 | X930M | 4 | ||
| 2 | AMP | 2-1703930-1 | 0.50x0.40F | BK | 0.35 | ||||
| 3 | AMP | 1-1703930-1 | 0.50x0.40F | GN | 0.13 | X930M | 13 | ||
| 4 | AMP | 1-1703930-1 | 0.50x0.40F | VT | 0.13 | X930M | 14 | ||
| 5 | AMP | 1-1703930-1 | 0.50x0.40F | WH | 0.13 | X930M | 19 | ||
| 6 | AMP | 1-1703930-1 | 0.50x0.40F | YE | 0.13 | X930M | 18 | ||
| 7 | AMP | 1-1703930-1 | 0.50x0.40F | WH | 0.13 | X930M | 9 | ||
| 8 | AMP | 1-1703930-1 | 0.50x0.40F | BU | 0.13 | X930M | 10 | ||
| 9 | AMP | 1-1703930-1 | 0.50x0.40F | GN | 0.13 | X930M | 16 | ||
| 10 | AMP | 1-1703930-1 | 0.50x0.40F | BU | 0.13 | X930M | 15 | ||
| 11 | AMP | 1-1703930-1 | 0.50x0.40F | BN | 0.13 | X930M | 5 | ||
| 12 | AMP | 1-1703930-1 | 0.50x0.40F | GY | 0.13 | X930M | 6 |
