Connector End View - X596 (Fremont: 07/01/2017 - 07/10/2018)

Tesla Part Number 1015004-01-B

Connector DELPHI 13649799

Color WH

Connector Location:

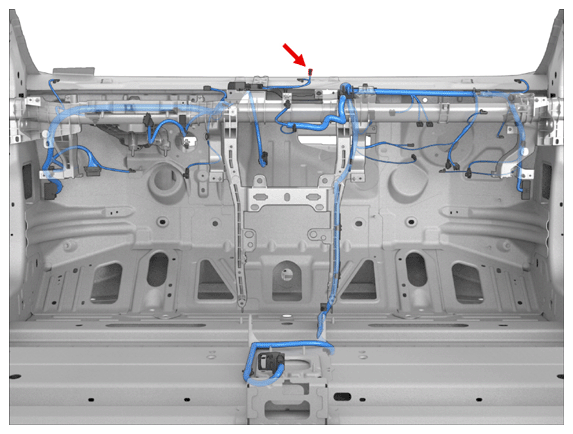

Fig 1: Connector Component Location - X596 (Fremont: 07/01/2017 - 07/10/2018)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X596 (Fremont: 07/01/2017 - 07/10/2018)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	5-963715-1	0.63x0.63F	RD	0.75
2	AMP	5-963715-1	0.63x0.63F	BU	0.75
